Scope
These instructions cover the Automation kit for convert-
ing the CutMaster® 52, 82, 102 and 152 manual and mech-
anized systems for Automation Cutting. Installation and
service of this equipment is restricted to properly trained
personnel; unqualified personnel are strictly cautioned
against attempting repairs or adjustments not covered in
this manual, at the risk of voiding the Warranty.
Read these instructions thoroughly. A complete under-
standing of the characteristics and capabilities of this
equipment will assure the dependable operation for
which it was designed.
General Description
The Automation Kit is for use with Thermal Dynamics
Manual and Mechanized Cutmaster® Plasma Cutting
Systems. Do not use this device with any other equip-
ment.
The Automation kit allows for the use of the CutMaster®
power supply for automated and mechanical cutting..
Included Items
The following items are included in this kit:
• Automation Harness (1)
• Harness Mounting Screws (2)
• Snap in Plug (1)
• Instructions
Installation Procedure
WARNING
Disconnect primary power at the source and bleed
down the system before starting the procedure.
Manual 0-5059 Rev AB
Automation Kit No. 9-9385
Installation Instructions
© 2008 Thermadyne Corp.

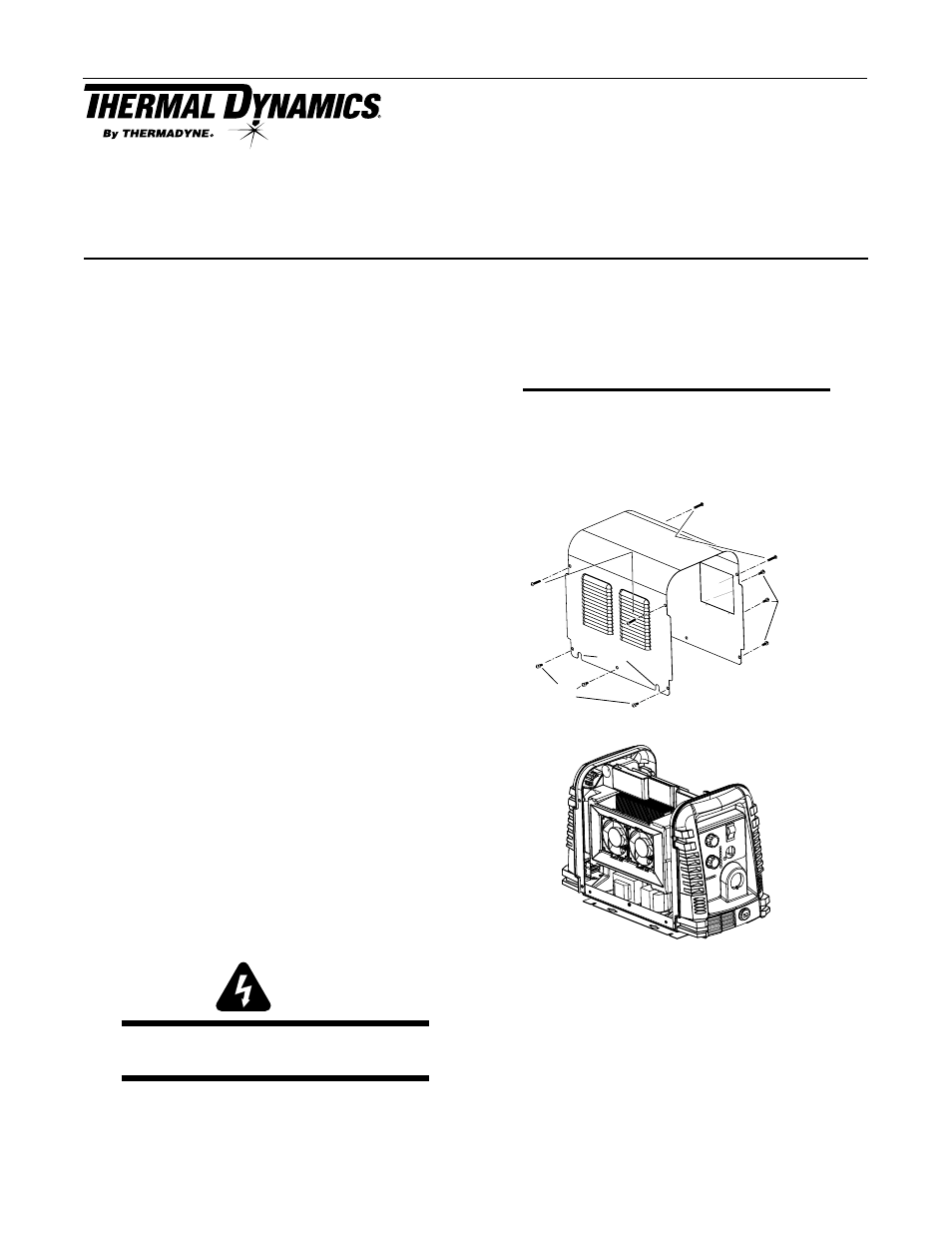

A. Cover Removal
1. Remove the upper and lower screws which secure
the cover to the main assembly. Do not loosen the
lower screws inside the cut out slots in the bottom
of the cover.
Note
The upper screws and lower screws are not the
same. Do not mix them. The upper screws are
for threading into the plastic of the front and rear
panels. DO NOT use the finer threaded lower
screws for this.
Upper
Screws
Lower
Screws
Lower
Screws
Art # A-08317
Slots
2. Carefully pull the Cover up and away from the
unit.
