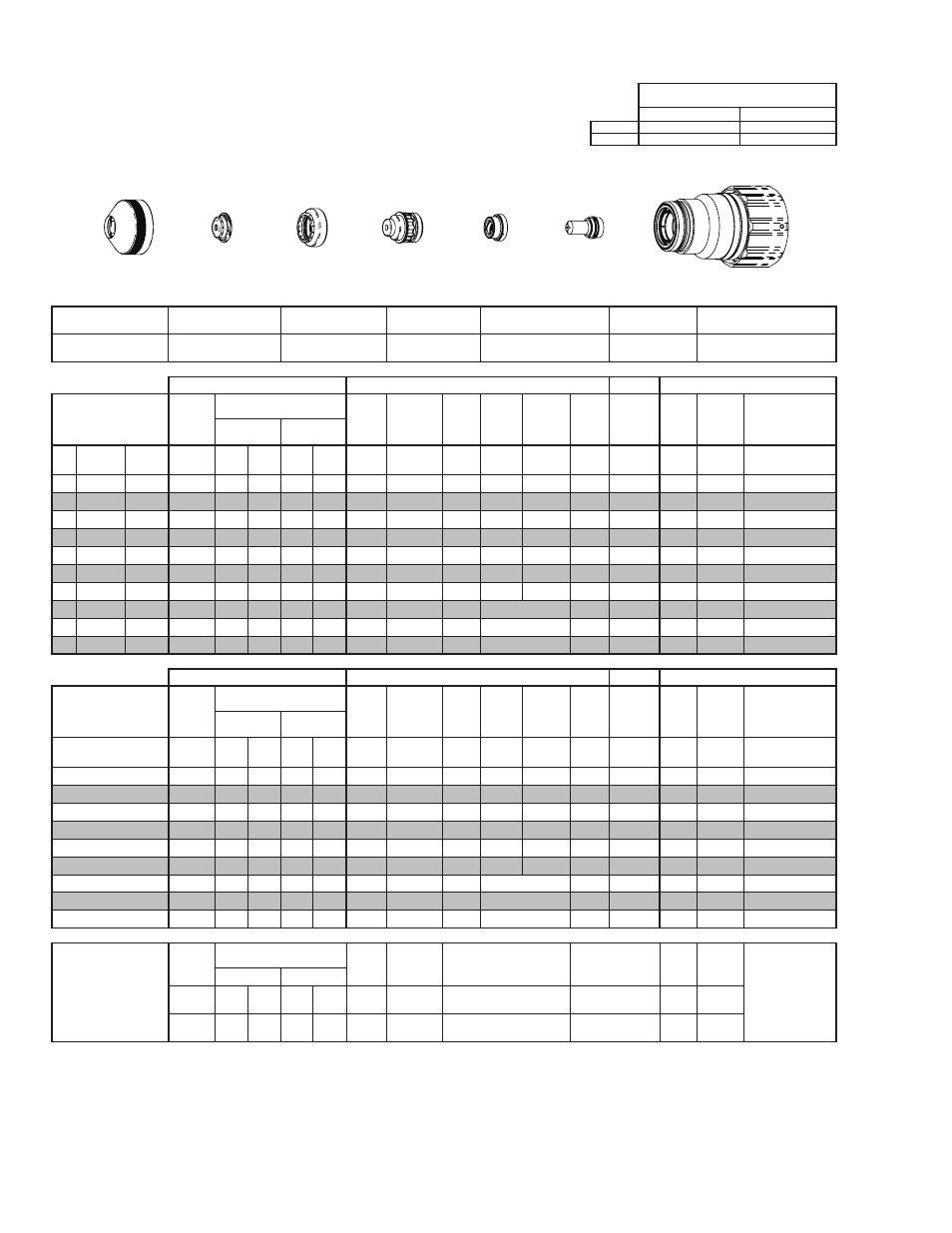

TORCH DATA for Ultra-Cut
8-54
Manual 0-4828
Rev BA
Stainless Steel
Flow Rates
300A
N₂ (SLPM / SCFH)
H₂O (GPH / LPH)
Preflow
23 / 48
8 / 30
N₂ Plasma / H₂O Shield
Cutflow
63 / 134
8 / 30
Shield Retainer
Shield Cap
Shield Gas
Distributor
Tip
Plasma Gas Distributor
Electrode
Cartridge
21-1015
21-1046
21-1284
21-1066
21-1043
21-1089
21-1022
GCM-2010
SC-3000 Torch Height Control (THC)
Basic THC
CNC Control
Material
Thickness
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Arc
Voltage Cut Height
THC
Pierce
Delay
Pierce
Ignition
Height
Elevation
Height
Control
Delay
Pierce
Height
without
Elevation
Travel
Speed
CNC
Motion
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
ga
(in)
inch
(psi)
Ball (psi) Ball (psi)* (Volts) (in) ±0.005 (sec)
(in)
(in)
(sec)
(in)
(ipm)
(sec)
(in)
-
3/8
0.375
20
120 100
8
55
150
0.150
0.3
0.250 0.200
0.2
0.350
140
0.3
0.144
-
1/2
0.500
20
120 100
8
55
159
0.150
0.5
0.250 0.200
0.2
0.350
100
0.5
0.154
-
5/8
0.625
20
120 100
8
55
158
0.150
0.8
0.250 0.200
0.2
0.350
75
0.6
0.153
-
3/4
0.750
20
120 100
8
55
166
0.200
0.9
0.400 0.300
0.2
0.500
55
0.7
0.173
-
7/8
0.875
20
120 100
8
55
180
0.300
1.8
0.400 0.300
0.2
0.500
45
1.1
0.210
-
1
1.000
20
120 100
8
55
182
0.300
2.1
0.400 0.300
0.2
0.500
40
1.3
0.210
-
1 1/4 1.250
20
120 100
8
55
196
0.350
3.5
0.400 0.300
0.2
0.500
30
2.0
0.230
-
1 1/2 1.500
20
120 100
8
55
198
0.350
1.0
Edge Start
0.2
Edge
25
1.0
0.232
-
1 3/4 1.750
20
120 100
8
55
198
0.350
1.0
Edge Start
0.2
Edge
18
1.0
0.237
-
2
2.000
20
120 100
8
55
205
0.350
1.0
Edge Start
0.2
Edge
12
1.0
0.253
GCM-2010
SC-3000 Torch Height Control (THC)
Basic THC
CNC Control
Material
Thickness
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Arc
Voltage Cut Height
THC
Pierce
Delay
Pierce
Ignition
Height
Elevation
Height
Control
Delay
Pierce
Height
without
Elevation
Travel
Speed
CNC
Motion
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
(mm)
(Bar)
Ball (Bar) Ball (Bar)* (Volts) (mm) ±0.1 (sec)
(mm)
(mm)
(sec)
(mm)
(mm/
min)
(sec)
(mm)
10
1.4
120 6.9
8
3.8
151
3.8
0.3
6.4
5.1
0.2
8.9
3400
0.3
3.7
12
1.4
120 6.9
8
3.8
157
3.8
0.5
6.4
5.1
0.2
8.9
2760
0.5
3.9
15
1.4
120 6.9
8
3.8
158
3.8
0.7
6.4
5.1
0.2
8.9
2080
0.6
3.9
20
1.4
120 6.9
8
3.8
170
5.8
1.2
10.2
7.6
0.2
12.7
1320
0.8
4.7
25
1.4
120 6.9
8
3.8
182
7.6
2.1
10.2
7.6
0.2
12.7
1030
1.3
5.3
30
1.4
120 6.9
8
3.8
192
8.5
3.1
10.2
7.6
0.2
12.7
830
1.8
5.7
35
1.4
120 6.9
8
3.8
198
8.9
1.0
Edge Start
0.2
Edge
720
1.0
5.8
40
1.4
120 6.9
8
3.8
198
8.9
1.0
Edge Start
0.2
Edge
580
1.0
5.9
50
1.4
120 6.9
8
3.8
204
8.9
1.0
Edge Start
0.2
Edge
320
1.0
6.4
Marking
Pre Flow
Pressure
(N₂)
Marking Flow Rates /
Pressures
Arc
Voltage
Marking
Height
Pierce Ignition Height
THC and CNC
Delay
Control
Delay
Travel
Speed
Marking quality
degrades as
thickness
decreases.
24A Arc Current
Plasma (N₂)
Shield (N₂)
Burn-through may
happen for thicknesses
< 1/16” (0.063”) /
1.6 mm.
(psi) /
(Bar)
Ball (psi) /
(Bar)
Ball (psi) /
(Bar) (Volts)
(in) ±0.005 /
(mm) ±0.1
(in) ±0.005 / (mm) ±0.1
(sec)
(sec)
(ipm) /
(mm/ min)
15 / 1.0
80
60 /
4.1
NA
90 /
6.2
115 0.120 / 3.0
0.120 / 3.0
0
0.3
300 /
7620
BOLD TYPE indicates maximum piercing parameters. BOLD ITALIC indicates edge starts only.
* Pressure of the water supply line should be regulated by customer pressure regulator.
Note 1: Ohmic height sensing is not recommended with water shield. Water on the plate interferes electrically with the ohmic sensing circuit.
Note 2: Water source used for shield must be demineralized.
