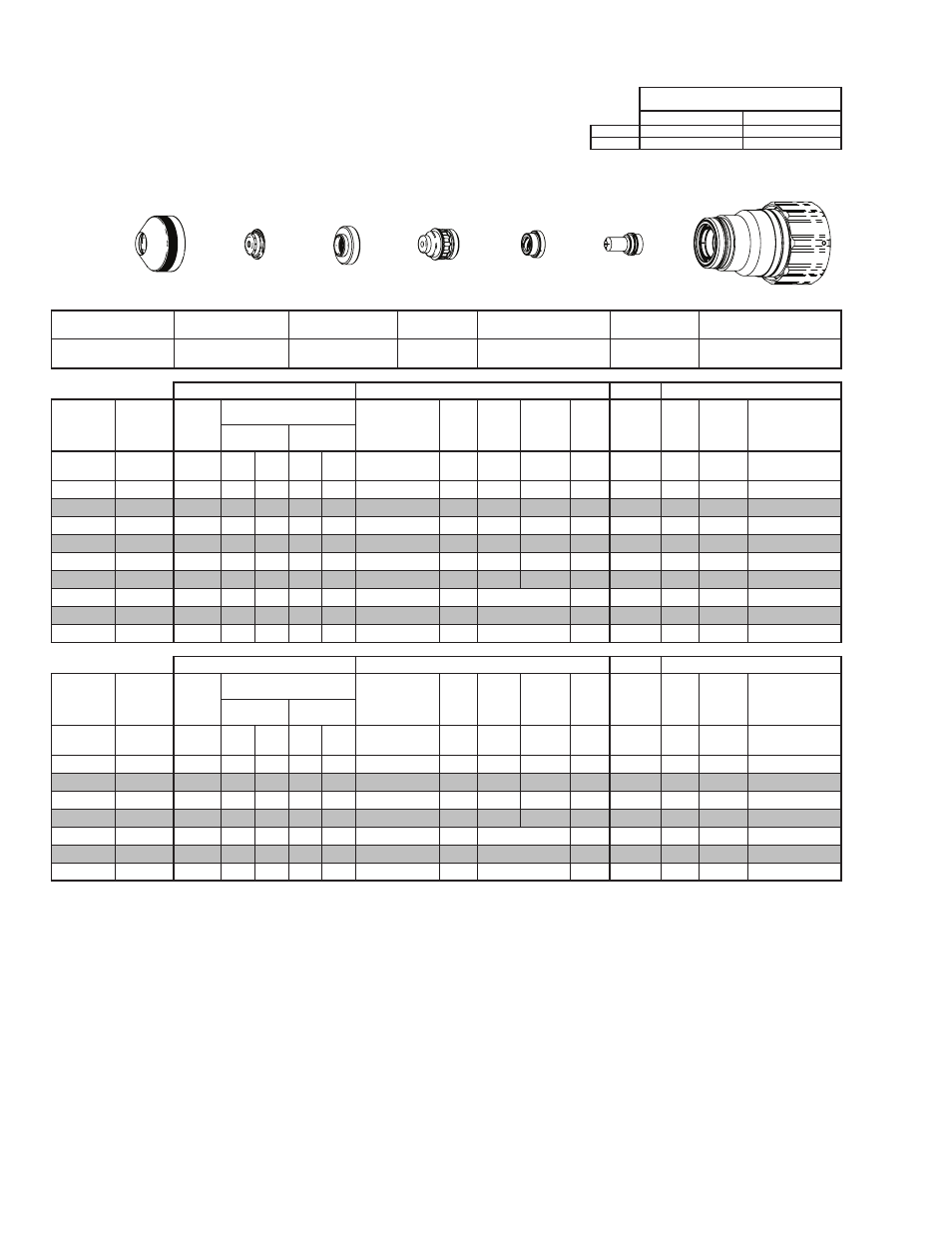

TORCH DATA for Ultra-Cut
8-62
Manual 0-4828
Rev BA
Aluminum
Flow Rates
300A Bevel Cut
N₂ (SLPM / SCFH)
H₂O (GPH / LPH)
Preflow
23 / 48
8 / 30
N₂ Plasma / H₂O Shield
Cutflow
63 / 134
8 / 30
Shield Retainer
Shield Cap
Shield Gas
Distributor
Tip
Plasma Gas Distributor
Electrode
Cartridge
21-1015
21-1046
21-1284
21-1066
21-1043
21-1089
21-1022
GCM-2010
SC-3000 Torch Height Control (THC)
Basic THC
CNC Control
Effective
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Effective Cut
Height
THC
Pierce
Delay
Pierce
Ignition
Height
Elevation
Height
Control
Delay
Pierce
Height
without
Elevation
Travel
Speed
CNC
Motion
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
inch
(in)
(psi)
Ball (psi) Ball (psi)*
(in)
(sec)
(in)
(in)
(sec)
(in)
(ipm)
(sec)
(in)
0.500
0.080
20
120 100
8
55
0.200 - 0.450 0.4
0.250 0.150
0.2
0.300
120
0.3
0.161
0.625
0.080
20
120 100
8
55
0.200 - 0.450 0.5
0.250 0.150
0.2
0.300
100
0.4
0.165
0.750
0.080
20
120 100
8
55
0.250 - 0.450 0.9
0.400 0.300
0.2
0.500
80
0.5
0.174
0.875
0.080
20
120 100
8
55
0.250 - 0.450 1.0
0.400 0.300
0.2
0.500
70
0.6
0.175
1.000
0.080
20
120 100
8
55
0.250 - 0.450 1.2
0.400 0.300
0.2
0.500
60
0.7
0.190
1.250
0.080
20
120 100
8
55
0.250 - 0.450 2.2
0.400 0.300
0.2
0.500
40
1.2
0.185
1.500
0.080
20
120 100
8
55
0.300 - 0.450 3.5
Edge Start
0.2
Edge
25
1.6
0.190
1.750
0.080
20
120 100
8
55
0.300 - 0.450 0.6
Edge Start
0.2
Edge
15
0.6
0.213
2.000
0.080
20
120 100
8
55
0.300 - 0.450 0.6
Edge Start
0.2
Edge
10
0.6
0.205
GCM-2010
SC-3000 Torch Height Control (THC)
Basic THC
CNC Control
Effective
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Effective Cut
Height
THC
Pierce
Delay
Pierce
Ignition
Height
Elevation
Height
Control
Delay
Pierce
Height
without
Elevation
Travel
Speed
CNC
Motion
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
(mm)
(mm)
(Bar)
Ball (Bar) Ball (Bar)*
(mm)
(sec)
(mm)
(mm)
(sec)
(mm)
(mm/
min)
(sec)
(mm)
15
2.0
1.4
120 6.9
8
3.8
5.1 - 11.4
0.5
6.4
3.8
0.2
7.6
2680
0.4
4.2
20
2.0
1.4
120 6.9
8
3.8
6.4 - 11.4
0.9
10.2
7.6
0.2
12.7
1960
0.5
4.4
25
2.0
1.4
120 6.9
8
3.8
6.4 - 11.4
1.2
10.2
7.6
0.2
12.7
1560
0.7
4.8
30
2.0
1.4
120 6.9
8
3.8
6.4 - 11.4
1.9
10.2
7.6
0.2
12.7
1160
1.1
4.7
35
2.0
1.4
120 6.9
8
3.8
7.6 - 11.4
3.4
Edge Start
0.2
Edge
760
1.6
4.5
40
2.0
1.4
120 6.9
8
3.8
7.6 - 11.4
2.6
Edge Start
0.2
Edge
560
1.3
5.0
50
2.0
1.4
120 6.9
8
3.8
7.6 - 11.4
0.6
Edge Start
0.2
Edge
270
0.6
5.2
BOLD TYPE indicates maximum piercing parameters. BOLD ITALIC indicates edge starts only.
* Pressure of the water supply line should be regulated by customer pressure regulator.
Note 1: Ohmic height sensing is not recommended with water shield. Water on the plate interferes electrically with the ohmic sensing circuit.
Note 2: Water source used for shield must be demineralized.
Cartridge
Electrode
Shield
Shield Gas
Distributor
Tip
Plasma Gas
Distributor
Shield Retainer
Art # A-08552
This Art Is For Reference ONLY
