February 20, 2004 1 Manual 0-4616
Manual 0-4616
Torch Adapter Kit
No. 7-3482
Installation Instructions
© 2003 by Thermal Dynamics Corp., Printed in USA
82 Benning Street, West Lebanon, NH 03784 USA
(603) 298-5711 • www.thermal-dynamics.com
General Information
This kit connects the Thermal Dynamics Model SL100
Hand Torch with O2B fittings to PlazMaster 80 Power
Supplies. Do not use this kit for any other application.
Read these instructions before starting the installation pro-
cedure. Keep these instructions for future reference.
CAUTION
Only a qualified technician should perform this proce-
dure.
Parts Supplied
The kit includes:
• Adapter Plug
• Through - Hole Protector
• Instructions
Procedure
WARNING
Disconnect primary input power at the source be-
fore starting this procedure.

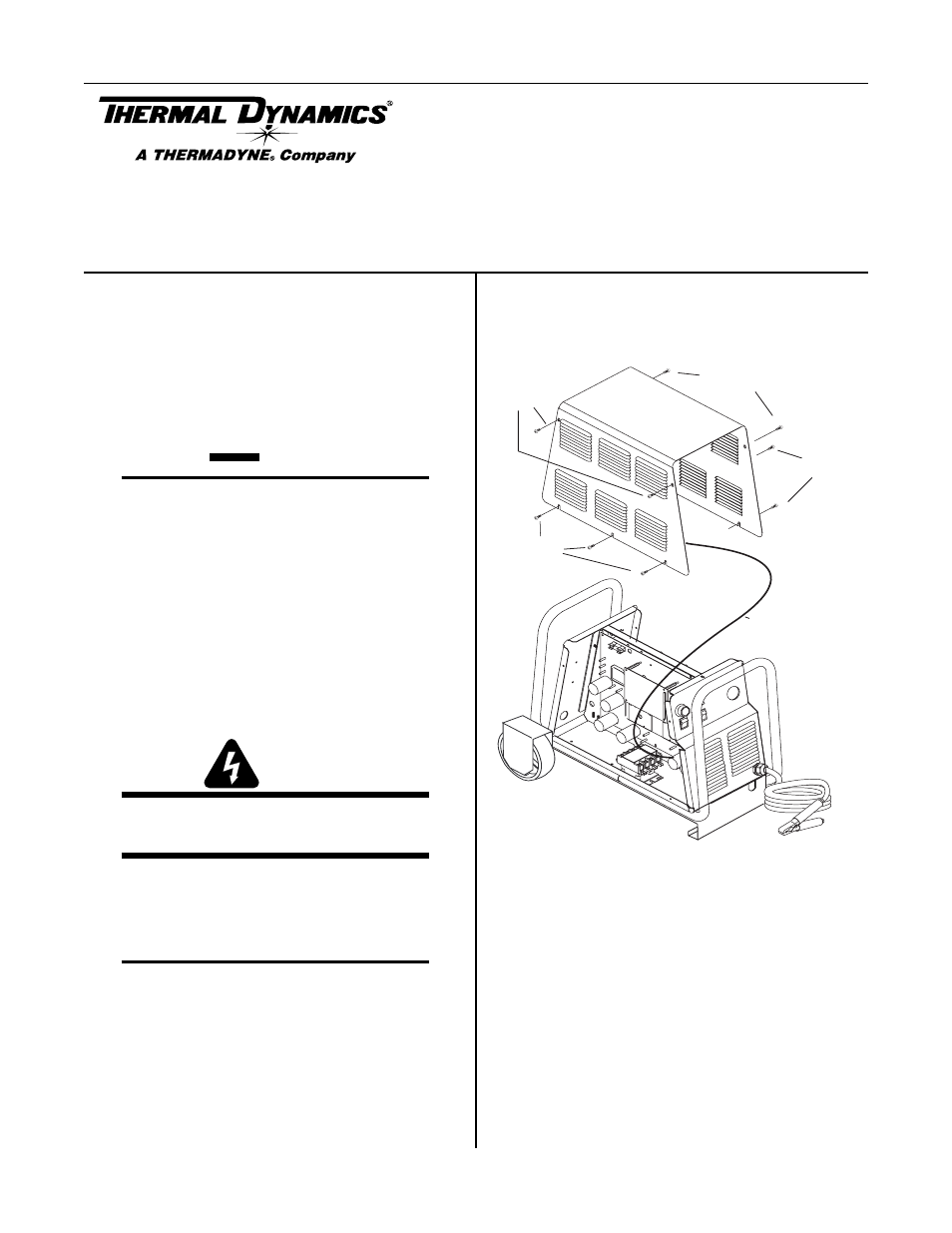

1. Remove the upper screws which secure the cover
to the main assembly.
NOTE
There is a ground wire connection to the inside of
the unit. There is no need to disconnect the ground
wire, unless there is a need for more room to work.
Lower
screws
Upper screws
Ground wire
Lower
screws
Upper
screws
Art # A-03737
2. Loosen, but do not remove, the lower screws, then
carefully pull the Cover up and away from the
unit.
