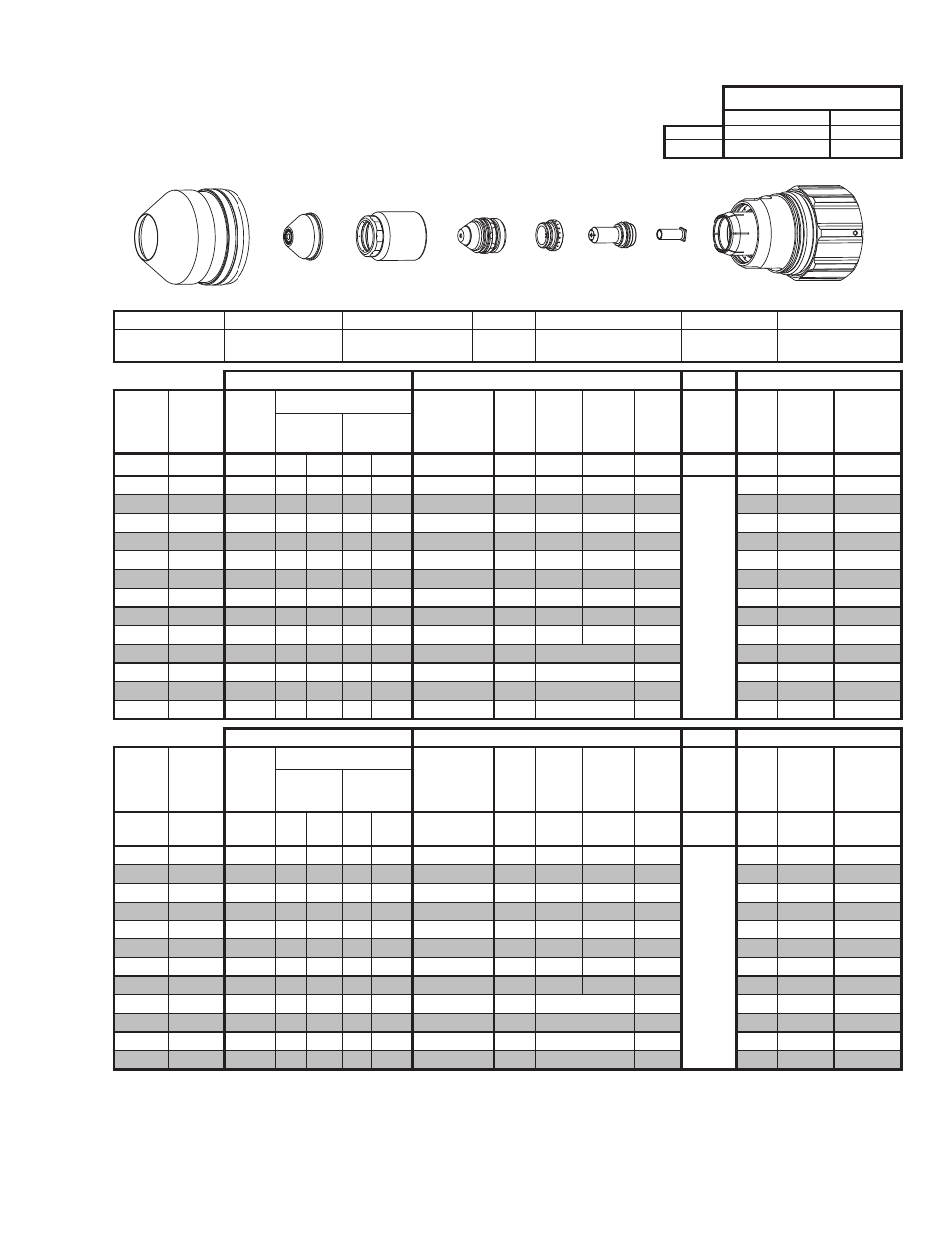

Manual 0-4828 Rev BA 8-73 TORCH DATA for Ultra-Cut
8.08 Robotic and Bevel Cutting 400 Amp
Mild Steel
400A Bevel Cut
O₂ Plasma / Air Shield
Flow Rates (SLPM / SCFH)
O₂ Air
Preflow - / - 232 / 491
Cutflow 33 / 70 203 / 430
Shield Cup Shield Cap Shield Gas Distributor Tip Plasma Gas Distributor Electrode Cartridge
21-1305 21-1304 21-1310 21-1309 21-1042
21-1308
9-7921
21-1300
GCM-2010 SC-3000 Torch Height Control (THC) Basic THC CNC Control
Effective
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(Air)
Cut Flow Rates / Pressures
Effective Cut
Height
THC
Pierce
Delay
Pierce
Ignition
Height
Elevation
Height
Control
Delay
Pierce
Height
without
Elevation
Travel
Speed
CNC
Motion
Delay
Max Kerf
Width
@ Rec. Speed Plasma (O₂) Shield (Air)
inch (in) (psi) Ball (psi) Ball (psi) (in) (sec) (in) (in) (sec) (in) (ipm) (sec) (in)
0.500 0.080 15 80 90 - 80 0.200 - 0.600 0.3 0.400 0.200 0.2
Not R
ec
ommended without
Ele
va
tion Heigh
t
150 0.2 0.195
0.625 0.080 15 80 90 - 80 0.200 - 0.600 0.4 0.400 0.300 0.2 130 0.3 0.200
0.750 0.080 15 80 90 - 80 0.200 - 0.600 0.6 0.400 0.300 0.2 115 0.8 0.215
0.875 0.080 15 80 90 - 80 0.200 - 0.600 0.9 0.400 0.500 0.2 100 0.9 0.200
1.000 0.080 15 80 90 - 80 0.200 - 0.600 1.1 0.400 0.550 0.2 80 0.9 0.200
1.250 0.080 15 80 90 - 80 0.200 - 0.600 1.5 0.400 0.650 0.2 60 1.3 0.220
1.500 0.080 15 80 90 - 80 0.200 - 0.600 4.0 0.450 0.600 0.2 45 2.5 0.230
1.750 0.080 15 80 90 - 80 0.200 - 0.600 4.5 0.450 0.650 0.2 40 4.0 0.225
2.000 0.080 15 80 90 - 80 0.200 - 0.600 7.0 0.450 0.750 0.2 30 6.0 0.225
2.250 0.080 15 80 90 - 80 0.200 - 0.600 3.5 Edge Start 0.2 25 3.5 0.235
2.500 0.080 15 80 90 - 80 0.200 - 0.600 3.0 Edge Start 0.2 15 3.0 0.235
3.000 0.080 15 80 90 - 80 0.200 - 0.600 3.0 Edge Start 0.2 10 3.0 0.300
3.500 0.080 15 80 90 - 80 0.200 - 0.600 3.0 Edge Start 0.2 4 3.0 0.360
GCM-2010 SC-3000 Torch Height Control (THC) Basic THC CNC Control
Effective
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(Air)
Cut Flow Rates / Pressures
Effective Cut
Height
THC
Pierce
Delay
Pierce
Ignition
Height
Elevation
Height
Control
Delay
Pierce
Height
without
Elevation
Travel
Speed
CNC
Motion
Delay
Max Kerf
Width
@ Rec. Speed Plasma (O₂) Shield (Air)
(mm) (mm) (Bar) Ball (Bar) Ball (Bar) (mm) (sec) (mm) (mm) (sec) (mm)
(mm/
min)
(sec) (mm)
12 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 0.3 10.2 4.5 0.2
Not R
ec
ommended without
Ele
va
tion Heigh
t
3920 0.2 4.9
15 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 0.4 10.2 6.9 0.2 3440 0.3 5.0
20 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 0.7 10.2 9.1 0.2 2810 0.8 5.3
25 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 1.1 10.2 13.8 0.2 2100 0.9 5.1
30 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 1.4 10.2 15.8 0.2 1660 1.2 5.4
35 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 2.8 10.8 15.9 0.2 1330 1.9 5.7
40 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 4.1 11.4 15.6 0.2 1110 2.9 5.8
50 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 6.7 11.4 18.7 0.2 790 5.7 5.7
60 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 3.3 Edge Start 0.2 520 3.3 6.0
70 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 3.0 Edge Start 0.2 320 3.0 6.8
80 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 3.0 Edge Start 0.2 210 3.0 8.1
90 2.0 1.0 80 6.2 - 5.5 5.1 - 15.2 3.0 Edge Start 0.2 90 3.0 9.3
BOLD TYPE indicates maximum piercing parameters. BOLD ITALIC indicates edge starts only.
BOLD TYPE indicates maximum piercing parameters.
* Pressure of the water supply line should be regulated by customer pressure regulator.
Note 1: Ohmic height sensing is not recommended with water shield. Water on the plate interferes electrically with the ohmic sensing circuit.
Note 2: Water source used for shield must be demineralized.
THC Pierce Delay values shown are the minimum values. It is recommended that this value should be increased depending on the application.
This Art Is For Reference Only
Art# A-10270_AB
Shield Cup
Shield Cap
Shield Gas
Distributor Tip
Gas
Distributor Electrode Tube
Cartridge Assembly
