© 1998 Thermal Dynamics Corp., Printed in USA Installation Instructions 5/21/99
Manual 0-2770
RPT Adapter Kit
Catalog # 7-3438
Installation Instructions
General Information
This Replacement Torch Adapter Kit is to be used to connect the Thermal Dynamics Plasma RPT Series Cutting Torch to the
following equipment:
CEBORA 50
NU-TECSYS OMNICUT 375
Parts Supplied
The following parts are included in this kit:
• Control Connector Wires with Connectors (1 ea)
• Adapter Fitting (1 ea)
Installation
Install the Adapter Kit per the following procedure:
1. Turn OFF the power supply.
2. Disconnect the main input power to the power supply.
3. Remove the existing torch from the power supply, removing
covers as required.
4. Place the Adapter Fitting provided into the Power Supply
torch power cable fitting (-) and tighten securely.
5. Connect the pilot wire (+) from the replacement torch to the
Power Supply and tighten securely
6. Connect the Negative/Plasma Lead from the replacement torch
to the Adapter Fitting. Slide the protective boot over the lead
connection.
7. Connect the Control Connector Wires (see NOTE), with two
connectors, to the two mating connectors on the replacement
torch leads.
8. Connect the fastons of the Control Connector Wires to the
Power Supply.
9. Reinstall any covers removed (see WARNING).
10. Install the proper torch consumables for the Power Supply amperage.
11. Reconnect main input power to the Power Supply and turn the unit ON.
12. Set air pressure to 60 - 70 psi (4.1 - 4.8 bar).
13. Test torch for proper operation.
NOTE
For Mechanized Systems refer to the
Torch Control Cable Wiring Diagram
on the last page of this Manual.
WARNING
Make sure that the Control Connector Wires DO
NOT contact the Adapter Fitting after all leads
are connected.

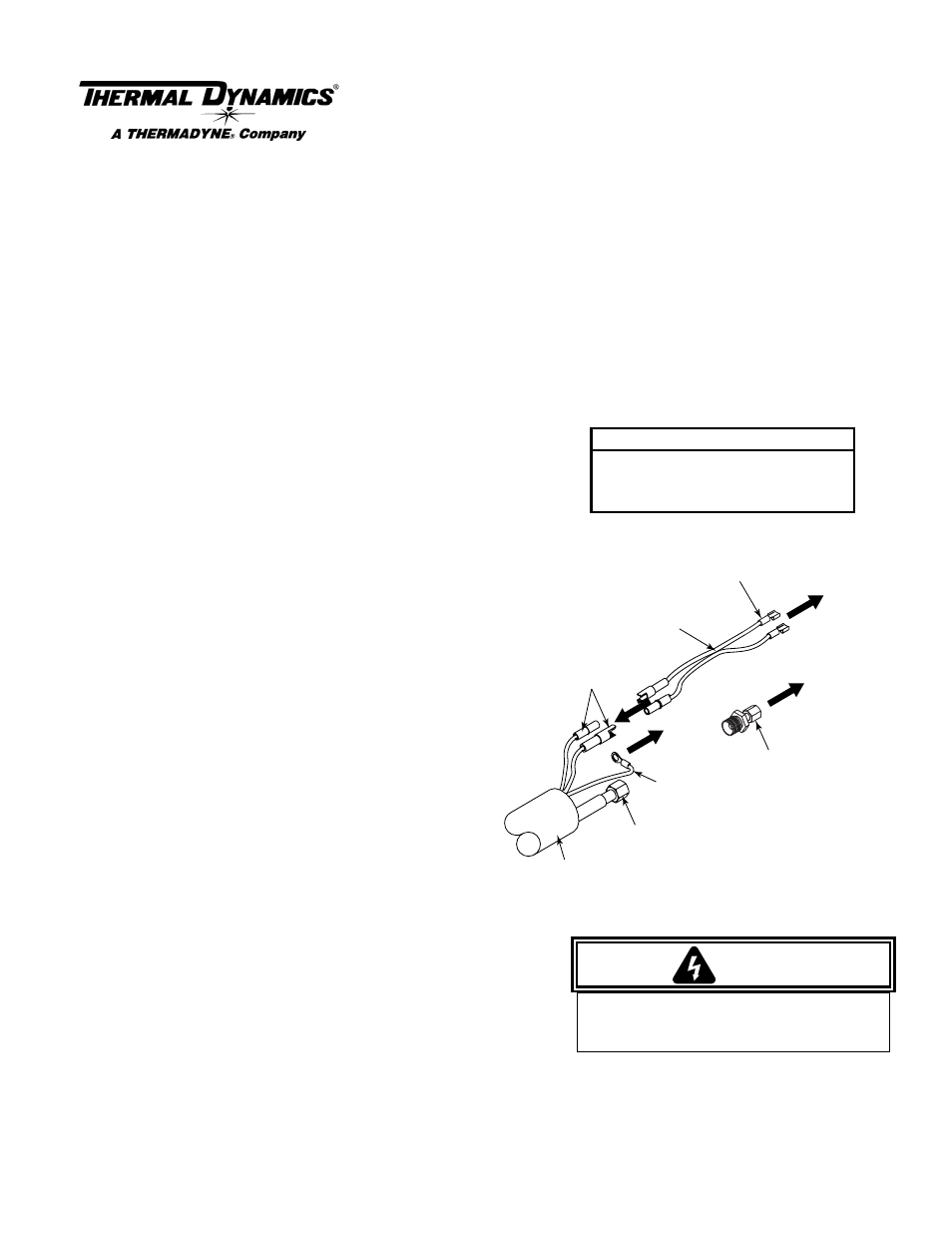

Torch Control
Connectors
Pilot Lead
Torch Lead Assembly
Negative/Plasma Lead
A-02498
Adapter Fitting
Control Connector
Wires with Connectors
To
Po
wer Supply
(-) Fitting
To
Po
wer Supply
Control Connector
To
Po
wer Supply
Pilot Connector
Fastons
