2 Installation

IC Metrodata for Win95

2.5 Interface

configuration

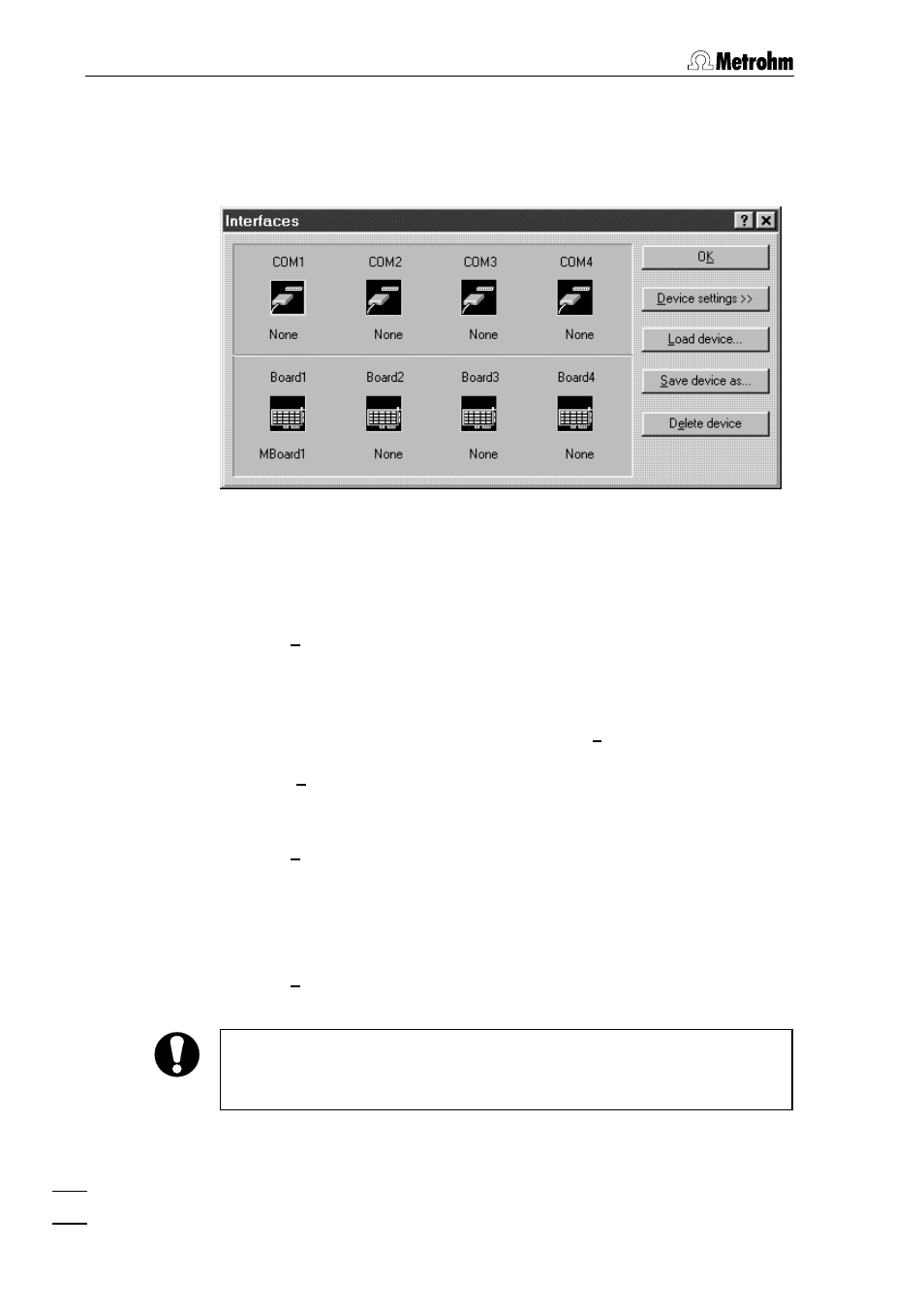

Open the menu item

Options

Interfaces

for configuration of the inter-

faces to the IC system.

1.714.0310 PC Board
The

MBoard1

driver for operation of the first PC board

Board1

with 2

channels is installed automatically during the software setup.
If a second PC board is installed, select

Board2

with the mouse and

click the

Load device

button. Select the file

MBoard2.dew

for operation of

second PC board with 2 channels and click the

button.

1.714.0210 PC Board
Select

Board1

with the mouse and click the

Delete device

button. Con-

firm the question

Do you really mean do delete device Mboard1?

with

Yes

Click the

Load device

button, select the

m732b1.dew

file for operation of

the first PC board with 2 channels and click the

button.

If a second PC board is installed, select

Board2

with the mouse and

click the

Load device

button. Select the file

m732b2.dew

for operation of

second PC board with 2 channels and click the

button.

1.714.0010 CSI Interface
Select one of the serial interfaces

COM1

…

COM4

with the mouse and

click the

Load device

button. Select the

csi.dew

file for operation of the

CSI interface with 1 channel.

The

csi*.mtw

methods are configured for the

COM2

interface. If you

use a different serial interface, the

Acquisition

parameter under

Method

/ Acquisition Setup

has to be changed accordingly.
