Diode LED RGB Color & LED Wi-fi User Manual
Controller reference guide, Warnings

1
Wi-Fi LED Controller
READ ALL INSTRUCTIONS PRIOR TO INSTALLATION
WARNING!! DO NOT CONNECT THIS PRODUCT DIRECTLY TO 120V AC POWER!
Wi-Fi LED Controller Technical Specifications
Input Voltage
DC12V ~ DC24V Constant Voltage Driver
Output Voltage
DC12V~DC24V
Output Current
Max 3A*3 (3A per channel)
Output Control
Can operate the following DC12V~DC24V LED installations: 1) Dimmable (DIM) Single-Color Installation; 2) Color-Changing RGB
Installation; 3) Color Temperature (CT) Adjustable Installation
Control Distance
Max 328 ft (100 m)
RGB Color Change Mode
32 fixed modes & 8 custom DIY modes
Scene mode
9 custom scenes
Ambient Operating Temperature
-4° ~ 122°F (-20° ~ 54°C)
Dimensions
L5” x W2.8” x H1.75
Weight (G.W.)
10.23oz (290g)
Software Technical Specifications for Mobile Remote
Platform
Android 2.1 & later, iOS 4.3 & later, with Wi-Fi function
Mobility Compatibility
Android (2.2MB), iOS (3.4MB)
Language
English
Other
Free software
POWER INPUT/LED OUTPUT
INDICATOR MANUFACTURER
INTERFACE
SSID CODE
SWITCH
ON/OFF
SCENE

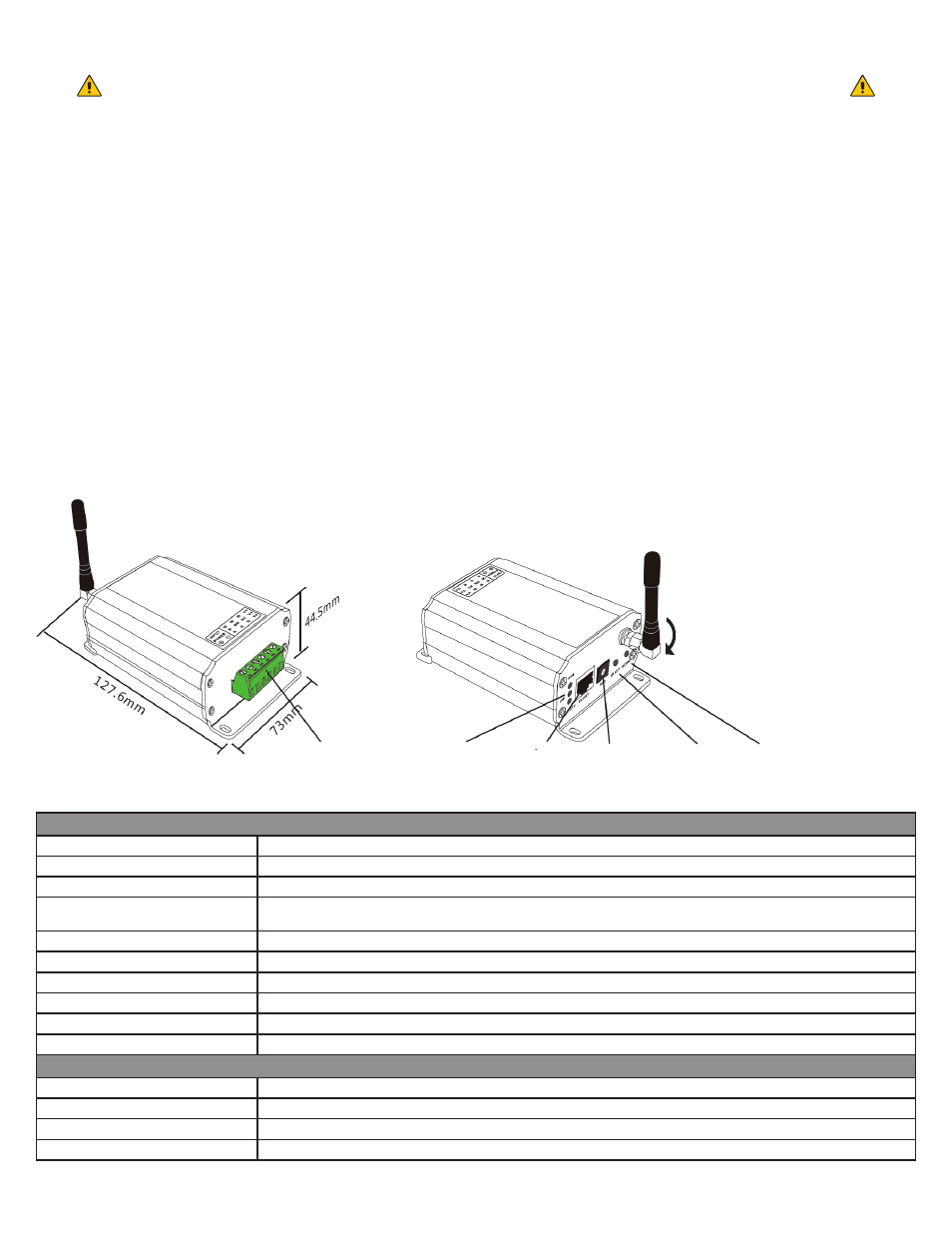

Controller Reference Guide
Installing the Wi-Fi Antenna to
the Wi-Fi LED Controller
1. To install, turn clockwise until secure.
2. To uninstall, turn counterclockwise.
• This product should be installed and serviced by a
qualified electrician.
• This product is rated for indoor installation and is not
protected against moisture. Do not expose this color
controller to direct or indirect moisture.
• Proper heat dissipation will prolong the working lifespan
of this product. Please install in a well-ventilated area.
• Only install recommended LED drivers and fixtures.
Please contact technical support or visit the product page
for compatible products.
• Please ensure the proper size gauge wire is installed.
When choosing wire, factor in voltage drop and
amperage rating. Improper wire gauge installation could
lead to overheating wires, leading to electric shock or fire.
• Do not connect this product directly to 120V AC power.
• Turn off 120V AC power at the main breaker prior to
installation.
• Check all wire connections and polarities before applying
power to avoid any damages to your LED fixtures.
• If an error or fault occurs, see troubleshooting or contact
technical support for assistance.
• The Wi-Fi LED Controller can operate DC12~DC24V
power supplies and LED fixtures. However, 12V LED
fixtures must be matched with a compatible 12V power
supply, and 24V LED fixtures must be matched with a
24V power supply. Never install power supplies and
fixtures of different voltages together.
Warnings
