INSTALLATION GUIDE
1 OF 4
DAZZLE 24 ™ 24V RGBW LED TAPE LIGHT
®

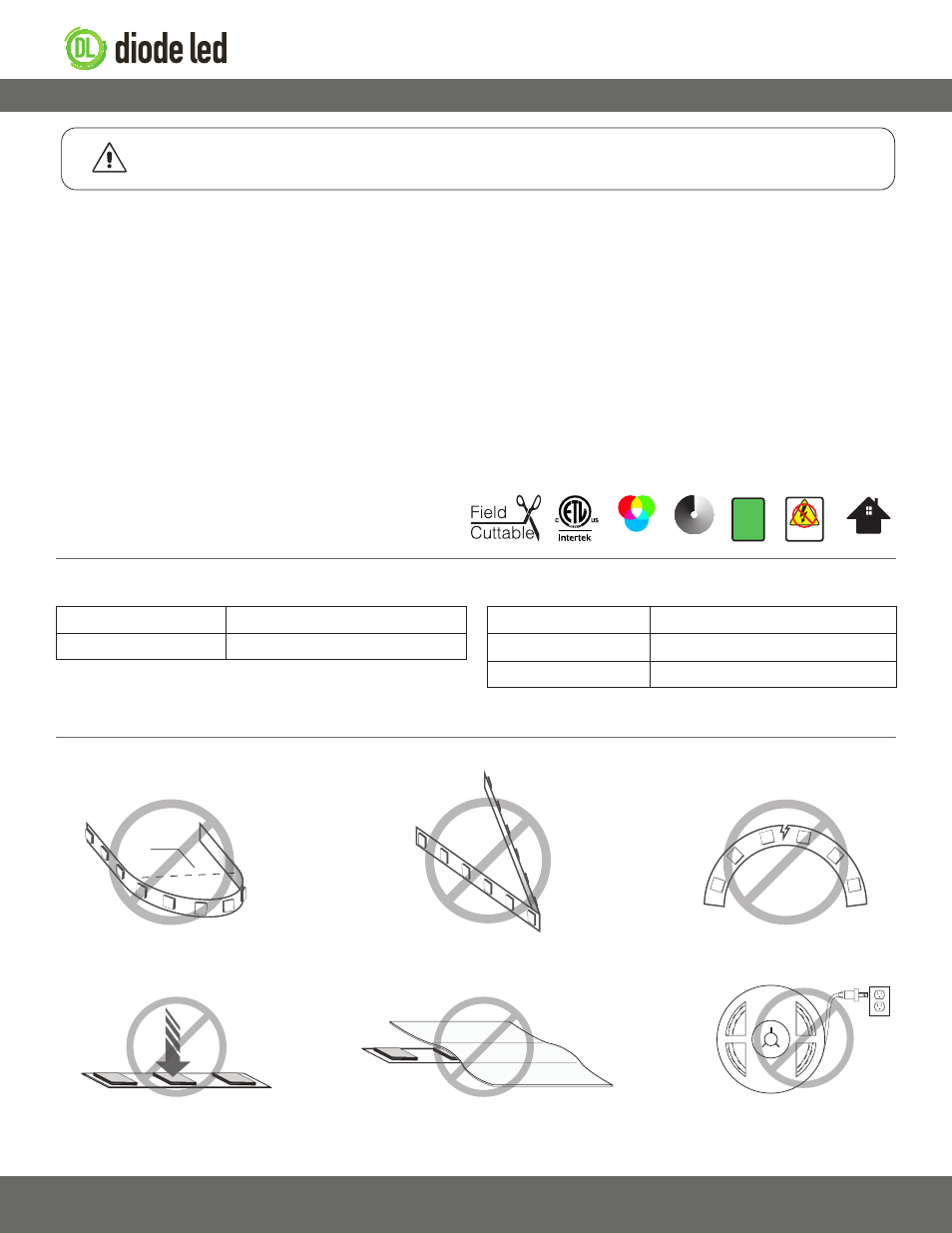

Do not bend LED strip light on a
horizontal plane.
Do not fold or crease LED strip light. Do not bend LED strip light to a diameter
less than 1.5 inches.
Do not put excessive pressure on surface of
strip light (e.g. glass/acrylic panes etc.).
1.5 in.
Do not cover strip light with any materials. Do not power strip light while
attached to spool or tightly coiled.
• Install in accordance with the National Electric Code and local
regulations.
• This product is intended to be installed and serviced by a qualified,
licensed electrician.
• DO NOT connect tape directly to 120VAC power.
• To meet the tape ETL Listing certification, tape light must be powered
with a compatible Class 2 DC constant voltage LED driver (power
supply).
• Each LED driver is unique and may require a proper load derating,
which is dependent to the installed ambient temperature environment.
Refer to each driver specification sheet for full power ratings & load
deratings.
• Do not power tape light while attached to plastic spool or tightly coiled.
Excess heat may melt the spool and/or cause damage to the tape.
• Do not install tape light in direct sunlight.
• Ensure applicable wire is installed between driver, fixture, and any
controls in between. When choosing wire, factor in voltage drop,
amperage rating, and type (in-wall rated, wet location rated, etc.).
Inadequate wire installation could overheat wires, and cause a fire.
• Tape light, attached wire leads, and additional extension cables,
connectors, etc., are not rated for in-wall installation unless otherwise
noted. Connectors have a Class 2 amp limit unless otherwise noted.
• Tape light must be handled with care. Excessive handling, bending, and
pressure may damage the product, voiding the warranty.
• Each tape light has a different power consumption rating and maximum
run length that must be individually wired to a compatible low voltage
(PWM) control or DMX decoder. Refer to the tape light packaging label
or specification sheet for further technical information.
Safety & Warnings
Tape Light Handling
DO NOT CONNECT
TO HIGH VOLTAGE Dry Location Only Dimmable
24V
DC
Color Changing
Quick Specs
Included Model(s) DI-24V-RGBW-0020
Ambient Temperature † -4° ~ 122°F (-20° ~ 50°C)
Environment Indoor / dry location
Input Voltage 24VDC constant voltage
Power Consumption 4.39W / 180mA per foot
For full specifications, see the ‘Specification Sheet’ available at the online
product page.
† Do not install product in an environment outside the listed ambient
temperature. Ensure adequate airflow and heatsinking is considered
when mounting/installing.
DO NOT CONNECT DIRECTLY TO HIGH VOLTAGE POWER!
Read all warnings and installation instructions thoroughly.
WARNING
IG082514-1.3
