12V 300W CLASS 2 MAGNETIC DIMMABLE DRIVER

INSTALLATION GUIDE

Before you begin, read all warnings and installation instructions thoroughly.

Safety & Warnings

• This driver must be installed in accordance with Article 450 of the

National Electric Code, and local regulations.

• This product is to be installed and serviced by a qualified electrician.

• This driver must be grounded to the green grounding wire.

• Install in a well-ventilated area free from explosive gases and vapors.

• This product is rated for indoor installation and is not protected

against moisture.

• Only install compatible LED dimmable fixtures. Contact technical

support or visit the online product page for compatible products.

• Do not modify or disassemble this product beyond instructions or the

warranty will be void.

• Ensure applicable wire is installed between driver, fixture, and any

controls in between. When choosing wire, factor in voltage drop,

amperage rating, and type (in-wall rated, wet location rated, etc.).

Inadequate wire installation could overheat wires, and cause fire.

• This specific model driver may be installed with an ON/OFF switch or

a compatible Magnetic Low Voltage (MLV) dimmer switch. Visit the

online product page for a list of compatible dimmer switches.

• Utilize the wiring diagrams in this installation guide for basic

installations.

• When installing with a dimmer switch, see dimmer switch specs for

minimum load requirements.

Installation

1. Turn power OFF at main circuit breaker.

2. Determine locations to install the driver, fixture and control. See ‘System Diagram.’

3. Remove both driver faceplates and pop out wiring knockouts as needed. Install 1/2” Romex connectors/wire strains. Feed wire through

Romex connectors prior to making wiring connections.

4. Attach the appropriate load to the dimmable driver.

5. Attach the 120VAC MLV dimmer/switch to dimmable driver. Follow the install instructions provided with the control.

6. Replace driver faceplates and turn power ON at main circuit breaker.

Install in accordance with the NEC and local regulations. It is recommended to perform a dry test prior to permanent installation to ensure all system

components are functioning properly.

Ensure applicable wire is installed between driver, fixture, and dimmer. When choosing wire, factor in voltage drop, amp rating, and type to prevent

fire or electric shock.

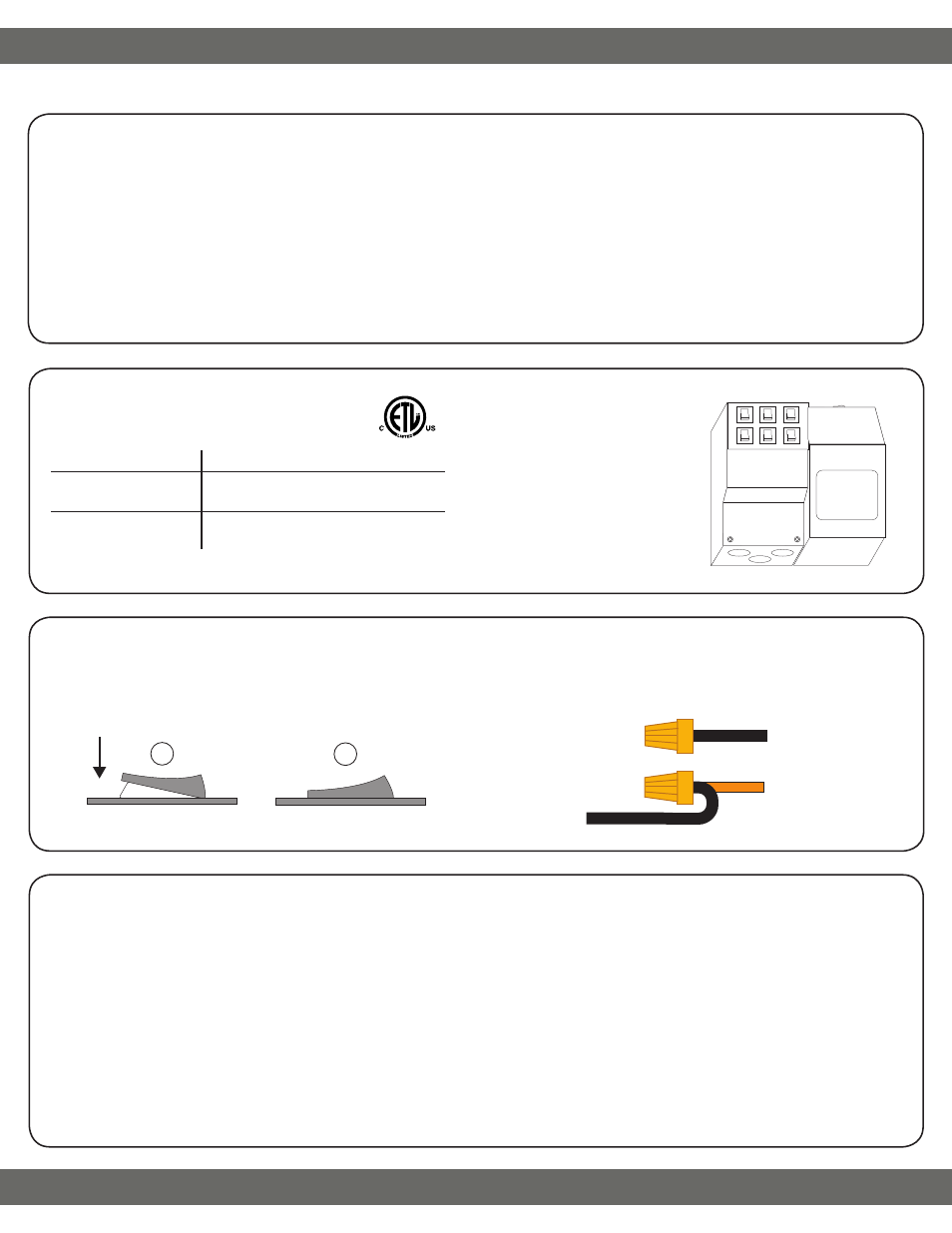

Reset Breaker

Both primary and (6x) secondary circuits are protected with a reset

breaker in the event of an overload, surge, or short circuit. A tripped

circuit is indicated by a popped out, white edge. To reset, turn off

main power and push in button.

Boost Tap

Use the Orange

Boost Tap

as an optional voltage boost (roughly 1V)

in place of the Black (Line) wire if the fixture is receiving noticeable

light degradation. Cap the existing hot wire not in use.

L

B

From Driver

From Dimmer

Switch

L

Mounting

Quick Specs

– 1 + – 2 + – 3 +

– 4 + – 5 + – 6 +

1

2

3

4

5

6

120VAC

12VDC

For proper heat dissipation,

mount vertically to a sturdy

surface, with 120VAC

compartment facing upwards.

Mounting holes are located

inside driver compartments.

Input Voltage

120VAC

Output Voltage

11.2DC (Full Load)

Max Load

6 x 50W/4.2A

(50W taps do not require load derating)

If breaker trips (indicated by a white edge), turn

off main power and push in to reset breaker.

1

Breaker is now reset.

2
