Diode LED Nicolaudie STICK 2 - Manual

Sunlite Touch-sensitive Intelligent Control Keypad Ref. STICK-GU2 Page 1/2
Technical datasheet Revision date 16 Oct. 2013 www.nicolaudie.com Version 1.21
AVAILABLE MEMORY
Depending on the number of scenes used
CHANNELS
STEPS
Using 8 scenes
8 1691
16 1011
32 557
48 383
64 291
80 233
96 195
112 166
128 145
SPECIFICATIONS
Package Controller, cdrom, usb cable, connector block
OS requirement
Mac OSx 10.6/10.7/10.8 - Windows XP/VISTA/SEVEN/8 32/64 bits
and USB 2.0
Software Easy Stand Alone, ESA2 (PC & Mac)
Versions Black glass design, White glass design
Connections Power (2pins) DMX (3pins) Port (2 pins) Micro-usb
Power from 5.5V to 12V DC(AC/DC adapter in option). Max 5.5v with USB
Certifications EC, EMC, ROHS, ETL, UL (some are in process)
Keypad 86x86x10 mm 110g
Package 140x135x50 mm 365g
Use Environement IP20 Temperature 0ºC to 50ºC
ON/OFF : Short touch
- Easy switch on and off
CHANGE MODE : Touch and hold
To switch between color, scene and dimmer mode
micro USB
86 mm
86
mm
PREVIOUS NEXT
Port Power DMX
10 mm

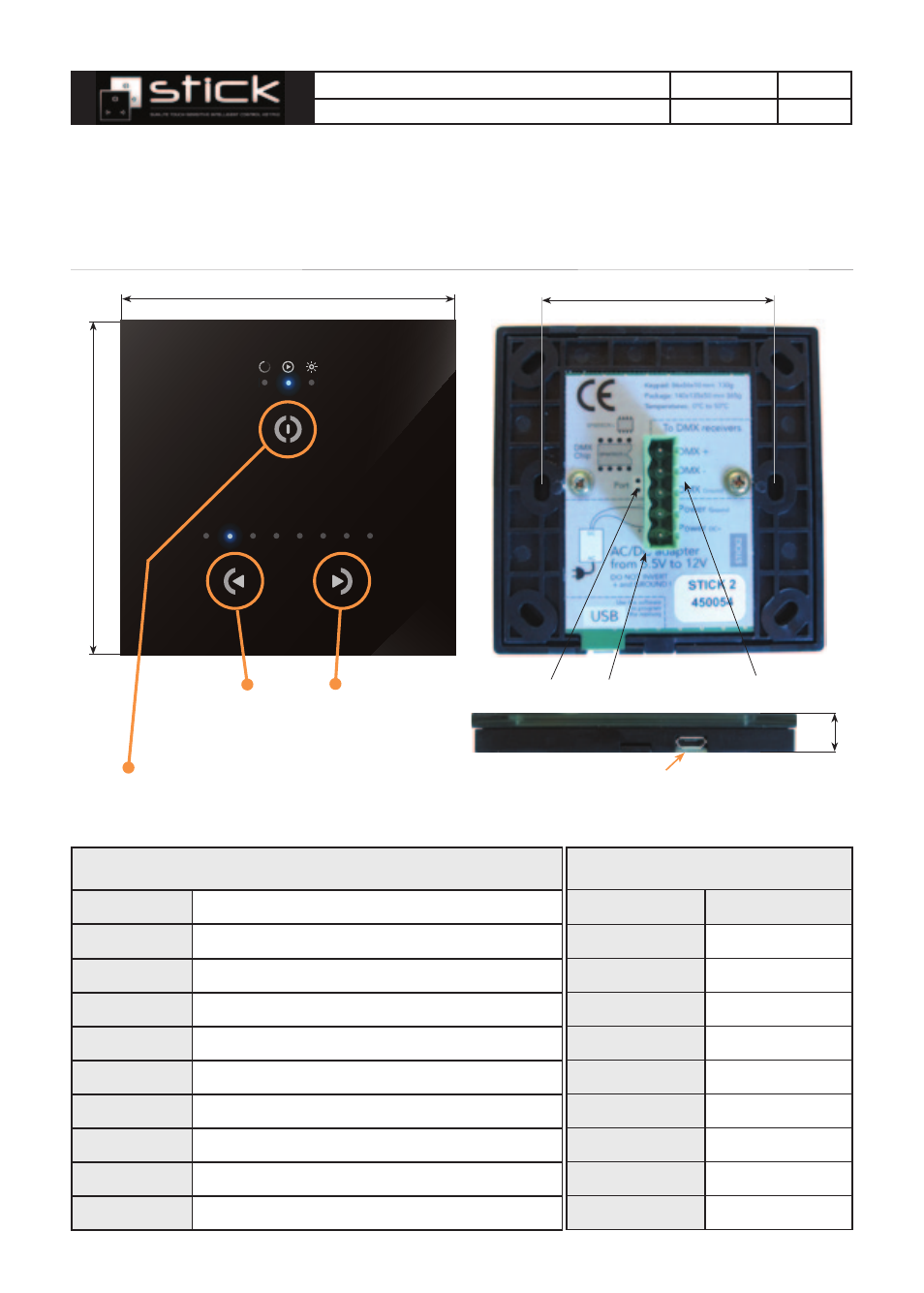

• DMX Stand Alone Controller (128 channels) with a glass face
• 3 touch sensitive buttons (on/off/mode, previous, next)
• Up to 24 dynamic or static scenes (8 first visualized by a led)
• Live setting of the intensity and color of a scene
• Programmable through the included USB cable and control software • Compatible with any DMX fixture or DMX LED driver
• Ready to use (pre-loaded with 8 scenes and 42 RGB fixtures)
• Latest ARM CPU technology
• Customized design for OEM, wall mountable
• One dry contact trigger port on PCB
60 mm
