1 OF 4

INSTALLATION SHEET

Before you begin, read all warnings and installation instructions thoroughly.

Safety & Warnings

• This product is intended to be installed and serviced by a qualified, licensed electrician.

• Install in accordance with the National Electric Code, and local regulations.

• Do not connect directly to high voltage 120V AC power. Only power with a compatible 12-24V DC constant voltage driver.

• Ensure applicable wire is installed between driver, fixture, and any controls in between. When choosing wire, factor in voltage drop, amperage rating,

and type (in-wall rated, wet location rated, etc.). Inadequate wire installation could overheat wires and cause fire.

• This product is rated for indoor installation and is not protected against moisture.

• Do not disassemble or modify this product beyond the instructions in this guide or the warranty will be voided.

• Utilize the wiring diagrams in this installation guide for basic installations. For more complex installations, please contact technical support.

DMX 4-ZONE WIFI CONTROLLER

• RJ45 Splice Cable

• RJ45 Coupler

• Square-Pro Junction Box

Remote Operation
The DMX controller can also be controlled remotely via WiFi with a

compatible IOS/Android tablet or mobile device using the application

‘EasyColor Pro.’

Please see the DMX controller product web

page for ‘EasyColor Pro’ instructions.

Save Function

Up to 16 total static colors can be saved, 4 colors per zone. To save a color:

1. Choose a zone to operate in (1, 2, 3, or 4).

2. Select a color to save by using the color wheel or by adjusting each

R, G, B, and W setting.

3. Once the desired color is visible, long press the ‘S’ key until the blue

indicator light on the controller flashes.

4. Short press 1, 2, 3, or 4 to save the color. LEDs will flash once save is

complete.

5. To achieve your saved color:

a. Choose the zone to operate in (1-4).

b. Short press the ‘S’ key.

c. Press the number the color was saved in (1-4).

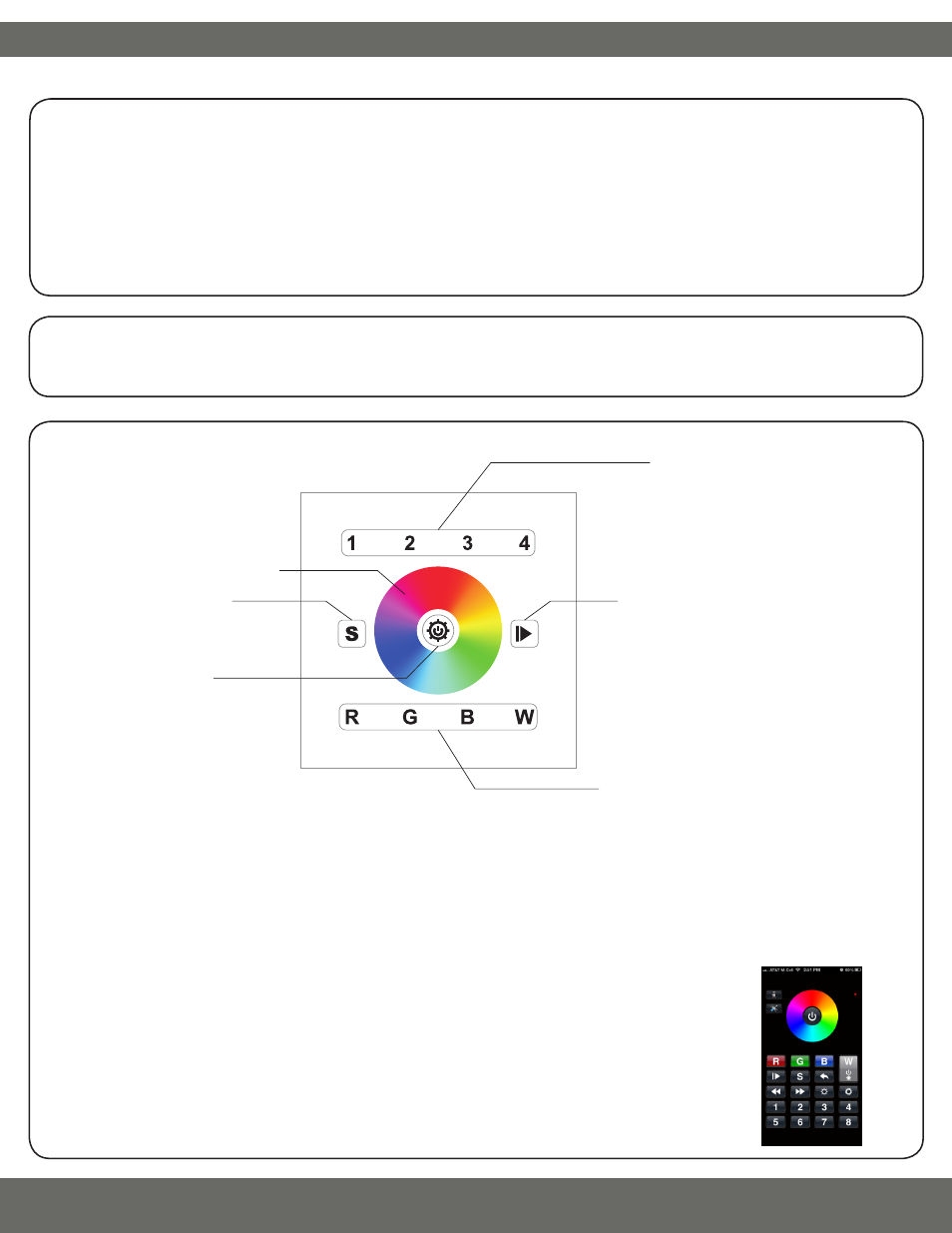

Operation Overview

Zone Control

Short press to control zones 1-4.

Long press to turn individual

zone ON/OFF.

Dynamic Modes

Short press switches

mode/pauses mode.

Long press adjusts

speed of dynamic mode.

RGBW Control

Short press to turn ON/OFF Red,

Green, Blue, White.

Long press to adjust brightness

of individual R,G,B,W color.

Color Wheel

Scroll to find specified color.

Save Function

Saves single colors. See

below for more details.

Power

Short press to turn ALL zones

and channels ON/OFF.

Long press to adjust bright-

ness of CURRENT zone RGB

colors simultaneously. Adjust

W channel seperately to

adjust tone.

Included Items
