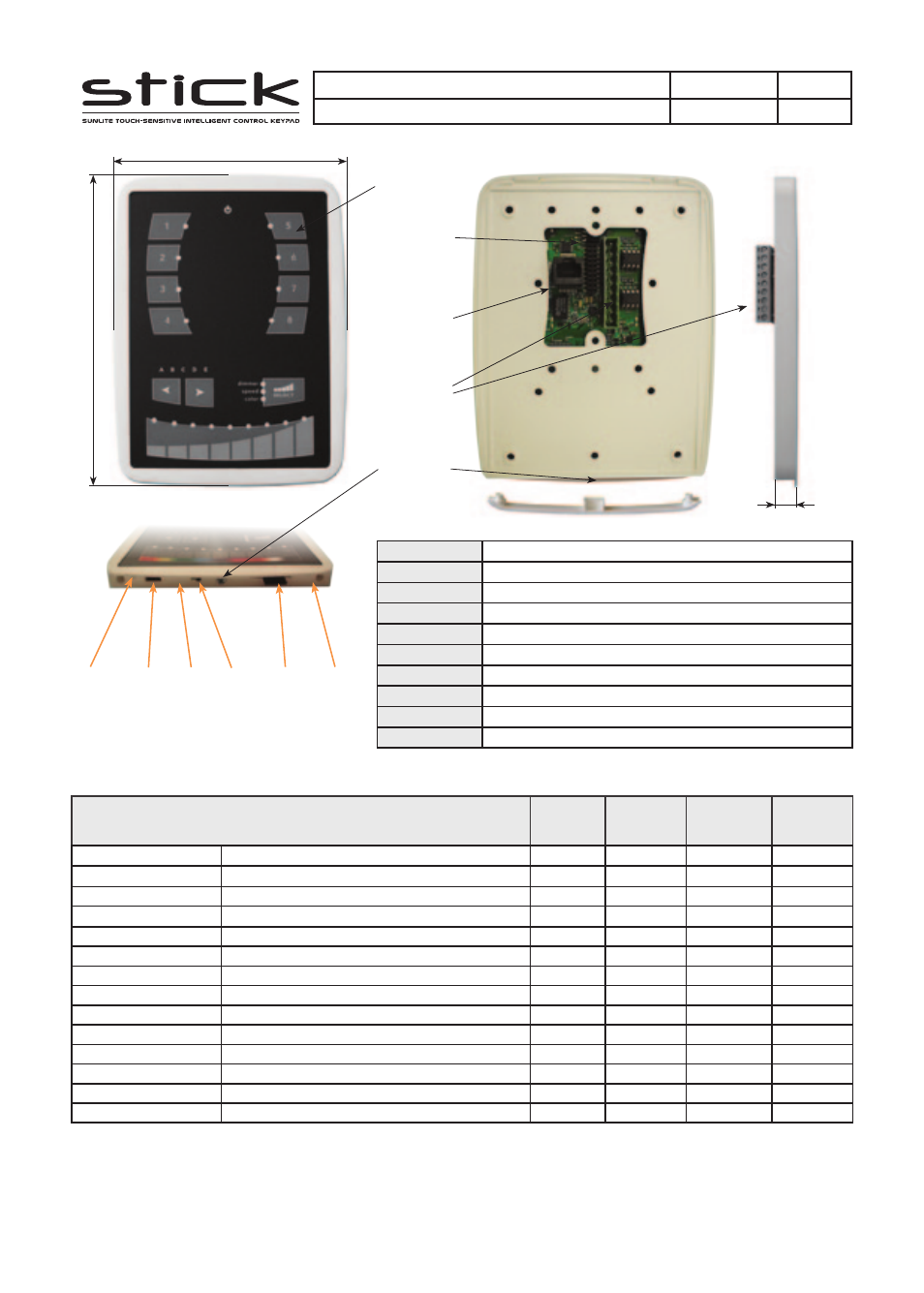

background image

Sunlite Touch-sensitive Intelligent Control Keypad

Ref. STICK-KE1

Page 1/4

Technical datasheet

Revision date 2 May 2013

www.nicolaudie.com

Version 1.2

SPECIFICATIONS / CONNECTIONS

Built-in

features

screw-terminal

rear connector

(9 pins)

extension socket

rear connectors

(2x10 pins)

front access

connections

(open cover)

Power Supply

6V DC 0.65A, supplied

USB

DMX Output #1

First universe, 512 channels DMX512 output

DMX Output #2

Second universe, 512 channels DMX512 output

(*)

USB

USB 2.0 communication for PC/software

Ethernet

Advanced networking features

Ports 1,2,3,4

4 Contact closure inputs, connect to ground for operating

Ports 5,6,7,8

4 Contact closure inputs, connect to ground for operating

User interface

14 buttons, 1 fader, 28 leds (Touch-sensitive keypad)

power/data leds

SDCARD

Micro sd card for stand alone memory use (supplied)

RESET

Push button for reset operation

RS232

RS232 Serial communication for external synchronisation

Output relay

Automatic Stand by 5V signal

Clock

Real time clock and calendar, 10 minutes saving without power

Infrared receiver

Easy learning triggering from any 36Khz remote control

© Nicolaudie-Sunlite 1989-2012. All rights reserved. We reserve the right without notice to amend the technical information and specifications.

Package

Interface, sdcard, datasheet, cdrom, usb cable

Software

ESA + ESA PRO on PC/Windows, ESA2 on PC + MAC

Application

ARCOLIS + STICK REMOTE on iPhone/iPad/Android

Available colors Frame (black or white), use the Stick Design Configurator web site

Options

Dedicated remote control

(*), Power supply (*)

Standards

EC, EMC, ROHS, ETL, UL (some are in process)

Image size

Standard 150x110mm picture, contact us for a sample profile

Temperature

-10ºC to 50ºC

Dimensions

168x128x11,5 mm Complete package 250x150x55 mm

Weight

0,2 kg 0.44 lbs Complete package 0,6 kg 1.32 lbs

Touch-sensitive

user interface

Extension socket

rear connectors

(2x10 pins)

Ethernet socket

(RJ45)

Screw-terminal

rear connector

(9 pins)

Front access

connections

(open cover)

reset mini power on / off micro data

button USB led switch sdcard led

128 mm

11,5 mm

168

mm
