48
Connector Specifications
Connector Type: DeviceNet 5-pin shielded micro-style male connector.

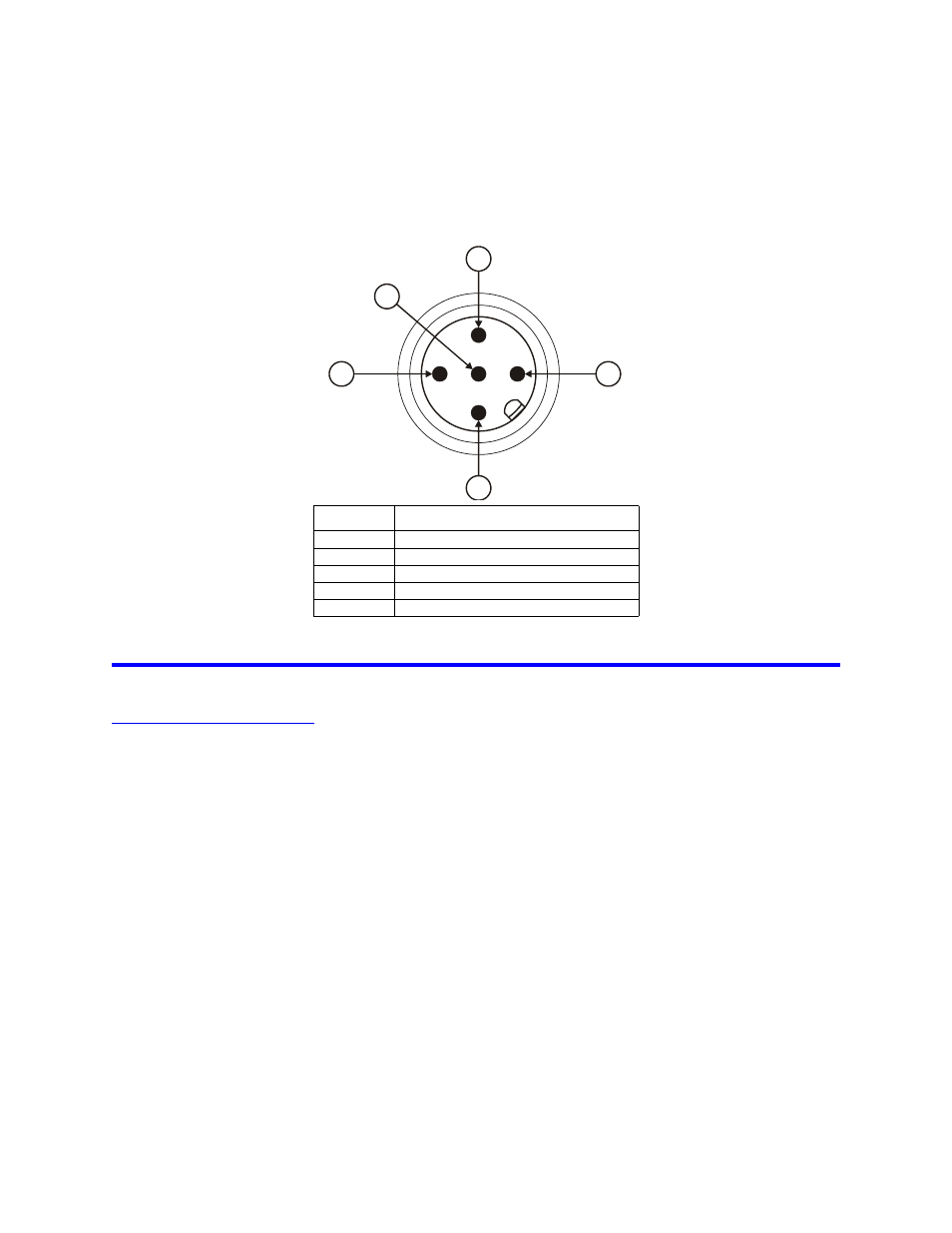

Figure 28 DeviceNet Connector Pin Assignment
DeviceNet Communication Interface Guide
To obtain the full DeviceNet Interface guide, please log onto our website at:
www.bird-technologies.com/bds
Item Description
1 Drain
2 V +
3 V –
4 CAN_H
5 CAN_L
1
2
3
4
5
