Add a Faceplate to Microsoft Excel Software
1. Start Microsoft Excel software.

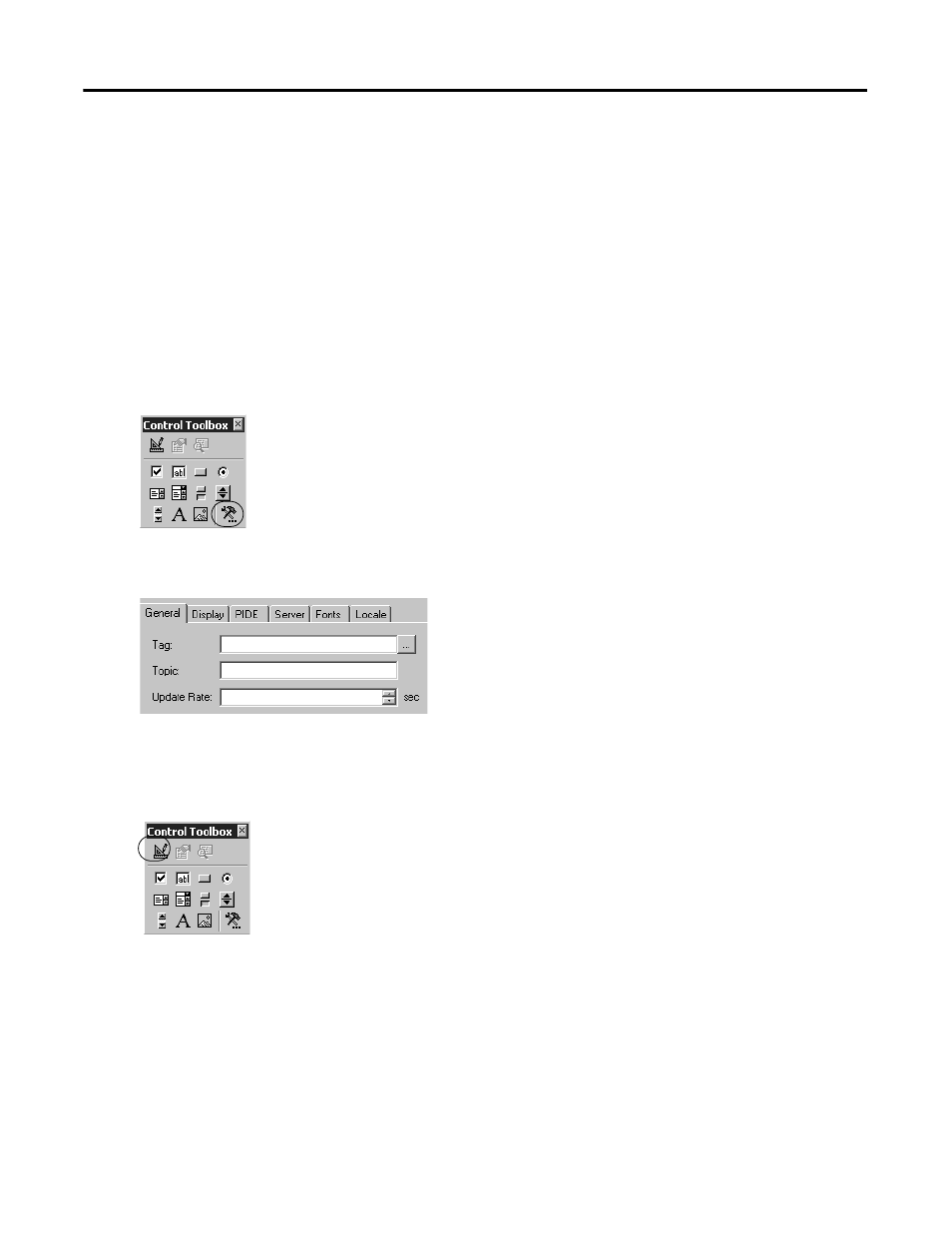

2. Choose View > Toolbars > Control Toolbox.
3. Click and select the Logix 5000…Faceplate Control that you want.
4. In the location for the faceplate, drag the pointer to the desired size of the faceplate.
5. Right-click the faceplate and from the Logix 5000…Faceplate Control Object menu, choose
Properties.
6. Click and browse to the tag that the faceplate controls.
7. Select the update period for the control and click OK.
8. To exit design mode and use the control, click here.
