Chapter 3 Program Add-On Instructions

Edit and Monitor an Add-On Instruction

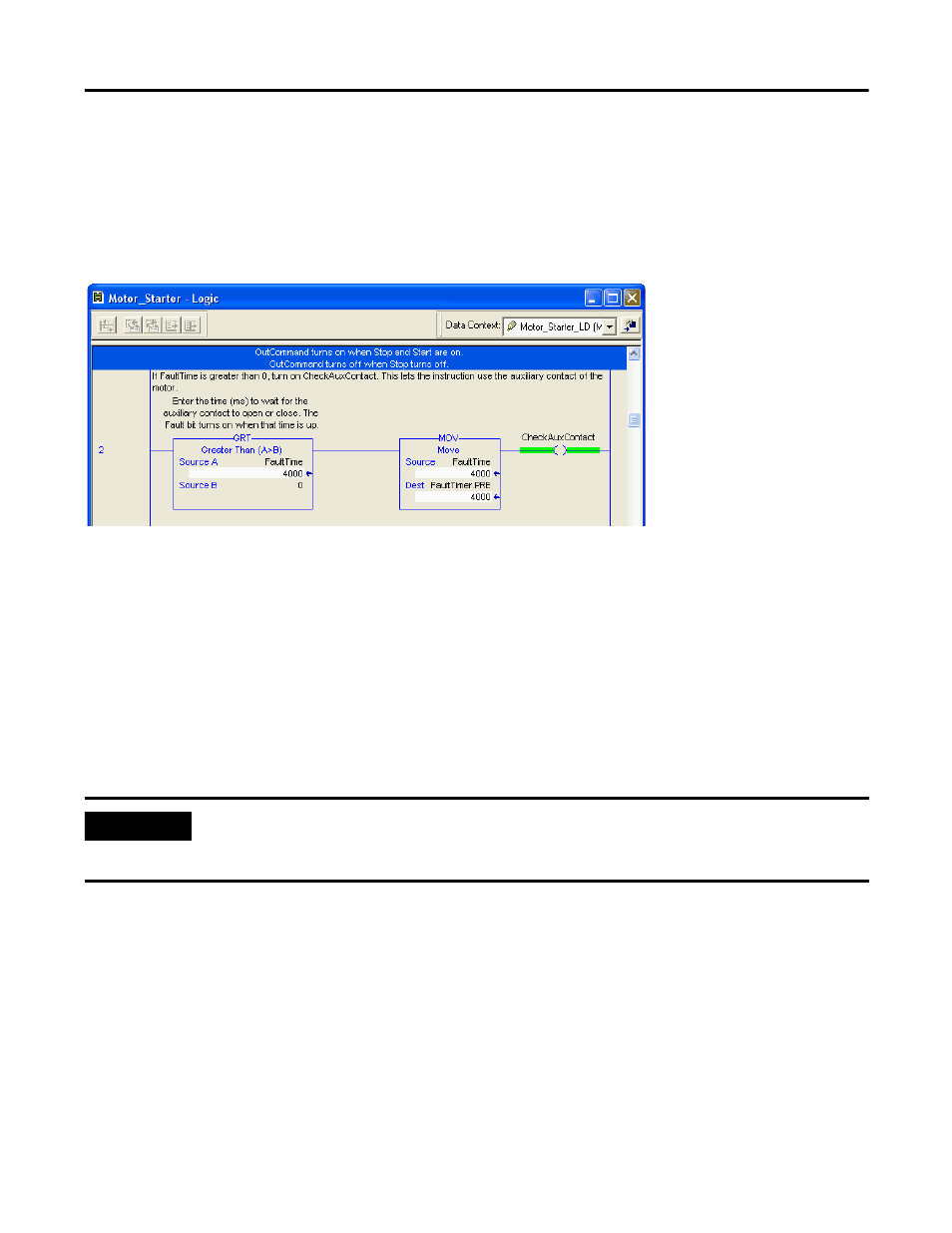

You can:

• see the logic as it executes.

• see tag values.

• change tag and parameter values.

You cannot:

• edit logic online.

• edit logic for just this instruction.

To edit the logic, you must edit the definition.

Update an Add-On Instruction to a Newer Revision

You can update the definition of an Add-On Instruction to a newer revision.

For example, if a project uses a certain Add-On Instruction 5 times, update the definition so that all 5
instances change when you change the definition.

1. Right-click the Add-On Instructions folder and choose Import Add-On Instruction.

2. Find the instruction and choose Import.

3. Decide how to handle the conflict with the existing revision (probably overwrite).

4. Use a cross-reference list to check each use of the instruction in your logic.

IMPORTANT

Before you change the definition of an add-on instruction, make sure the change won’t cause problems
with existing instances of that instruction. When you change the definition of an add-on instruction, the
change affects all the instances of that instruction in your project.
