Chapter 4 Program an Equipment Phase

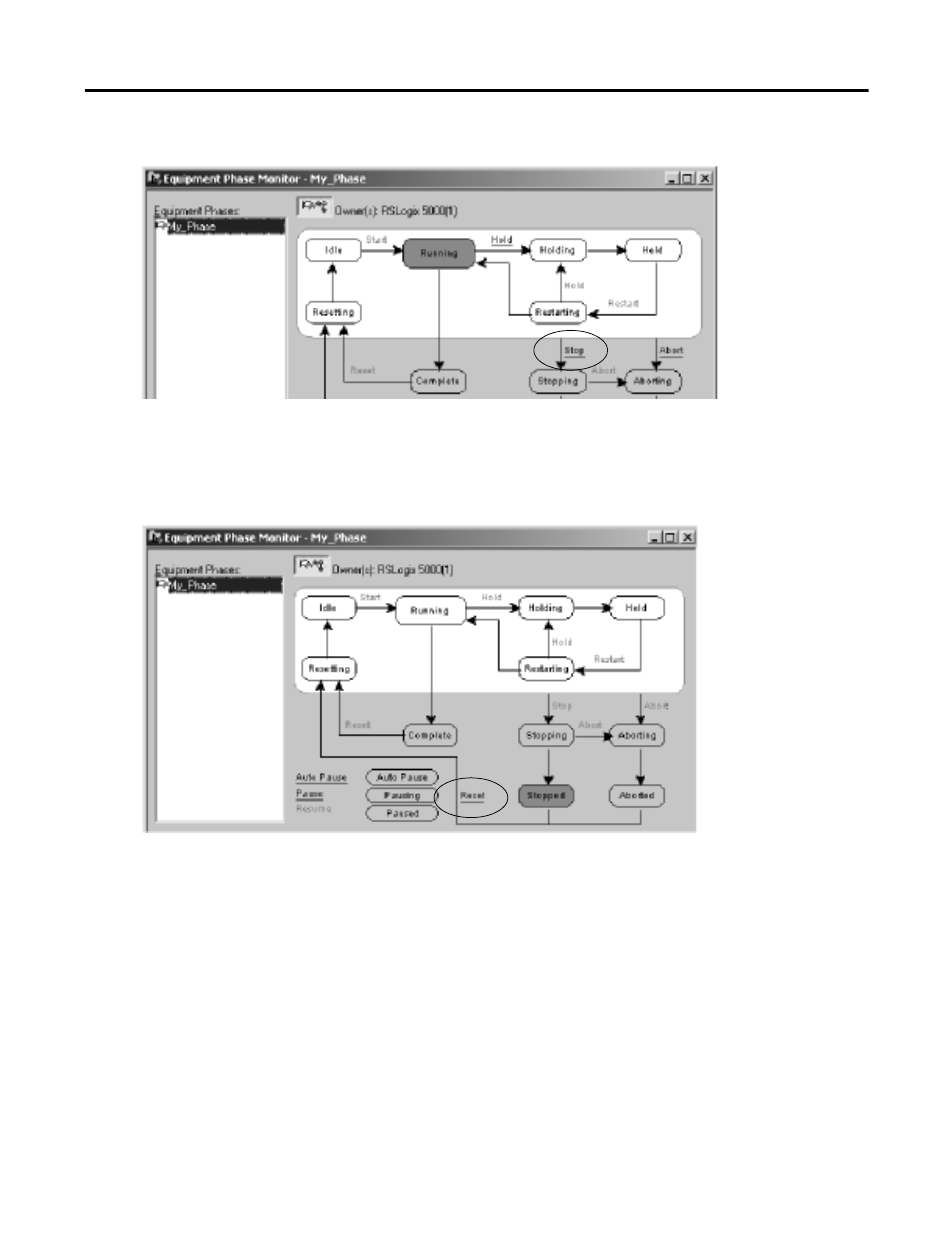

4. Click Stop.

The equipment phase goes to the Stopped state.The Running state routine stops running. The Stopping
state routine is optional. Without it, the equipment phase goes directly to the Stopped state.

5. Click Reset.

The equipment phase goes to the Idle state. The Resetting state routine is optional. Without it, the
equipment phase goes directly to the Idle state.
