Publication 1756-QS001E-EN-P - October 2009

49

Organize a Project Chapter 2

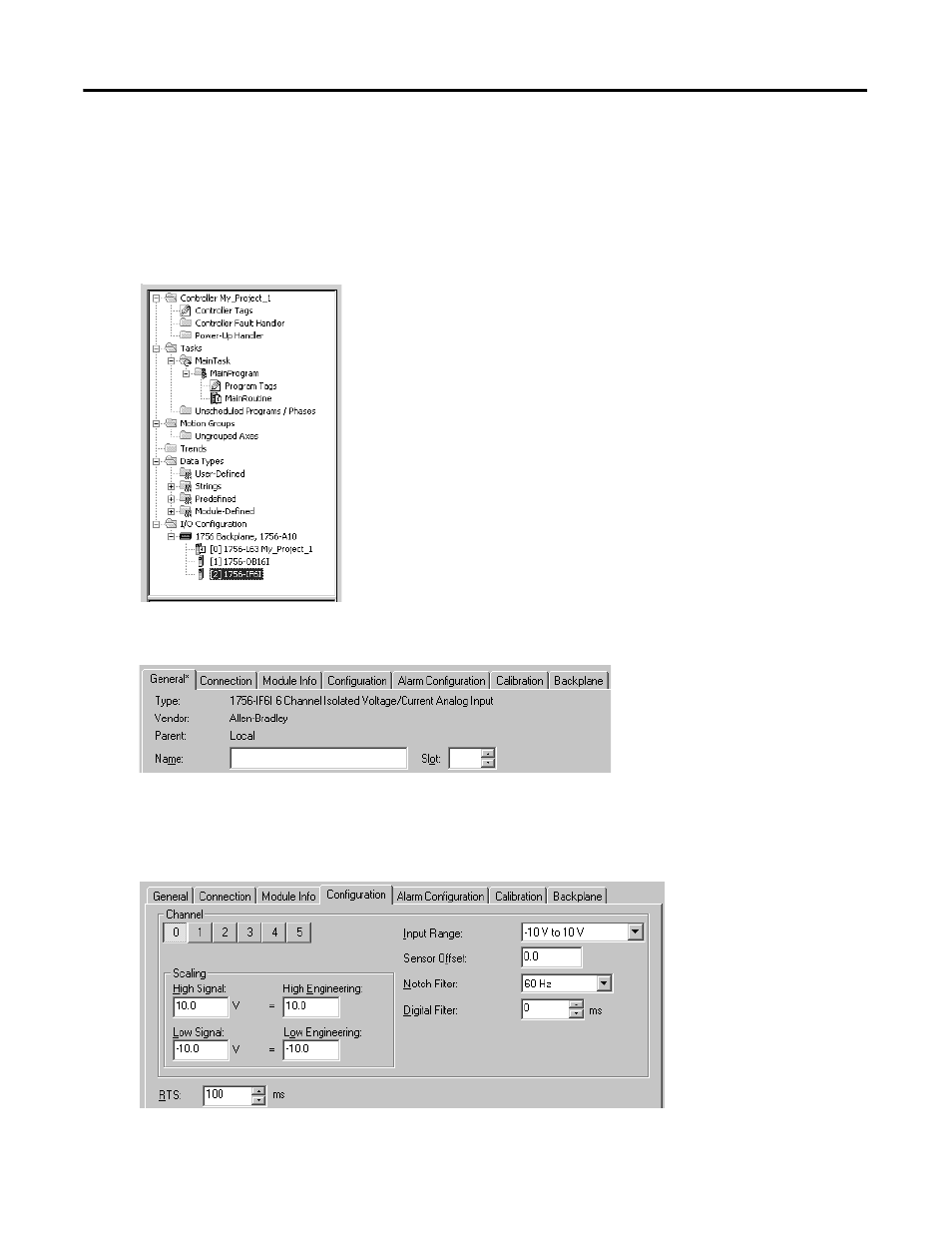

Configure I/O Modules

To change the behavior of a module, use the Module Properties window for the module. The configuration
options vary from module to module.

1. Right-click the module and choose Properties.

2. To change the name or slot number, use the General tab.

3. To change the configuration, click the Configuration tab.

Some modules have several configuration tabs.
