26

Publication 1756-QS001E-EN-P - October 2009

Chapter 1 Program and Test a Simple Project

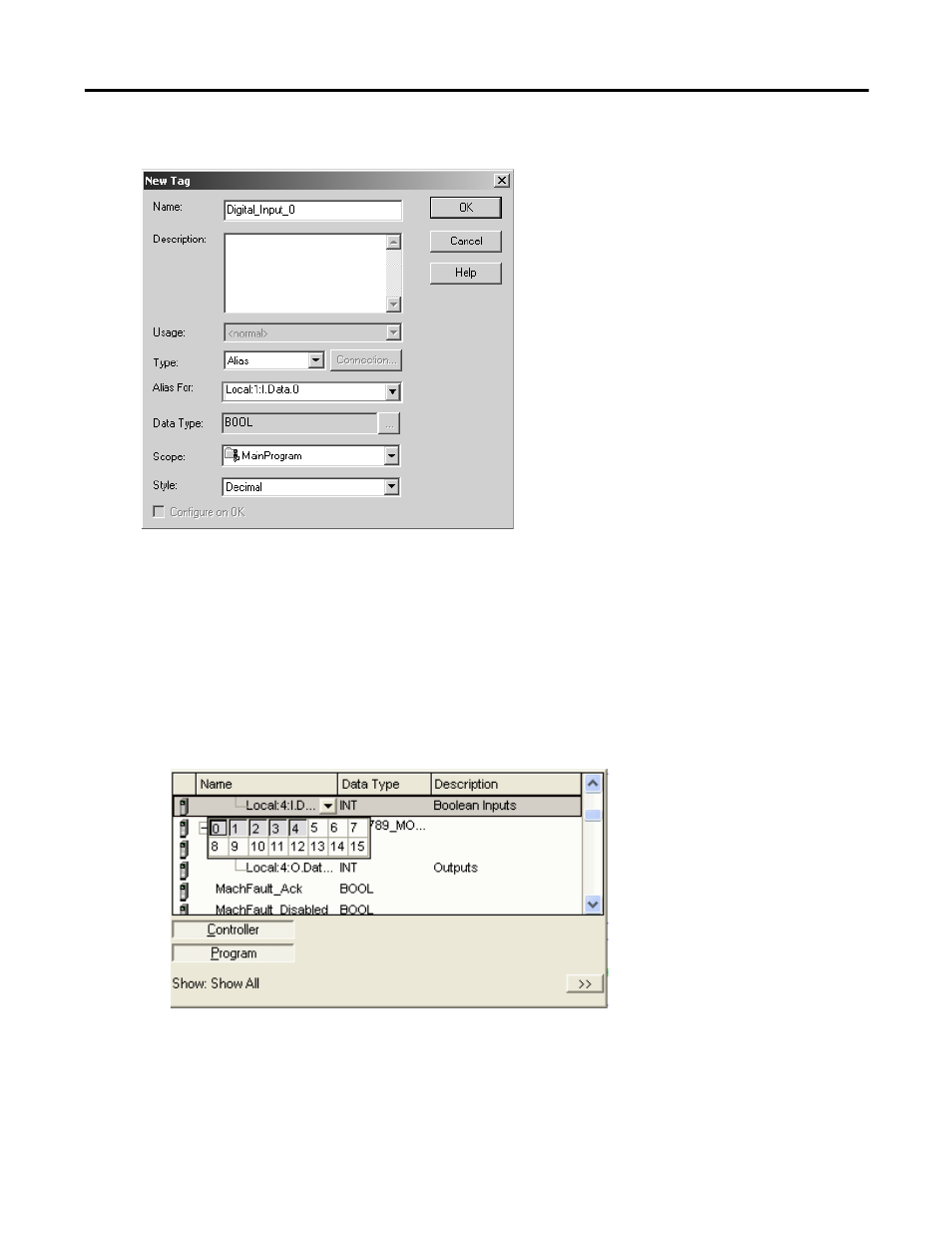

4. Select Alias from the menu.

5. Select the tag that this alias tag represents.

6. Select the scope for the alias tag.

7. Click OK.

8. Select the address of the data.

To select a bit, click the

b

button.
