64

Publication 1756-QS001E-EN-P - October 2009

Chapter 4 Program an Equipment Phase

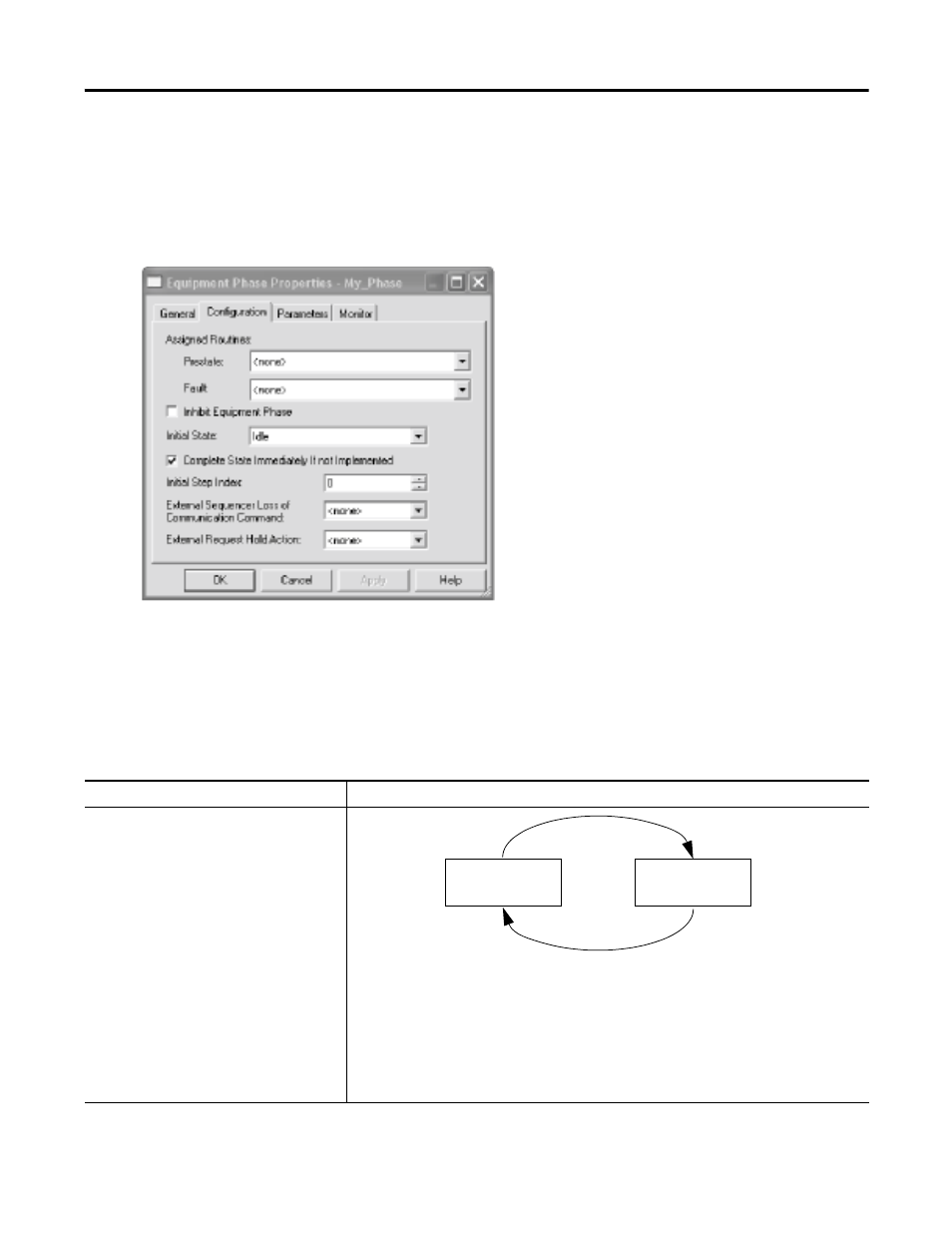

Open the Configuration for an Equipment Phase

1. Right-click the equipment phase and choose Properties.

2. Click the Configuration tab.

Configure an Equipment Phase

Use the following settings to configure an equipment phase.

Setting

Choices

Prestate

The prestate routine runs all the time, even when the equipment phase is in the idle state.
It runs before each scan of a state.

Do you want to run a prestate routine?

• Yes — Select the routine that you want to run.
• No — Leave this box set to

current state

routine

prestate routine
