Program a Project Offline Chapter 5

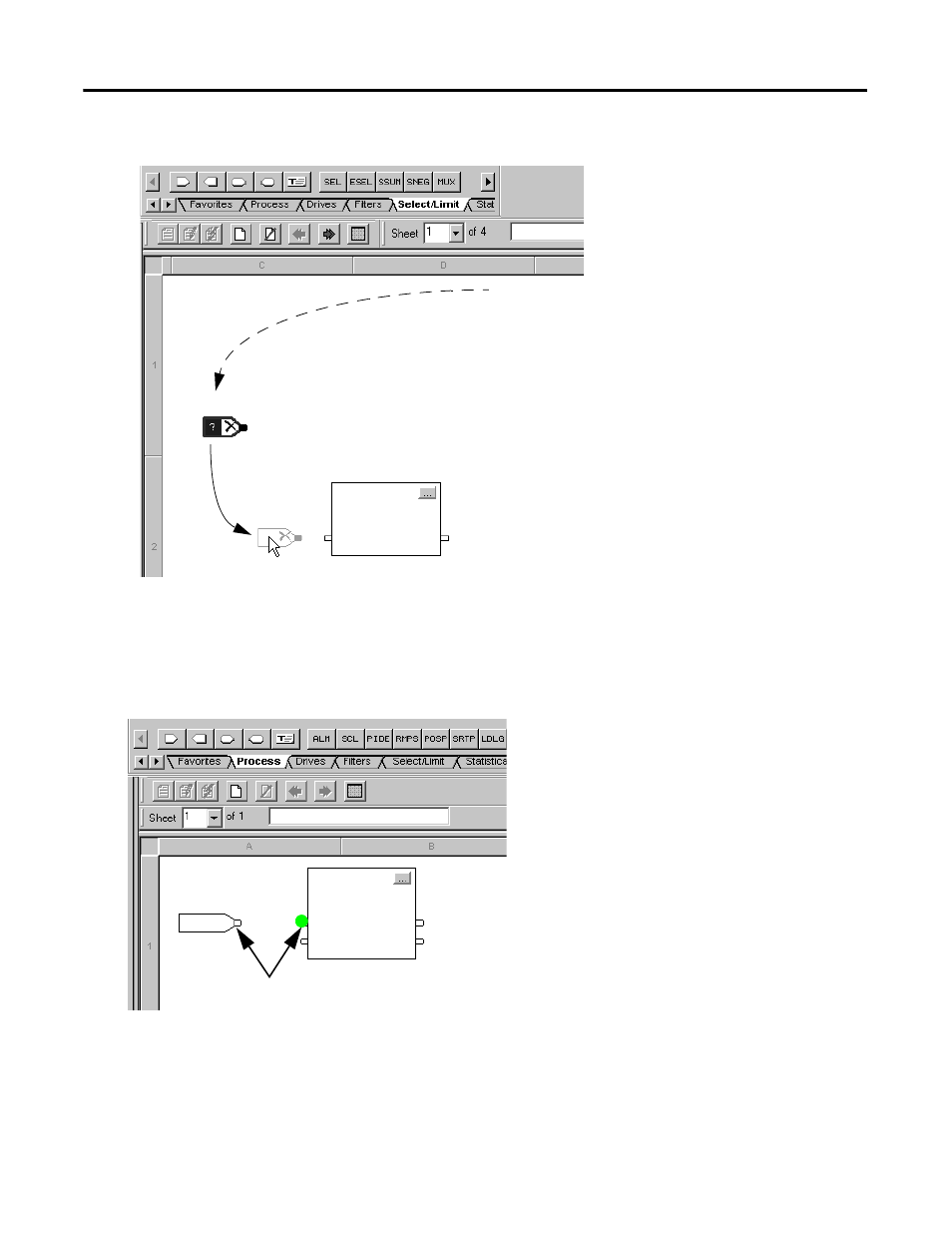

3. Drag the element to the desired location.

Connect Elements

To connect elements, click corresponding pins (green dot = valid connection point).
