Create an equipment phase, Create a state routine, Create an equipment phase create a state routine – Rockwell Automation Logix5000 Logix5000 Controllers Quick Start User Manual
Page 60
60
Publication 1756-QS001E-EN-P - October 2009
Chapter 4 Program an Equipment Phase

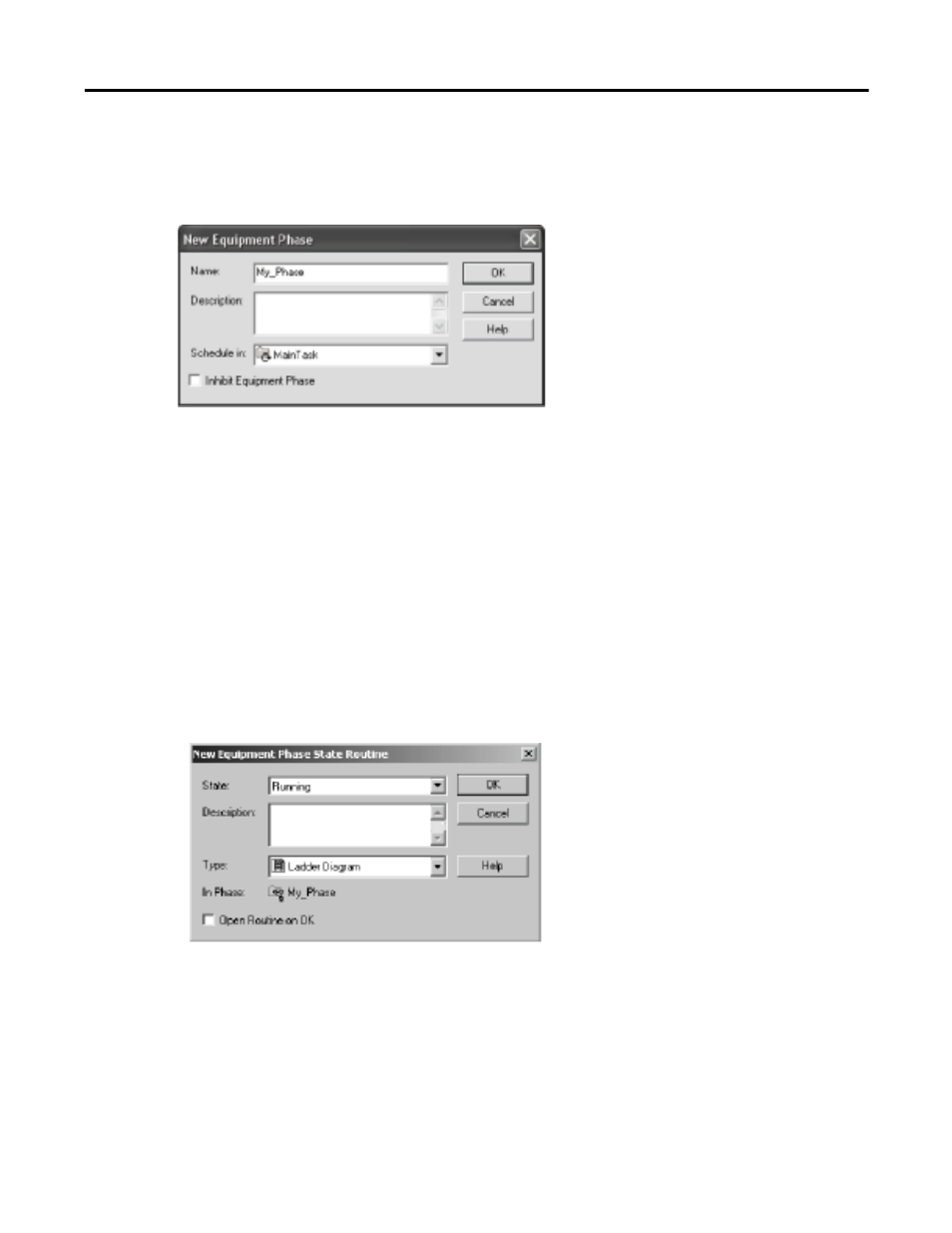

Create an Equipment Phase
1. Right-click Main Task and choose New Equipment Phase.
2. Type a name for the equipment phase and click OK.
Create a State Routine
1. Right-click Main Task and choose the equipment phase.
2. Choose New Phase State Routine.
3. Type a name for the state routine.
4. Select the programming language and click OK.
