Publication 1756-QS001E-EN-P - October 2009

57

Program Add-On Instructions Chapter 3

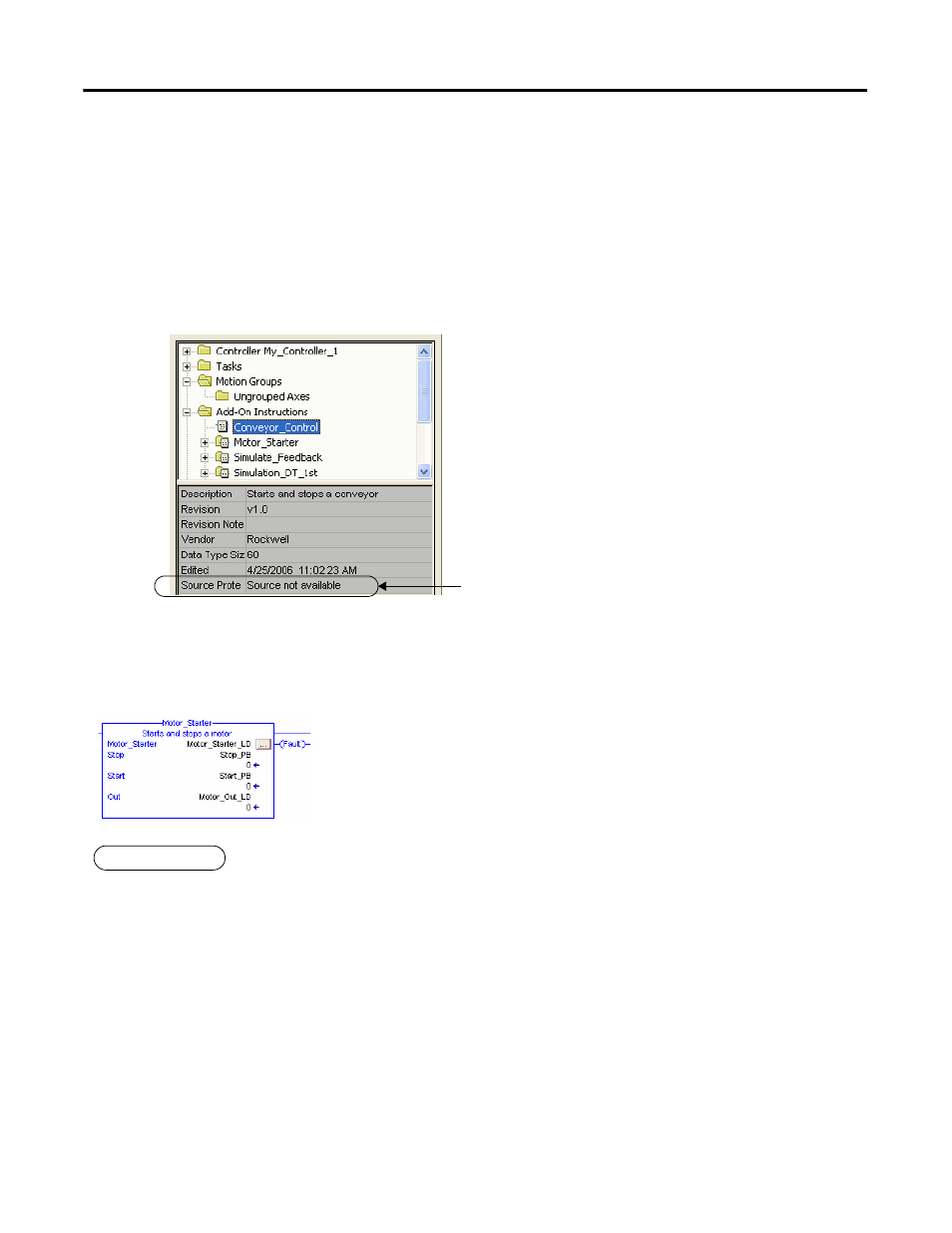

View the Logic of an Add-On Instruction

It’s possible to protect an Add-On Instruction so that you can’t see its logic. You can determine whether an
Add-On Instruction is protected.

1. Select the add-on instruction.

2. Look in the Quick View pane for Source Protection.

If it isn’t listed, then the routine isn’t protected.

To view the logic, right-click the instruction and choose Open Instruction Logic.

Motor_Starter(Motor_St

arter_ST,Stop_PB,Start

_PB,Motor_Out_ST);
