Organize a Project Chapter 2

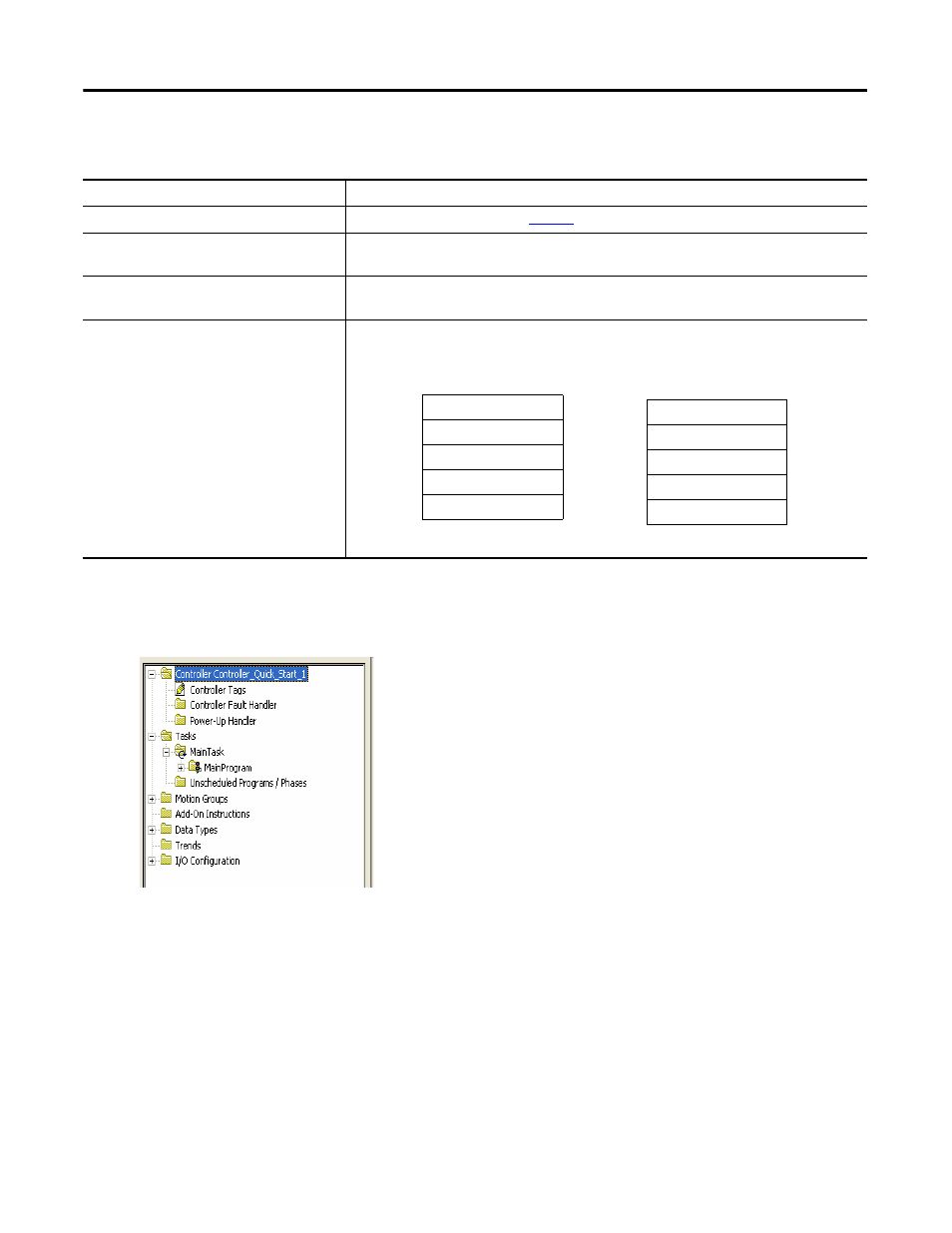

As you create user-defined data types, follow these guidelines.

Follow these steps to create a user-defined data type.

1. Right-click Data Types and choose New Data Type.

2. Type a name for the data type (not the name of a tag that will use the data type).

Guideline

Details

Consider the pass-through of descriptions.

See User-defined Data Type on

page 98

.

Data that represents an I/O device requires
additional programming.

If you include members that represent I/O devices, you must use logic to copy the data
between the members in the user-defined data type and the corresponding I/O tags.

If you include an array as a member, limit
the array to a single dimension.

Multi-dimension arrays are not permitted in a user-defined data type.

When you use the BOOL, SINT, or INT data
types, place members that use the same
data type in sequence:

Logix5000 controllers allocate memory in 4-byte chunks. If you sequence smaller data
types together, the controller packs as many as it can fit into a 4-byte chunk.

More Efficient

BOOL

BOOL

BOOL

DINT

DINT

Less Efficient

BOOL

DINT

BOOL

DINT

BOOL
