136 Publication 1756-QS001E-EN-P - October 2009
Chapter 7 Troubleshoot the Controller

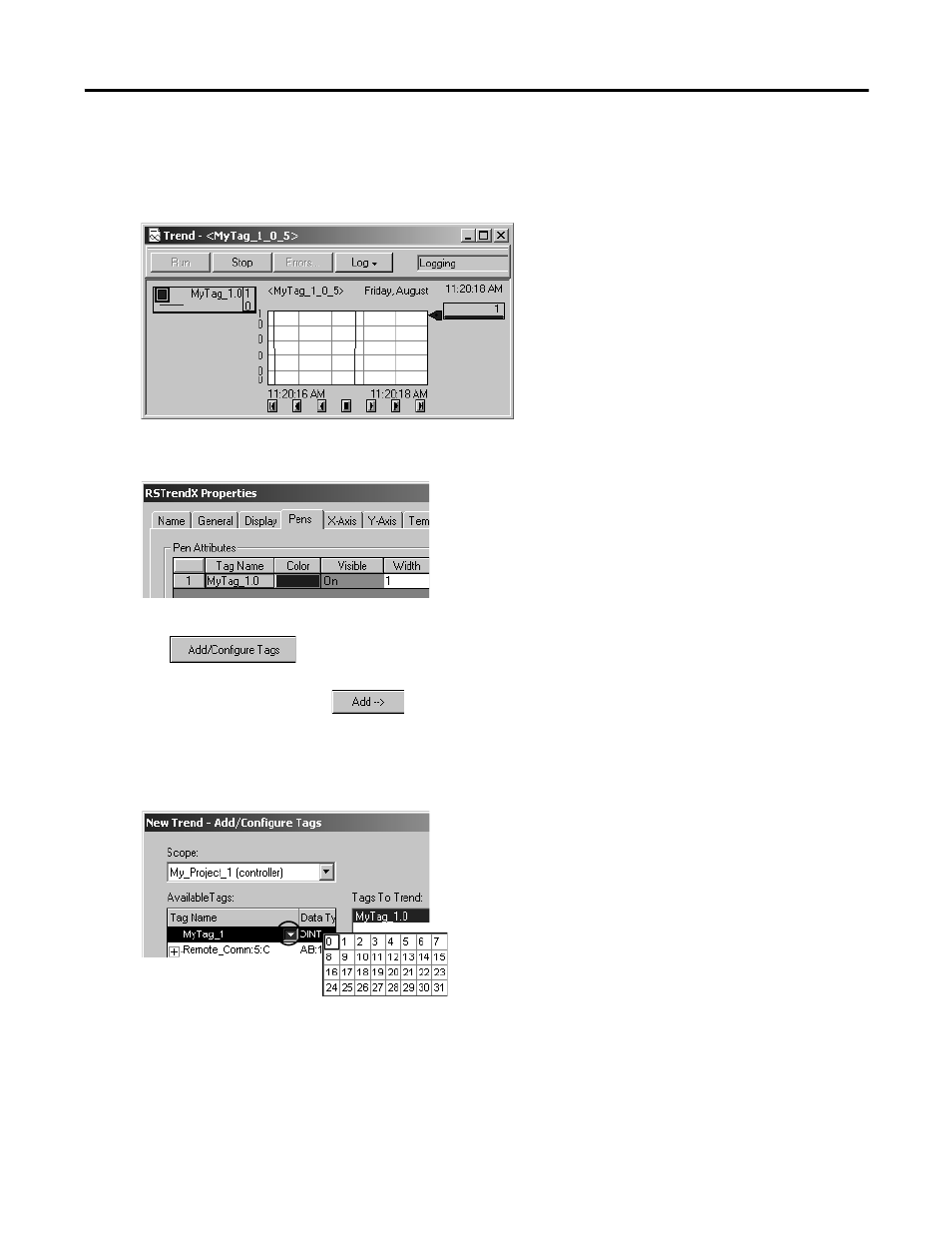

Add More Tags to the Trend
1. Right-click the chart and choose Chart Properties.
2. Click the Pens tab.
3. Click .
4. Select a tag to add and click .
To change the scope, select a scope.
5. To select a bit number, click b .
6. When you have added the required tags, click OK.
7. Click the Y-Axis tab.
