Chapter 2 Organize a Project

Create User-defined Data Types

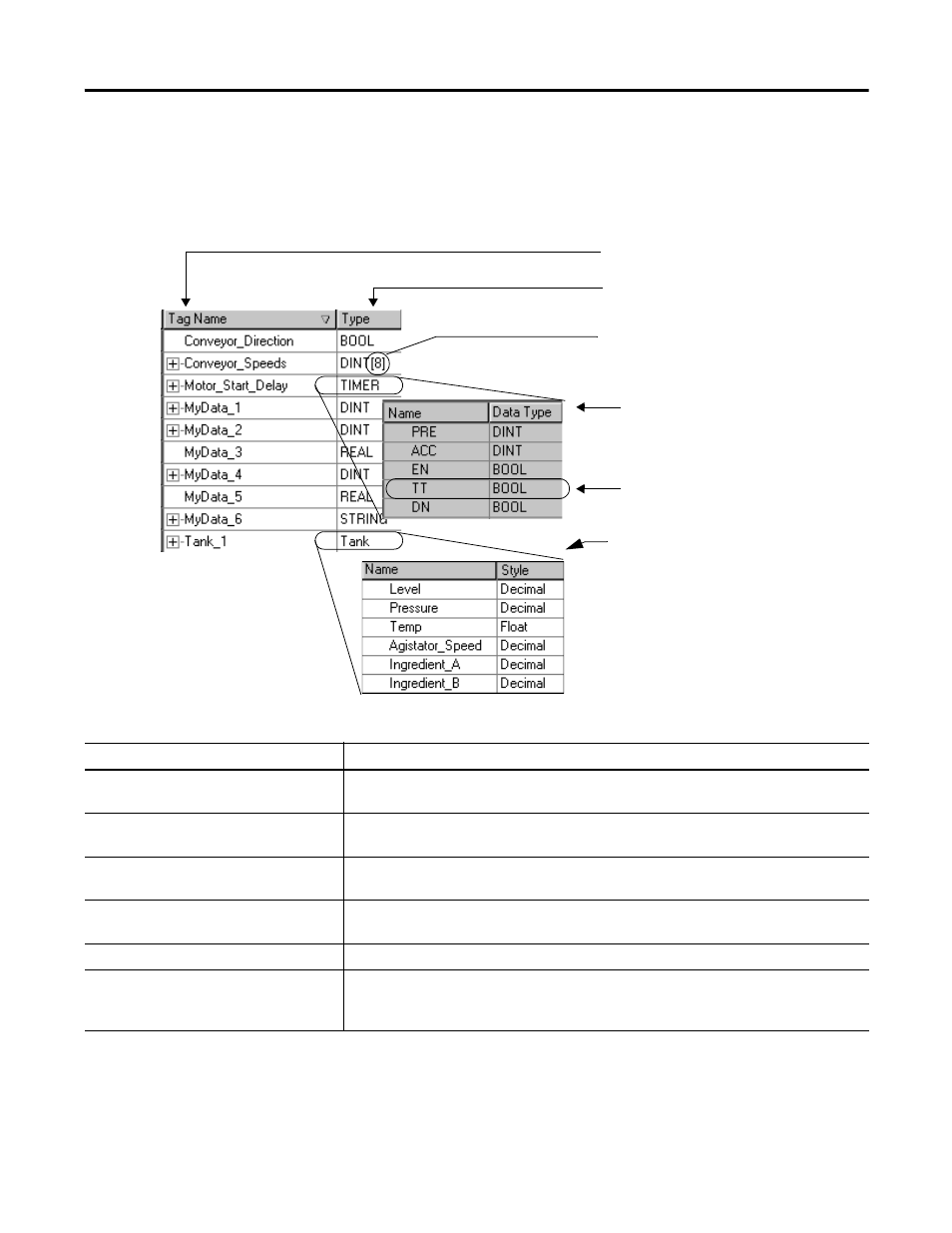

User-defined data types let you organize your data to match your machine or process. This streamlines
program development and creates self-documenting code that is easier to maintain.

Item

Description

A

Tag stores data. There is no fixed data table or numeric format for data addresses. The tag
name is the address. You create the tags that you want to use.

B

Data type defines the type of data that a tag stores, such as a bit, integer, floating-point
value, or string.

C

Array defines a block of data (file). The entire block uses the same data type. It can have 1,
2, or 3 dimensions.

D

Structure combines a group of data types into a re-usable format (template for tags). Use a
structure as the basis for multiple tags with the same data layout.

E

Member describes an individual piece of data within a structure.

F

User-defined data type defines your own data structure. A user-defined data type stores all
the data related to a specific aspect of your system. This keeps related data together and
easy to locate, regardless of its data type.

A

D

F

E

C

B
