2-18 Troubleshooting Your 1394 SERCOS Interface System
Supplemental
Troubleshooting
Information This section provides information for accessing and changing
parameters not accessible through RSLogix 5000 software.
Tools for Changing Parameters
Most parameters are accessible through RSLogix 5000 software.
Alternatives to RSLogix 5000 software for changing parameters include
the Human Interface Module (HIM) and DriveExplorer software. Refer
to the table below for catalog numbers.
1 Refer to DriveExplorer Getting Results Manual (publication 9306-GR001x-EN-E) for instructions.
Changing Parameters Using DriveExplorer
To navigate using DriveExplorer, refer to the figure below. In this
example, the I/O Interface group folder is open, the Analog Outputs
parameter is selected, and the parameter elements are displayed in the
box to the right.

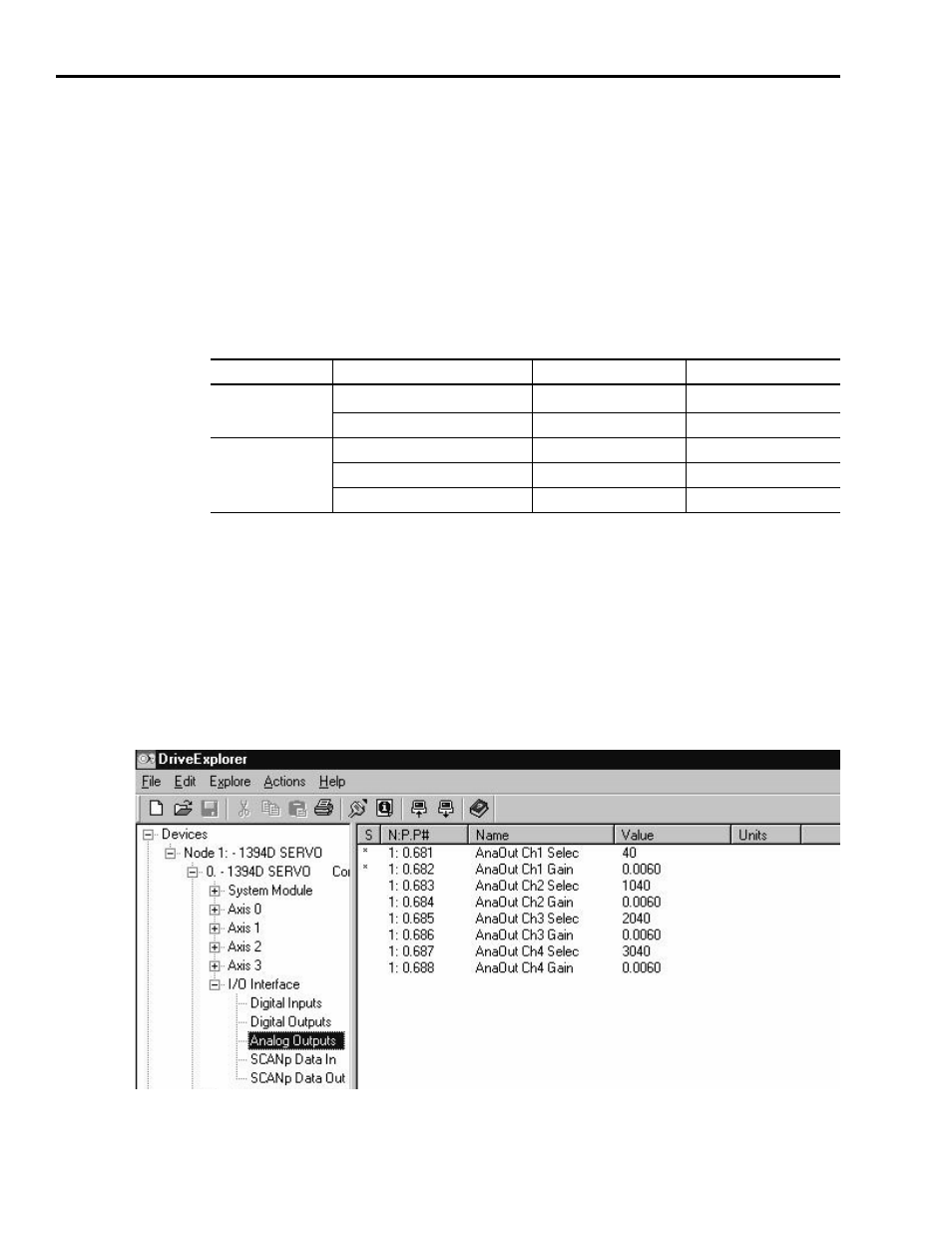

Figure 2.1
DriveExplorer Example
Method: Description: Catalog Numbers: Firmware Revision:
DriveExplorer
DriveExplorer Software 1 9306-4EXP02ENE 2.01 or later
Serial to SCANport Adapter 1203-SSS (Series B) 3.004 or later
HIM
(series B required)
Programmer Only 1201-HAP N/A
Analog Speed Potentiometer 1201-HA1 N/A
Digital Up-Down Speed Control 1201-HA2 N/A
