Rockwell Automation 1398-PDM-xxx ULTRA Plus Series Positioning Drive Module User Manual

Page 96

background image

Publication 1398-5.1 — January 2000

3-32 Wire the ULTRA Plus PDM Components

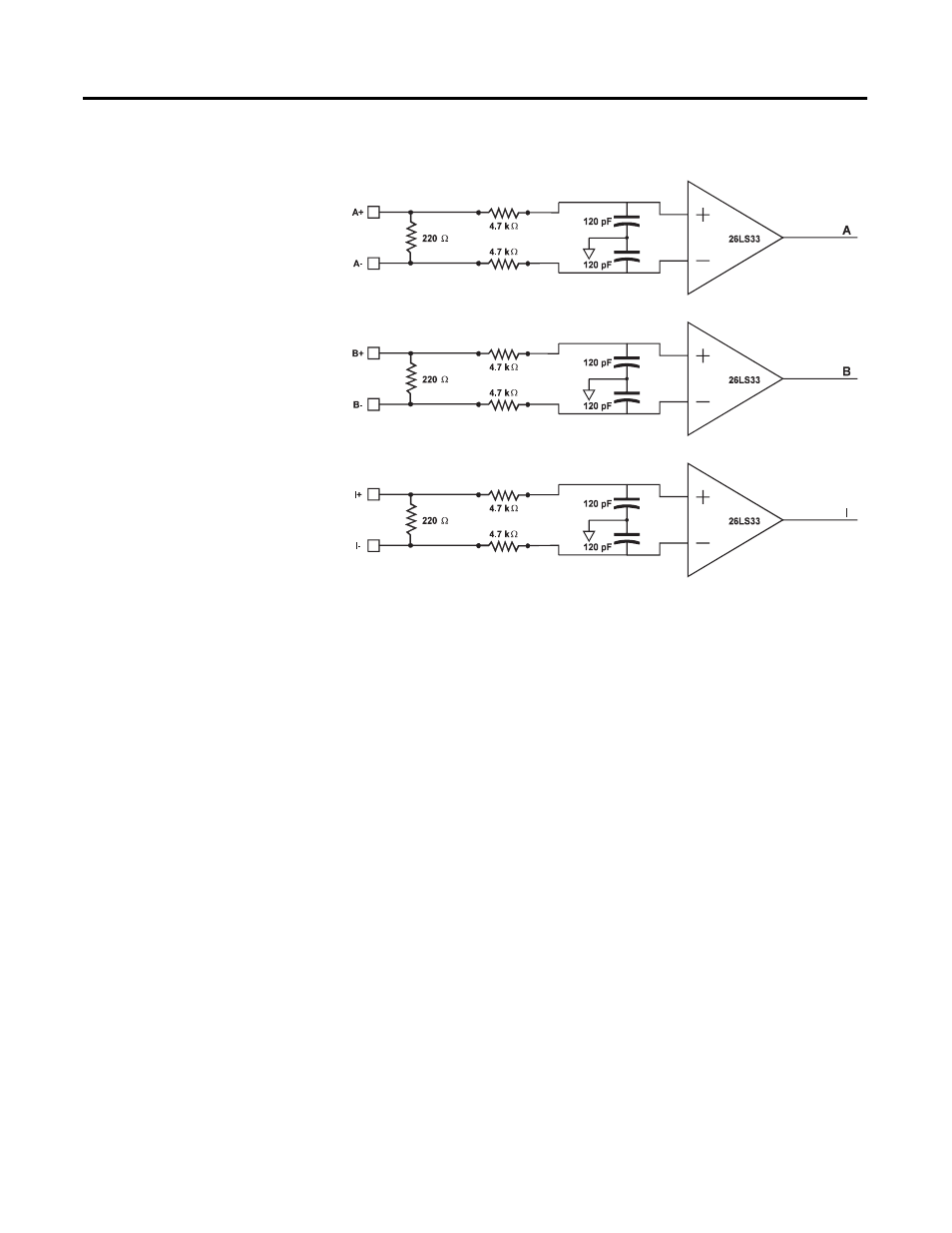

Figure 3.20
Encoder input circuitry example
