Rockwell Automation 1398-PDM-xxx ULTRA Plus Series Positioning Drive Module User Manual
Page 106
Publication 1398-5.1 — January 2000
3-42 Wire the ULTRA Plus PDM Components

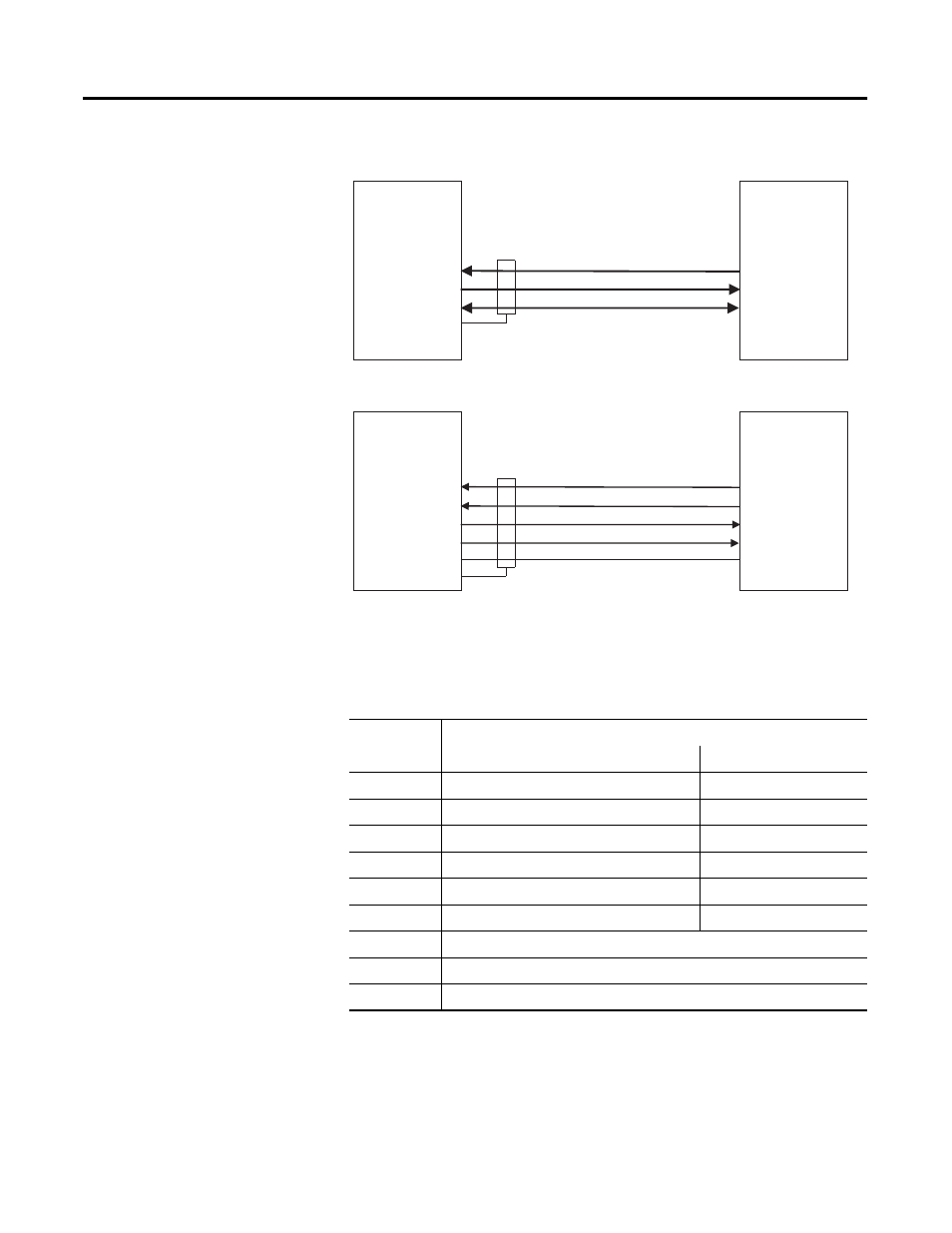

Figure 3.25
Operator Terminal RS-232 connections
Figure 3.26
Operator Terminal RS-422 connections
1398-HMI-003 ULTRA Plus PDM
(P7, Serial 1 Auxiliary)
7KH 8/75$ 3OXV 3'0 FRQQHFWV WR WKH 2SHUDWRU 7HUPLQDO 7KH FRQQHFWLRQ
FDQ EH ZLUHG XVLQJ 56 IRU GLVWDQFHV XS WR PHWHUV IHHW
Pin
Signal names
RS-232
RS-422
1
No connection
RxD+
2
RxD
RxD-
3
TxD
TxD-
4
No Connection
TxD+
5
Common
Common
6
Shield
Shield
7
No connection
8
No connection
9
No connection
Operator
Terminal
COM1
Connector
2 TXD
3 RXD
7 GND
ULTRA Plus PDM
P7
Connector
RXD- P7-2
TXD- P7-3
COM P7-5
Shield P7-6
Operator
Terminal
COM1
Connector
15 TXD-
17 RXD-
16 RXD+
ULTRA Plus PDM
P7
Connector
RXD+ P7-1
RXD- P7-2
TXD- P7-3
TXD+ P7-4
COM P7-5
Shield P7-6
14 TXD+
7 COM
