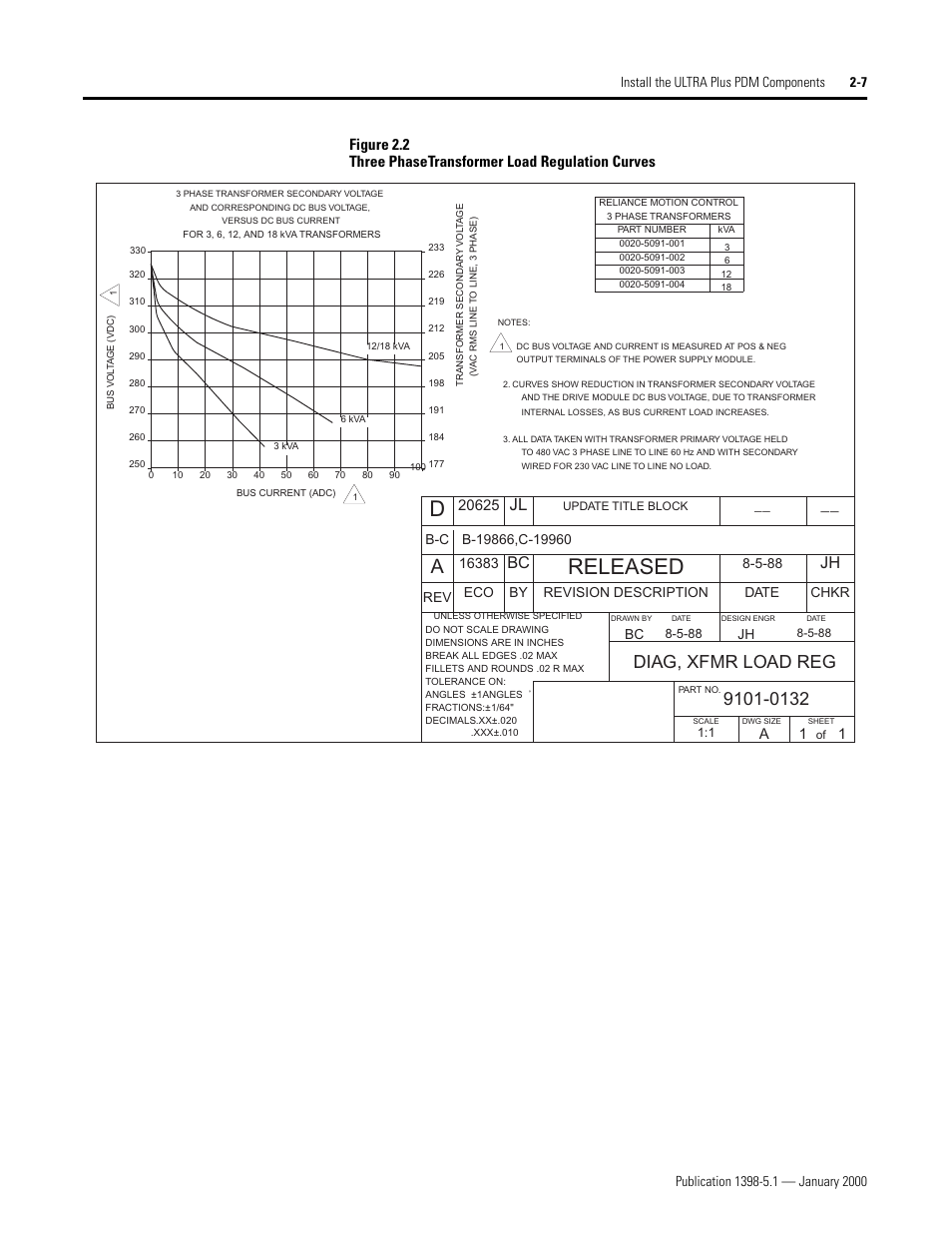

Released, Diag, xfmr load reg, Bc jh – Rockwell Automation 1398-PDM-xxx ULTRA Plus Series Positioning Drive Module User Manual
Page 25
