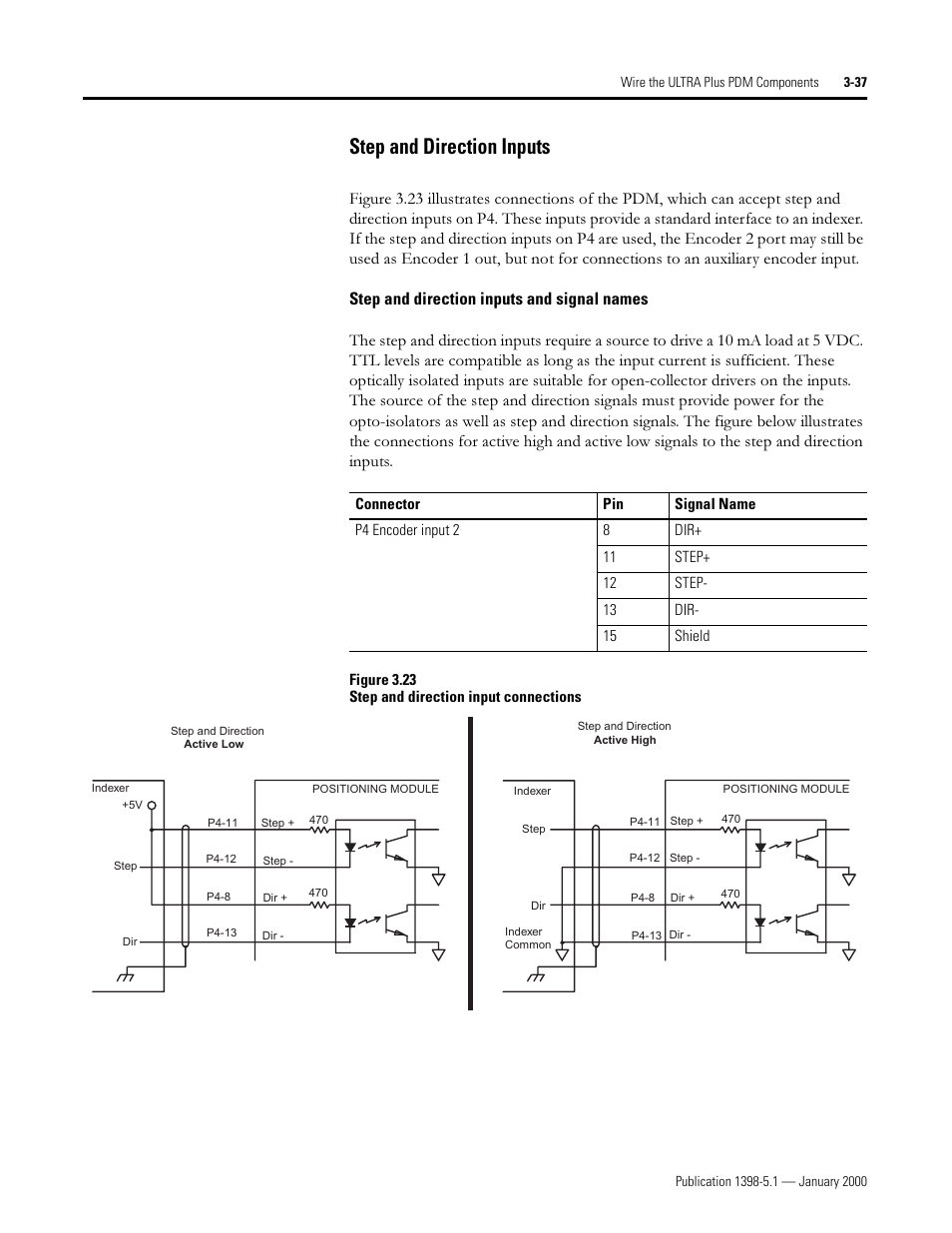

Step and direction inputs, 6whs dqg 'luhfwlrq ,qsxwv – Rockwell Automation 1398-PDM-xxx ULTRA Plus Series Positioning Drive Module User Manual
Page 101
