Page 115

Publication 1394-IN002B-EN-P — February 2004
Specifications and Dimensions
A-11
Dimensions
Within this section, you will find dimensions for the 1394 SERCOS
interface system modules and axis modules.
1394 System Module Dimensions

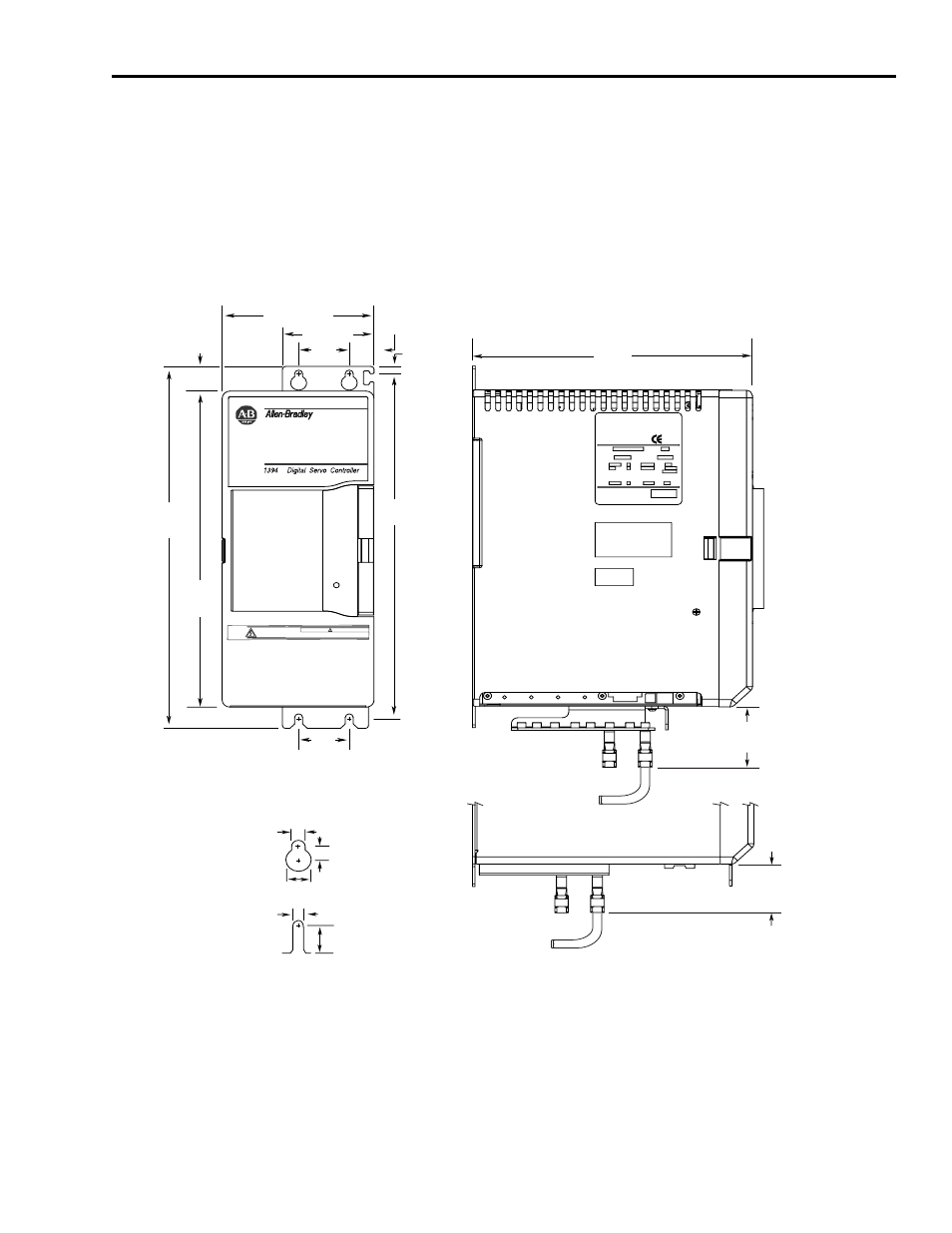

Figure A.3
1394C-SJT05-D, 1394C-SJT10-D and 1394C-SJT22-D System Module
50.0
(1.97)
50.0
(1.97)
25.0 (0.98)
91.0 (3.58)
150.0 (5.91)
Dimensions are in millimeters and (inches)
350.0
(13.78)
385.0
(15.16)
400.0
(15.75)
26.0
(1.02)
8.0 (0.32)
Status
Fastener
location
1
DANGER
RISK OF ELECTRICAL SHOCK. HIGH VOLTAGE MAY
EXIST UP TO FIVE MINUTES AFTER REMOVING POWER.
1394C-SJT22-D
System Module
Feedback Cable Clamps
280
(11.02)
All Slots Accept M6 or 1/4-20 Mtg. Screws
Mounting Hole Detail
8.0 (0.31)
8.0 (0.31)
10.1 (0.40)
15.9 (0.63)
Dimension shown is for mounting hardware
location and does not reflect the location of
the lower slot radius.
12.0 (0.47)
1
67.31
(2.65)
1394C-SJT05 or
1394C-SJT10-D
System Module
Important: Additional clearance below the system module is
necessary to provide the recommended cable bend radius. Refer to
the
Motion Control Selection Guide
(publication GMC-SG001
x
-EN-P)
for more information.
2
2
Feedback Cable Clamps
57.15
(2.25)
2
