Rockwell Automation 1333 Drive, 3/4-5HP, 230-575V Series D User Manual
Page 91
Startup
Chapter 6
6-2
Important:
1. Power must be applied to the drive when viewing or changing 1333
parameters. Previous programming may effect the drive status when
power is applied.
2. Remote circuits may be connected to the Control and Signal Wiring
Terminal Block on the Main Control Board. Confirm that all circuits are
in a de-energized state before applying power.
3. User supplied voltages may exist at the Control and Signal Wiring
Terminal Block even when power is not applied to the drive.
4. If you cannot complete a procedure, immediately refer to Appendix B
— Preventive Maintenance and Troubleshooting Common Drive
Problems. Do not proceed. Determine the cause of the problem and
correct the problem first, then return to the startup procedure.

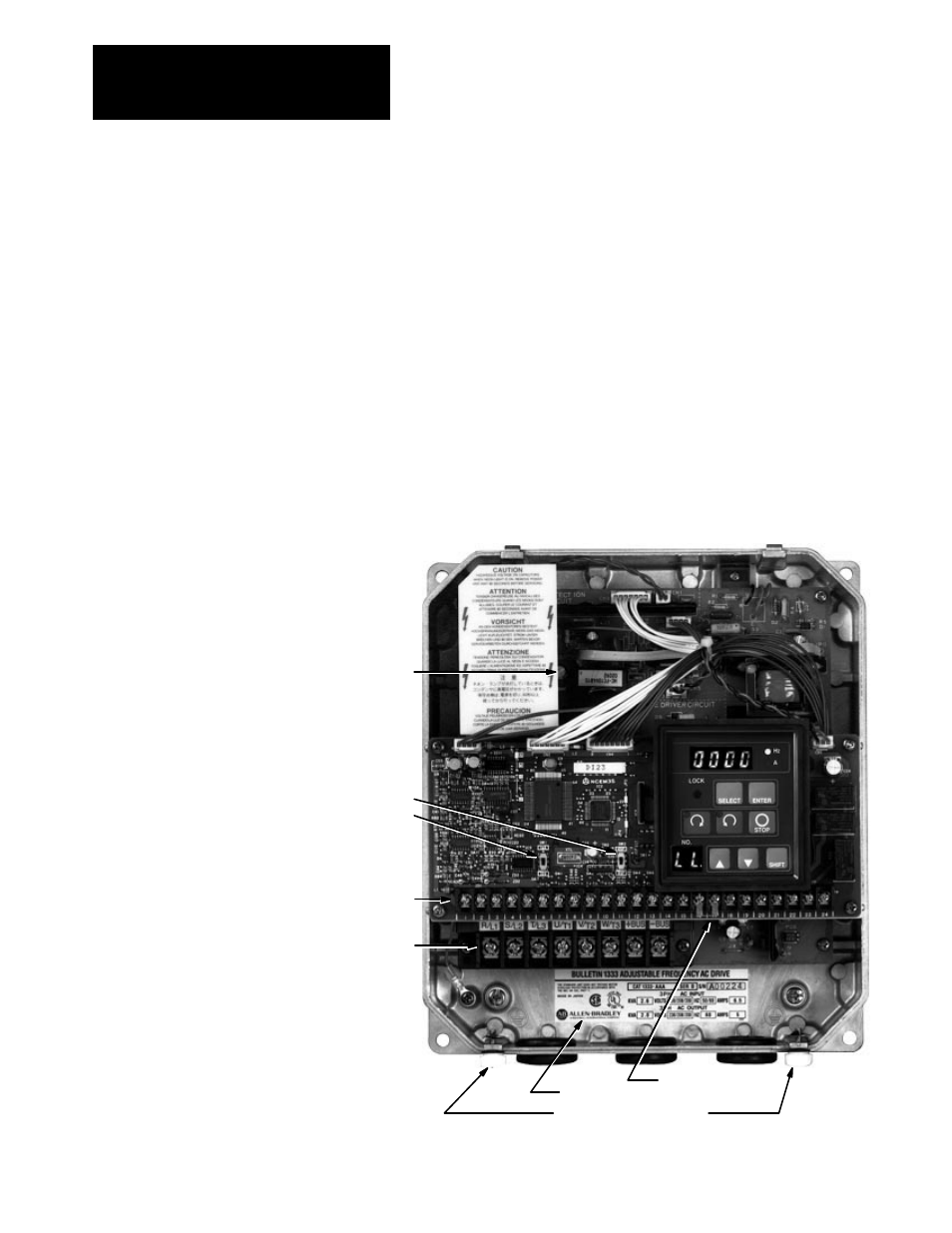

Auxiliary Interlock
Drive Control Board Switches
SW2
SW1
Drive Cover Thumbscrews
DC Bus Neon Light
Drive Nameplate
Control and Signal Wiring Terminal Block
Power Terminal Block
Figure 6Ć1 -- 3/4Ć5ĂHP (.55Ć4ĂkW) Drive
