Bulletin 1333 Options
Appendix A
A-3
Term 3
Term 10
Term 11

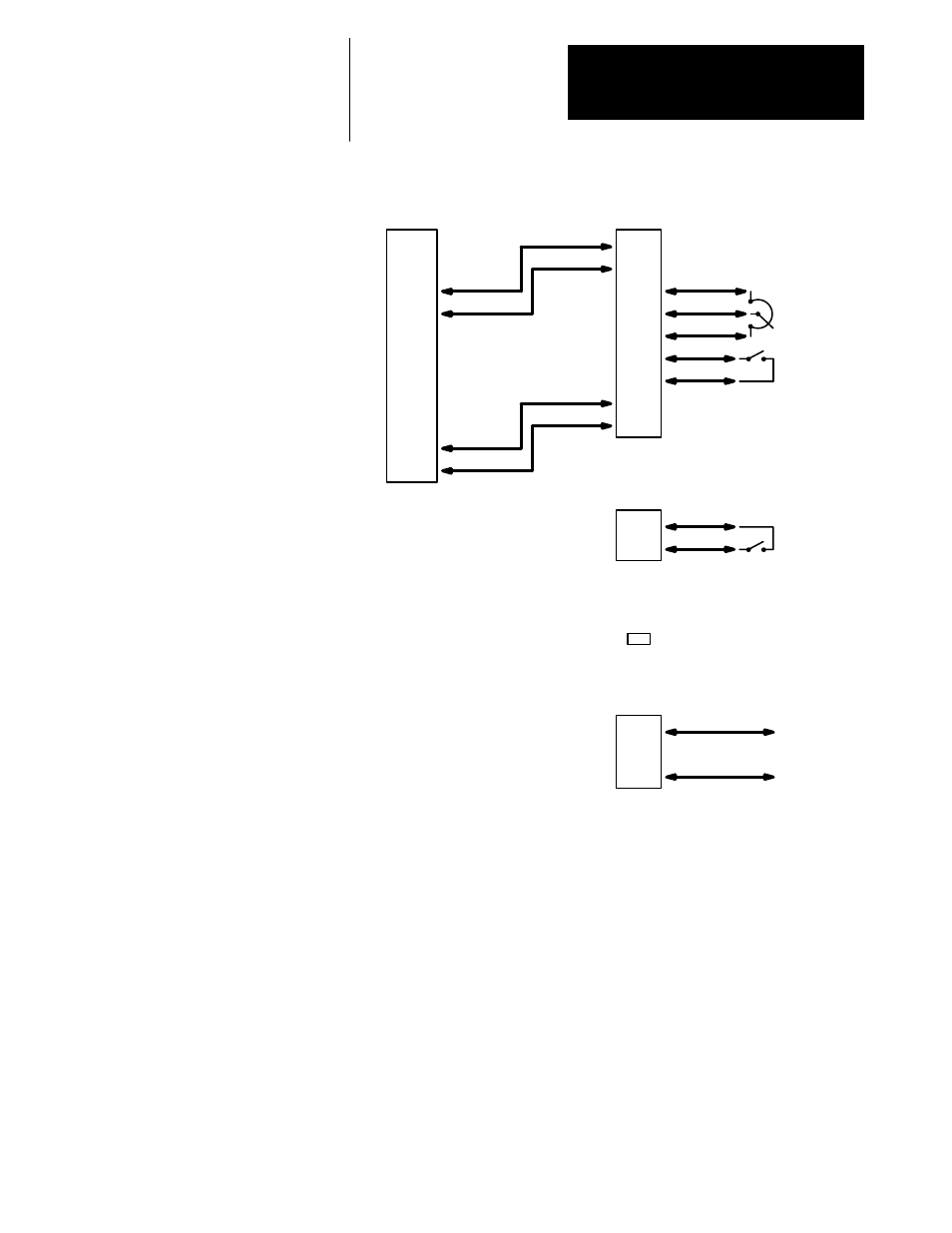

Bulletin 1333 Series D
Control and Signal Wiring Terminal Block
Term 3
1333ĆMODĆG4
BCD Interface Board
Term 4
1333ĆMODĆG4
BCD Interface
Drive Ratings AABĆCAB
Term 4
Terminal Block TB3
Term 1
Term 2
Term 5
Term 7
Term 6
Term 9
Term 8
1333ĆMODĆG4
BCD Interface Board
Terminal Block TB4
Term 3
Term 1
Term 2
1333ĆMODĆG4
BCD Interface Board
Terminal Block TB2
Term 1
Term 2
Remote
Manual
Speed Pot
Remote
Manual
Direction Switch
115V AC
Supply Signal
Remote
Auto/Man Switch
Remote
115V AC
1ĆPhase
AC Supply
Customer Supplied
Components
1333ĆMODĆG4
BCD Interface Board
Jumper J3 set for 115V
Speed Control
To allow the 1333 Series D to accept the 1333-MOD-G4 0-10V DC speed
signal, Parameter 9 Local/Remote Speed Enable must be set to 2.
Forward/Reverse Control
If the 1333 Series D is to have its forward/reverse operation controlled
from the Local Control and Programming Panel, Parameter 8
Local/Remote Control Enable must be set to 0 or 2.
If the 1333 Series D is to have its forward/reverse operation controlled by
the BCD Interface Board, Parameter 8 Local/Remote Control Enable must
be set to 1 or 3.
Important: If Parameter 8 is set to 1 or 3, an external means of start/stop
control must be connected to the Control and Signal Wiring Terminal
Block. Refer to Chapter 4 for additional information.
