Installation and Wiring
Chapter 4
4-25
Terminals 18 and 17
Reset Lockout
These terminals may be jumpered or not jumpered to determine how the
1333 is reset after a fault.
When the terminals are jumpered, a drive may only be reset and restarted
by removing then re-applying input power to the drive.
When these terminals are left open, the drive will be reset and restarted as
programmed by Parameters 47 and 48.
Terminals 19 and 20
Programmable Contact CR1
These terminals allow drive supplied relay contact CR1 to be used in
external circuits. When power is applied to the drive, the N.O. contact will
remain N.O. until a programmed signal is received. The contact is
programmed by Parameters 22 and 24 to signal that the drive is at the
programmed set speed or 140% of rated drive current. The contact is
isolated from Logic Common and other drive circuitry.

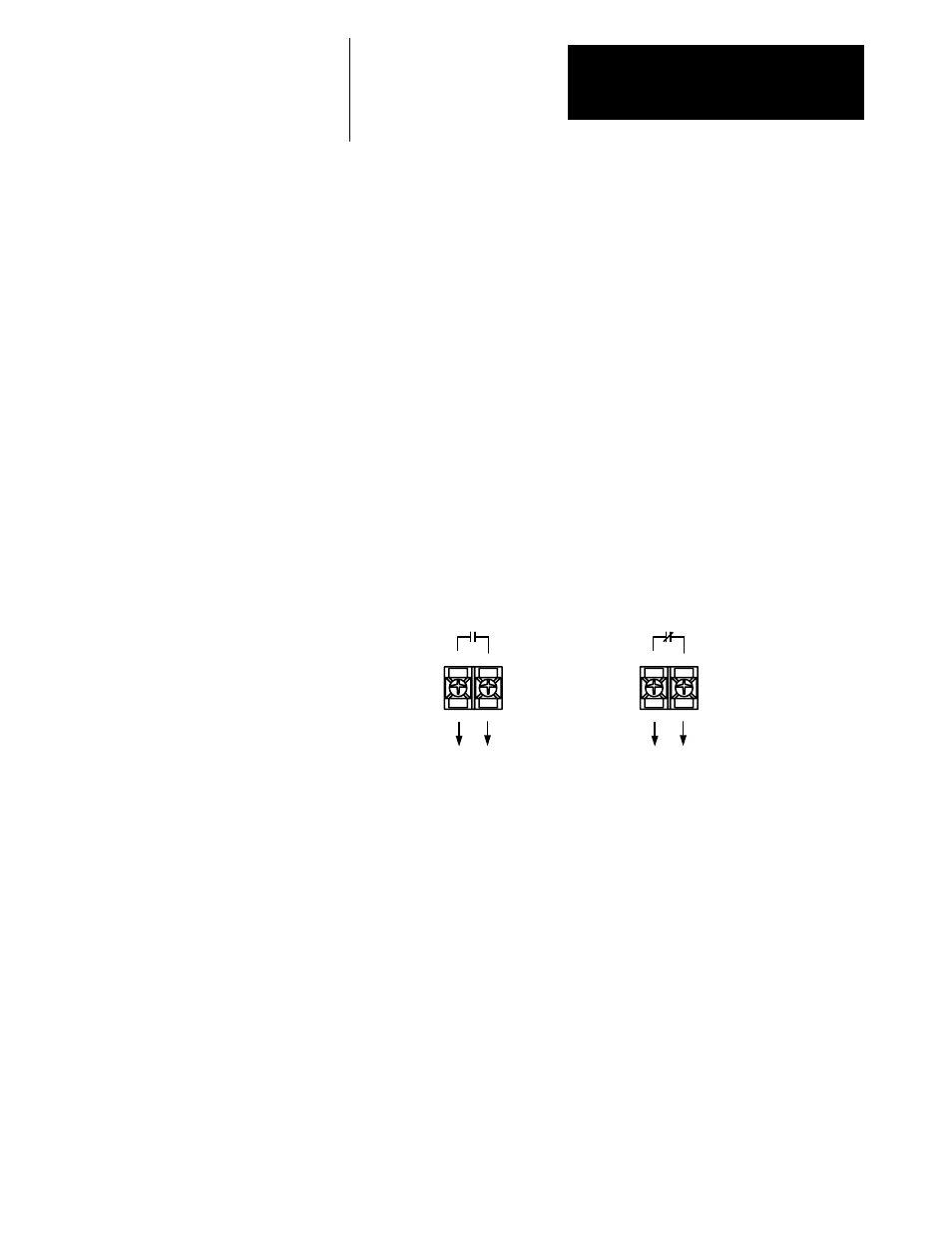

CR1
CR1 Out
19 20
CR1
CR1 Out
19 20
Programmed Signal At Set Speed or
140% of Rated Drive Current Not Present
Resistive rating: 120V AC or 30V DC, 1 Amp.
Inductive rating: 120V AC or 30V DC, 0.5 Amps.
