Chapter
5-1
Operation and Programming
Local Control and
The Local Control and Programming Panel provides a convenient means to
Programming Panel
locally control the operating functions of the Series D Bulletin 1333 drive
including start/stop, forward/reverse, and speed. The Local Control and
Programming Panel also contains two digital displays. A Main Display to
show drive running values, codes, and parameter values, and a Mode
Display to show the drive mode and control source. Finally, the Local
Control and Programming Panel includes the controls necessary to
program the various parameters that will define your drive.

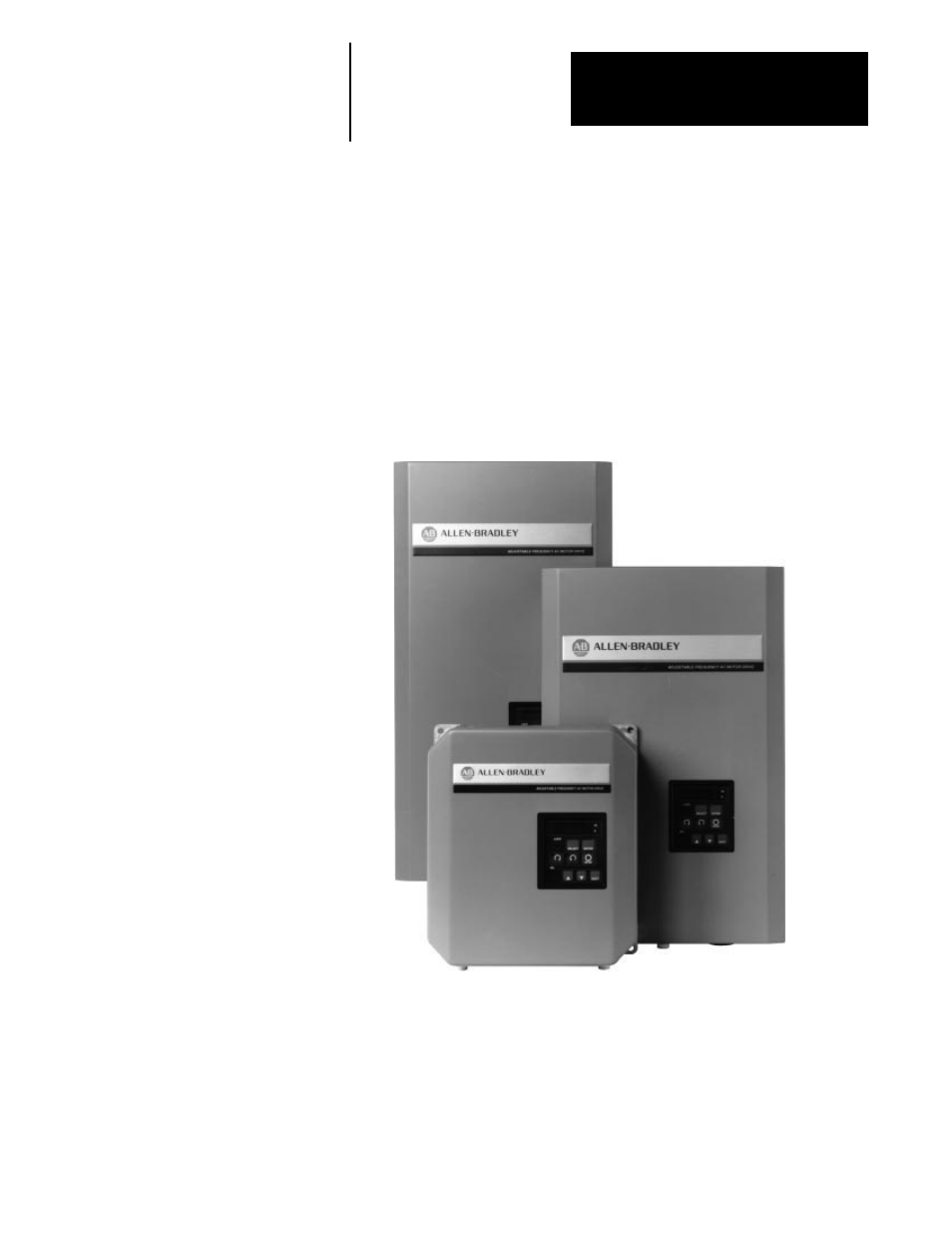

Figure 5Ć1 -- The Bulletin 1333 Series D
With two exceptions, the drive must always be stopped to allow drive
programming.
•
A 0-1 mA Analog Output Meter may be calibrated while the drive is
running by accessing Parameter 55.
•
A 0-10V DC Analog Output Meter may be calibrated while the drive is
running by accessing Parameters 56.
