Installation and Wiring
Chapter 4
4-2

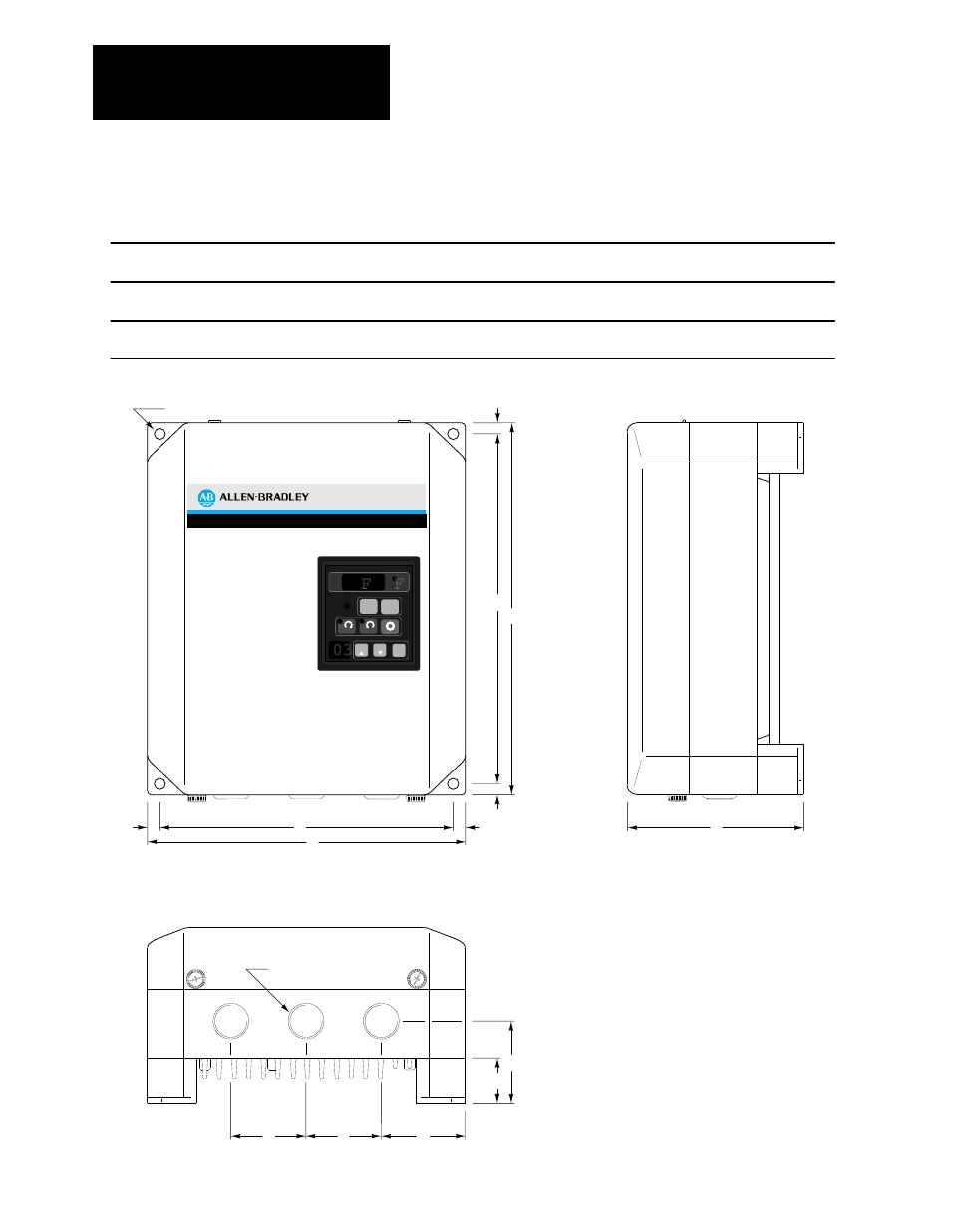

ZAAĆCAA 230V Dimensions, Weights and Conduit Entry Locations
Nominal Dimensions and Weights in Inches (Millimeters) and Pounds (Kilograms)
HP
kW Rating Code A B C D E F G H I J K Weight
3/4, 1 .55, .75 ZAA, AAA 8.90 10.04 4.72 8.27 9.45 0.30 0.30 2.48 1.97 2.24 1.26 6.0
(226) (255) (120) (210) (240) (8) (8) (63) (50) (57) (32) (2.7)
2 1.5 YAA 8.90 11.26 5.31 8.27 10.63 0.30 0.30 2.48 1.97 2.83 1.85 8.0
(226) (286) (135) (210) (270) (8) (8) (63) (50) (72) (47) (3.6)
3, 5 2.2, 4 BAA, CAA 10.20 13.54 6.90 9.45 12.80 0.30 0.30 3.13 1.97 4.13 2.80 20.0
(259) (344) (175) (240) (325) (8) (8) (80) (50) (105) (71) (9.1)
(NEMA Type 1 –– Front)
F F D
A
G
G
E
B
C
(NEMA Type 1 –– Side)
0.25 IN (6.35 MM) DIA. MOUNTING HOLES
I I H
K
(NEMA Type 1 –– Bottom)
J
0.905 IN (23.0 MM) DIA.
CONDUIT ENTRY HOLES
ADJUSTABLE FREQUENCY AC MOTOR DRIVE
LOCK
Hz
A
SELECT
SHIFT
ENTER
STOP
NO.
F F
03
