64 Rockwell Automation Publication 1441-UM001B-EN-P - September 2012
Chapter 2 Configuring the Dynamic 2500 Data Collector
Using Memory Cards The Dynamix 2500 data collector can store program information and collect data
internally and on a memory card. The data collector accepts a standard SDHC
storage card up to 16 GB that is supported with a Microsoft Windows CE driver.
The storage card can be inserted when the instrument is powered on or off.
Insert and Remove a Storage Card
You insert the memory card into the collector through the base cover at the
bottom of the instrument. The memory card can be inserted while the Dynamix
2500 data collector is powered on or off.
Insert a Storage Card
Follow these steps to insert a storage card.
1. With the bottom of the Dynamix 2500 data collector facing you, press
down the two latches of the base cover.
2. Pull the base cover towards you.

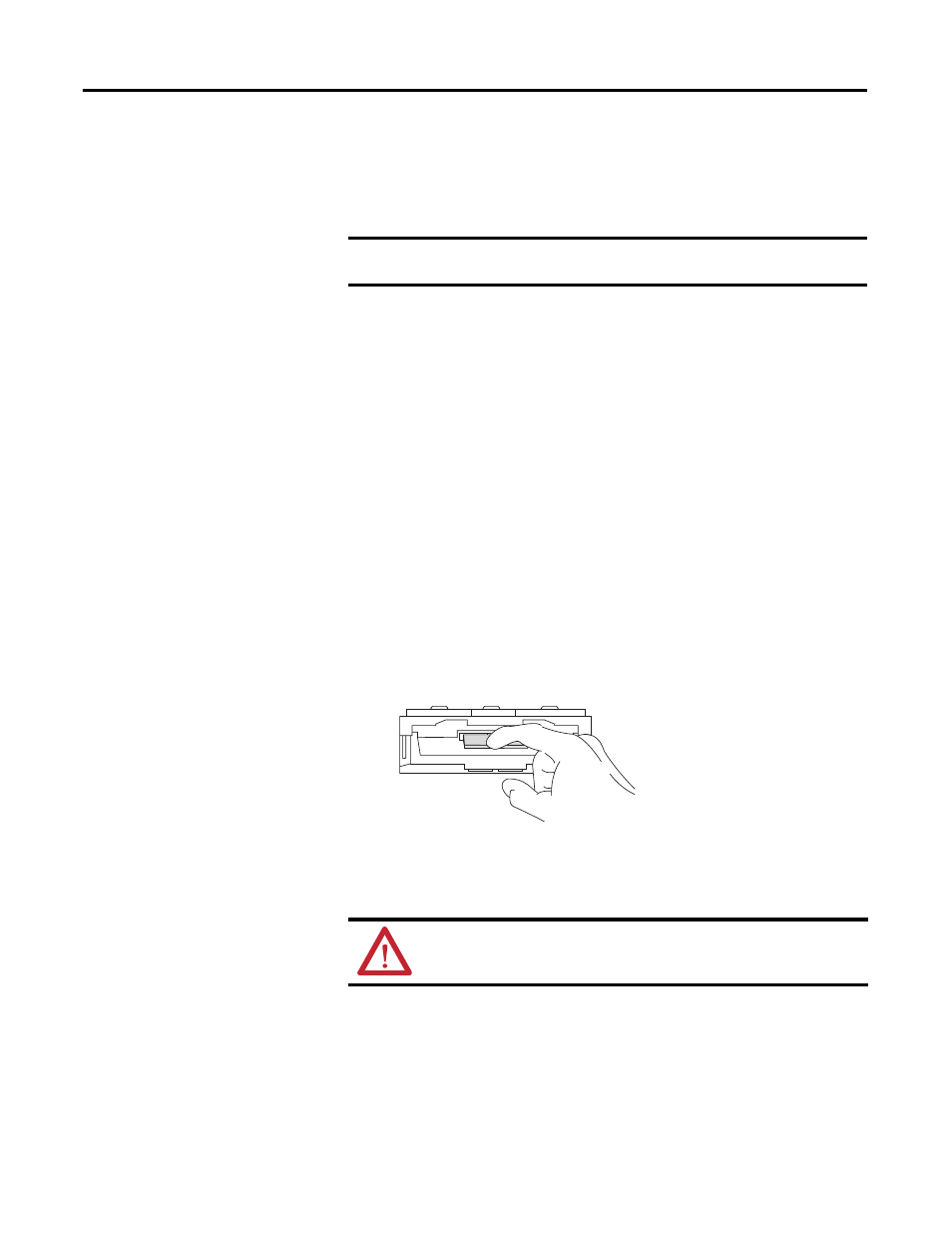

3. With the memory card contact side facing up, gently slide the card into the
instrument until it is firmly seated in place.
4. Close the base cover.
Remove a Storage Card
Follow these steps to remove a storage card.
1. With the bottom of the Dynamix 2500 data collector facing you, press
down the latches of the base cover to open.
2. Press the card to release and gently remove the card.
IMPORTANT The Dynamix 2500 data collector is only certified for use with the Sandisk
Secure Digital (SD) card SDSDx-yyy.
TIP Due to the limitations of the Windows CE operating system. The largest
single file size can be 2 GB.
TIP The SD storage card must be initialized/formatted before you can use it
in the data collector. The data collector does not initialize/format the
cards.
WARNING: To prevent loss of route data, it is recommend that memory
cards (SDHC) are properly formatted prior to use to FAT 32 using a
computer before use.
