100 Rockwell Automation Publication 1441-UM001B-EN-P - September 2012
Chapter 3 Setting Up Measurements
Typical Time Waveform Measurement Definitions

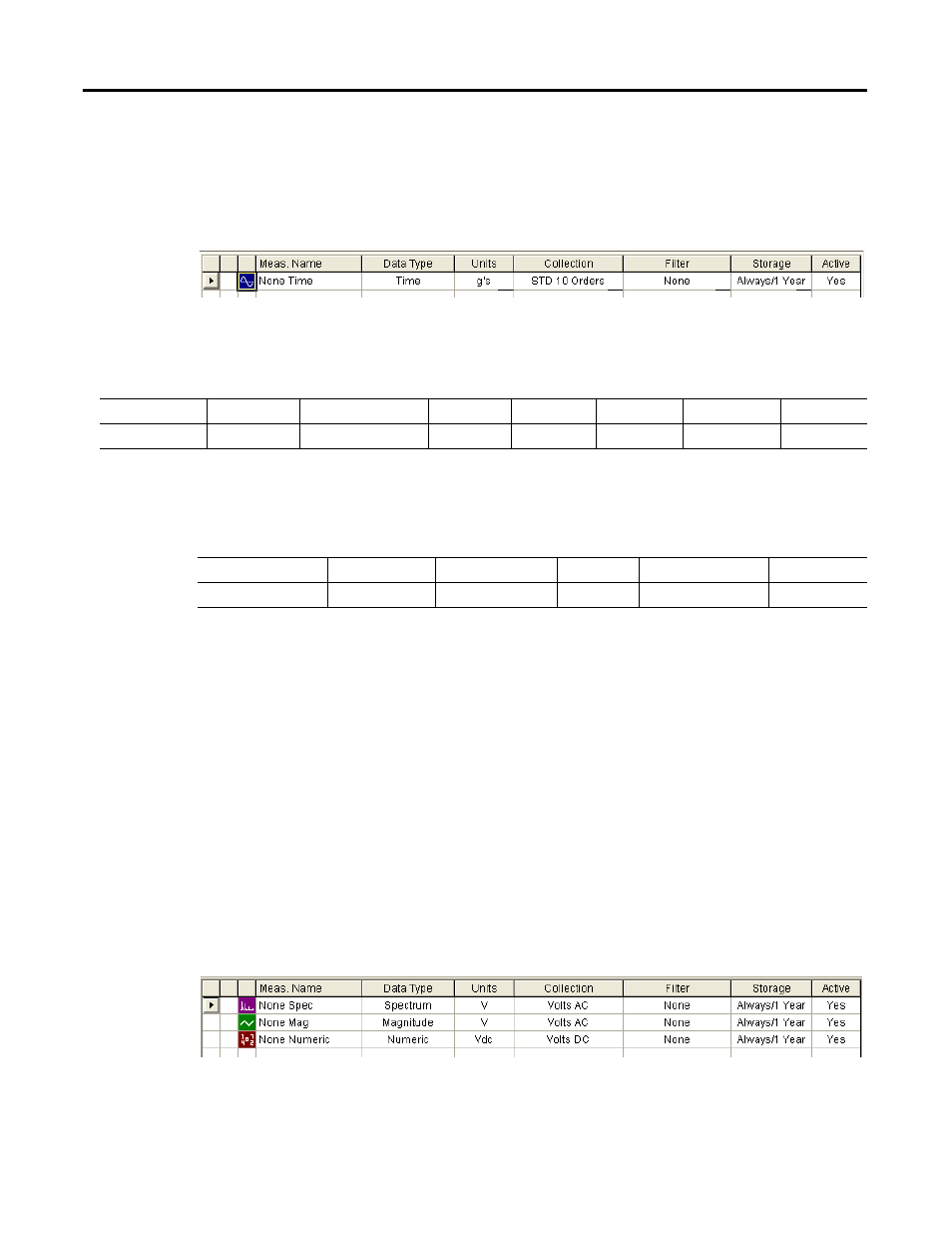

This figure shows the setup for a typical time waveform measurement definition.
Figure 20 - Time waveform measurement definitions
The following table shows the collection specification .
The following table shows the transducer specification in the collection
specification.
Voltage Measurement Definitions
The Emonitor software and the Dynamic 2500 data collector support
measurement definitions with units of volts (AC or DC). You can collect several
different types of voltage measurements. This topic shows the typical
measurement definition setup for three voltage measurements.
Voltage is similar to other units in that you can collect magnitude, numeric,
spectrum, and time waveform voltage measurements.
Typical Voltage Measurement Definitions
This figure shows the setup for three typical voltage measurement definitions.
Figure 21 - Voltage measurement definitions
Table 34 - Collection specification for time waveform measurement definition
Transducer Window Signal Detection Fmax Lines Phase Order Norm? Averages
Accelerometer Hanning Peak 2 kHz 400 No No 1 linear
Table 35 - Transducer specification in time waveform collection specification
Name Base Unit Input Type Units Calibration Value DC Offset
Accelerometer Acceleration ICP Accel g’s 100 0
