Loading and Unloading

Chapter 4

The previously selected data collector automatically changes to ‘No.’

4.

In the Baud column, choose the enPAC 2500 USB (use this collector for
the Dynamix 2500 data collector) and set the baud rate to the same rate
you selected in the Dynamix 2500 data collector.

The baud rate must be set in the data collector to 115200.

5.

In the Protocol column, choose M81 as the Protocol.

6.

Click Advanced.

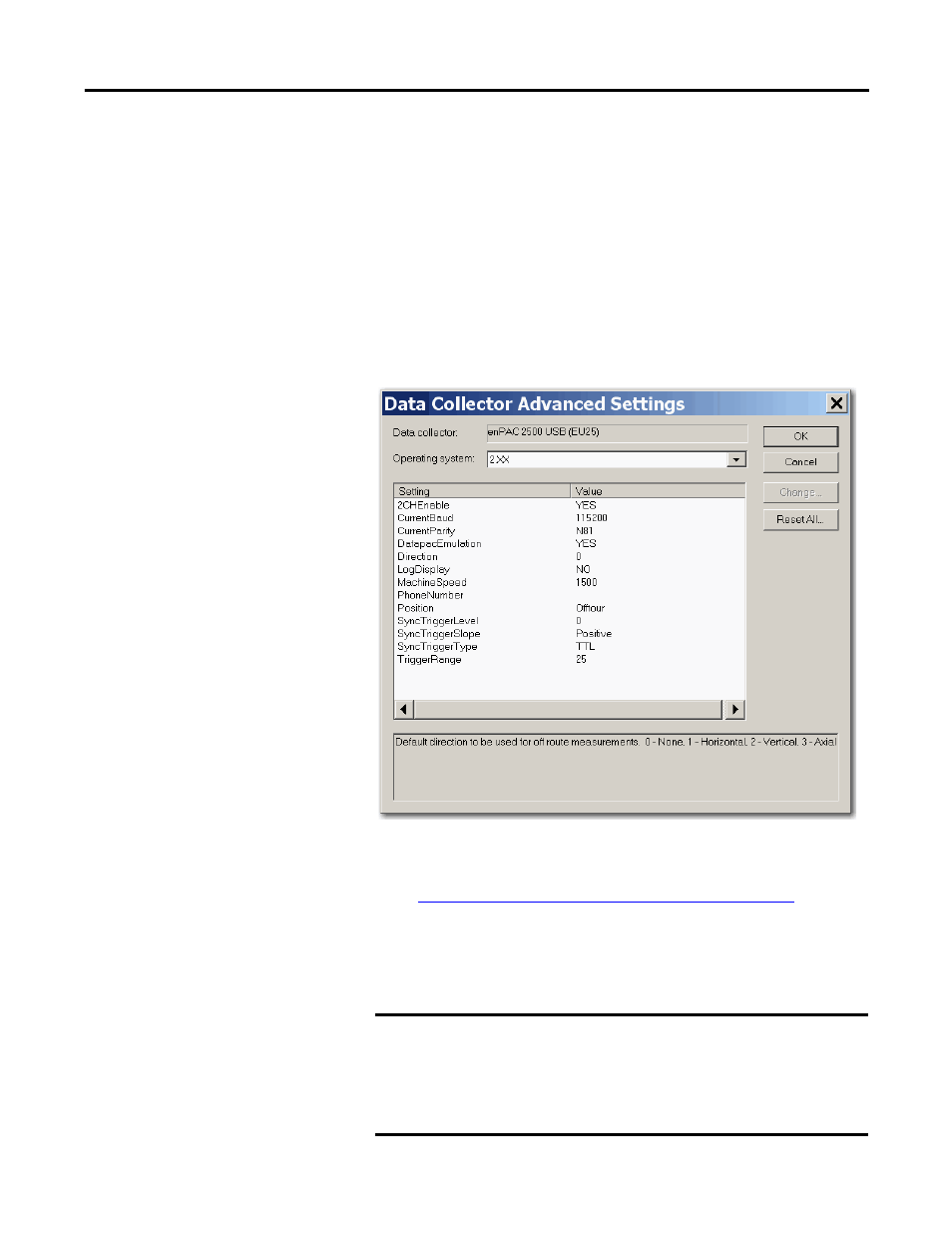

The Advance Settings dialog box appears.

The Advance Settings dialog box lets you change some of the data
collection characteristics of the Dynamix 2500 data collector.

See

Data Collector Advanced Settings Parameters on page 112

for a

description of the parameters.

TIP

You must log in with a Supervisor- or Administrator-level user
name and password to make any changes to these data collector
settings.

IMPORTANT

Changing the configuration options for the data collector may
prevent the Emonitor software from communicating with the data
collector, or may cause the data collector to malfunction.

Make sure you understand a configuration option before you
change it.
