Rockwell Automation Publication 1441-UM001B-EN-P - September 2012
55
Configuring the Dynamic 2500 Data Collector Chapter 2
Setting Up the Dynamix
2500 Data Collector
Before you begin to take readings, you need to configure the instrument
parameters by using the Setup Utility, Instrument Configuration and Data
Collection screens.
Configure the Data Collector
Using the Setup Utility, you can configure the global options for your data
collector.
Follow these steps to configure the data collector.
1.
Select Setup Utility from the Main Menu and press Enter.

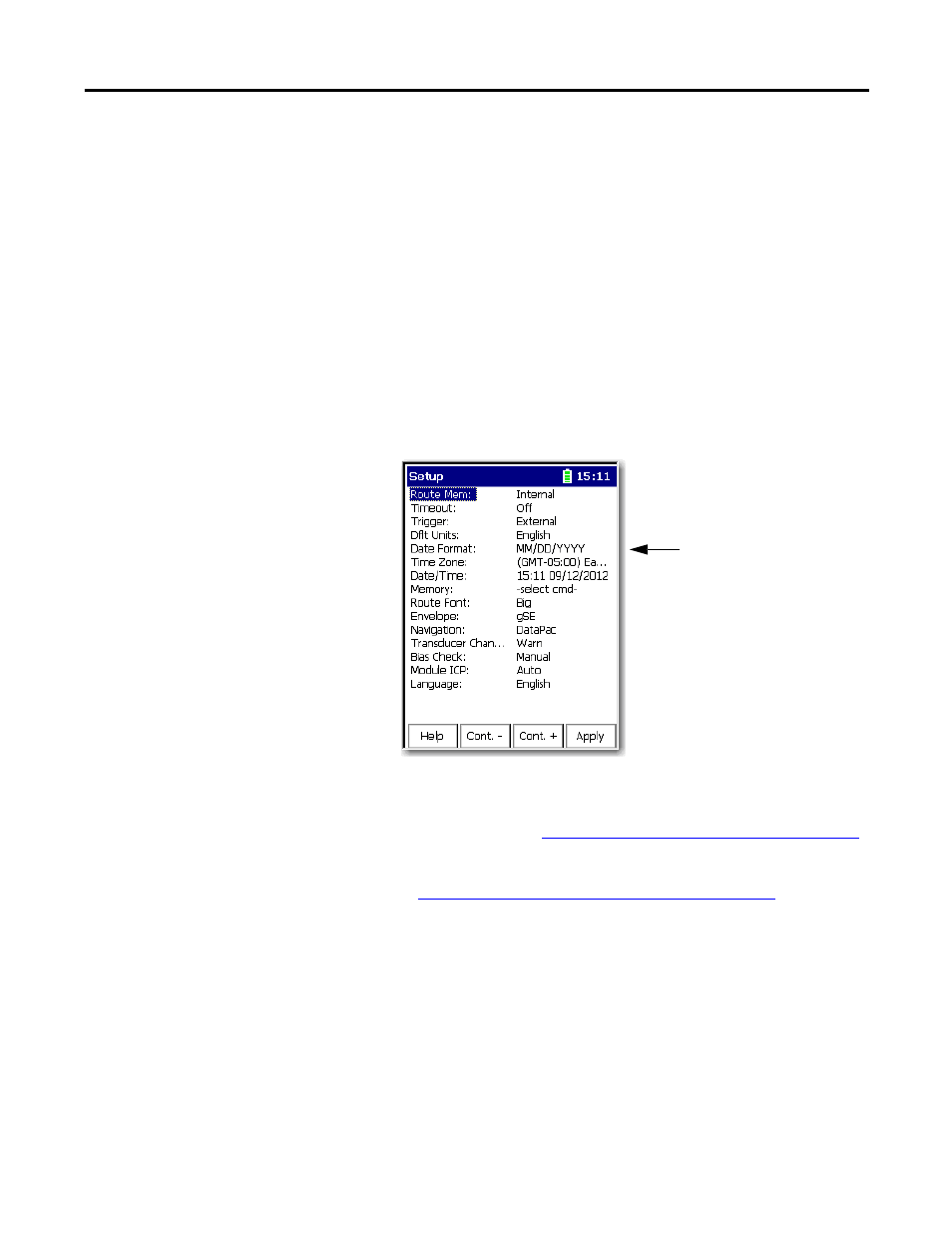

The Setup screen appears.
2.
Review the default values and edit if necessary.
Use the descriptions in
Instrument Configuration Parameters on page 59
to help you configure these options.
Dynamix 2500 Data Collector Setup Screen on page 48
for help on
editing the parameters.
3.
When finished, press F4 (Apply) to return to the Main Menu.
For the Route data to be
accurately time based, you must
set the date and time before
leaving this screen.
