Configuring the Dynamic 2500 Data Collector Chapter 2
Dynamix 2500 Data
Collector Main Menu This section introduces you to the screens that appear when operating the
Dynamix 2500 data collector.
Main Menu
You use the Main Menu to navigate to the different programs and optional
extension modules installed in the Dynamix 2500 data collector. The Main
Menu is where you can access various tasks, such as collecting data, defining the
setup options, and reviewing data.

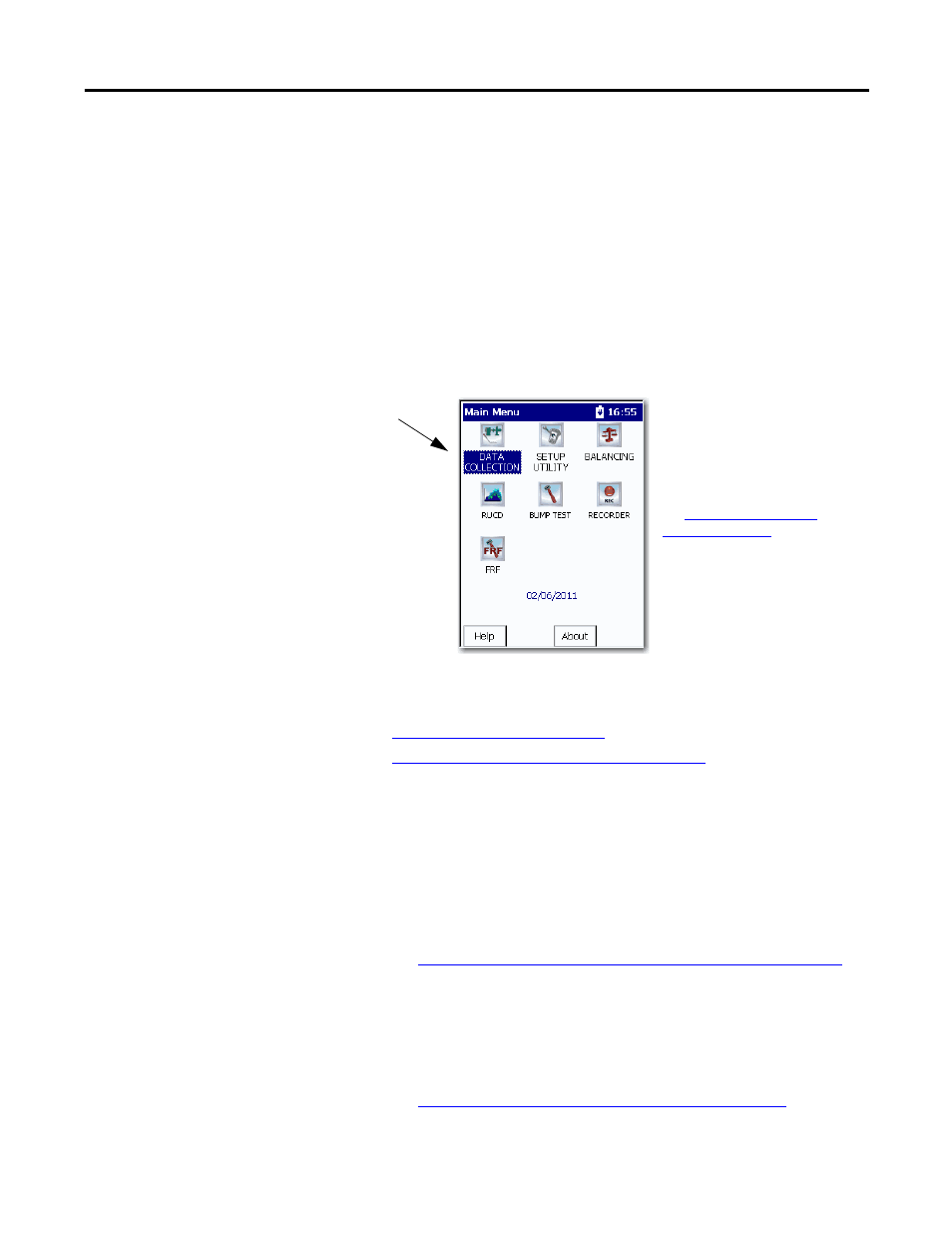

Figure 9 - Dynamix 2500 Main Menu
For more information about the optional extension modules, see:
• Additional Resources on page 12 .
• Install Optional Extension Modules on page 205 .
The Main Menu includes two standard options:
• Data Collection
Select the Data Collection option to collect both Route and Offroute
(unscheduled in the Emonitor software) data. You can view any data stored
in the instrument.
See Dynamix 2500 Data Collector Data Collection Screen on page 51 for
details on data collection settings.
• Setup Utility
Select the Setup option to define global options for collecting data.
See Setting Up the Dynamix 2500 Data Collector on page 55 for details
on global settings.
To make a selection from
the Main Menu, highlight
the option using the arrow
keys and press Enter.
Balancing, RUCD (Run Up Coast
Down), Bump Test, Recorder, and
FRF (Frequency Response Function
are optional extension modules.
See Install Optional Extension
Modules on page 205 for more
information.
