Basic Component Removal Procedures Chapter 2
Stacking Panel
See
Chapter 1 - Drive Components
to locate the component detailed in these
instructions.
Remove Components
1.
Read and follow the
Safety Precautions on page 8
and
Important Initial
Steps on page 10
.
2.

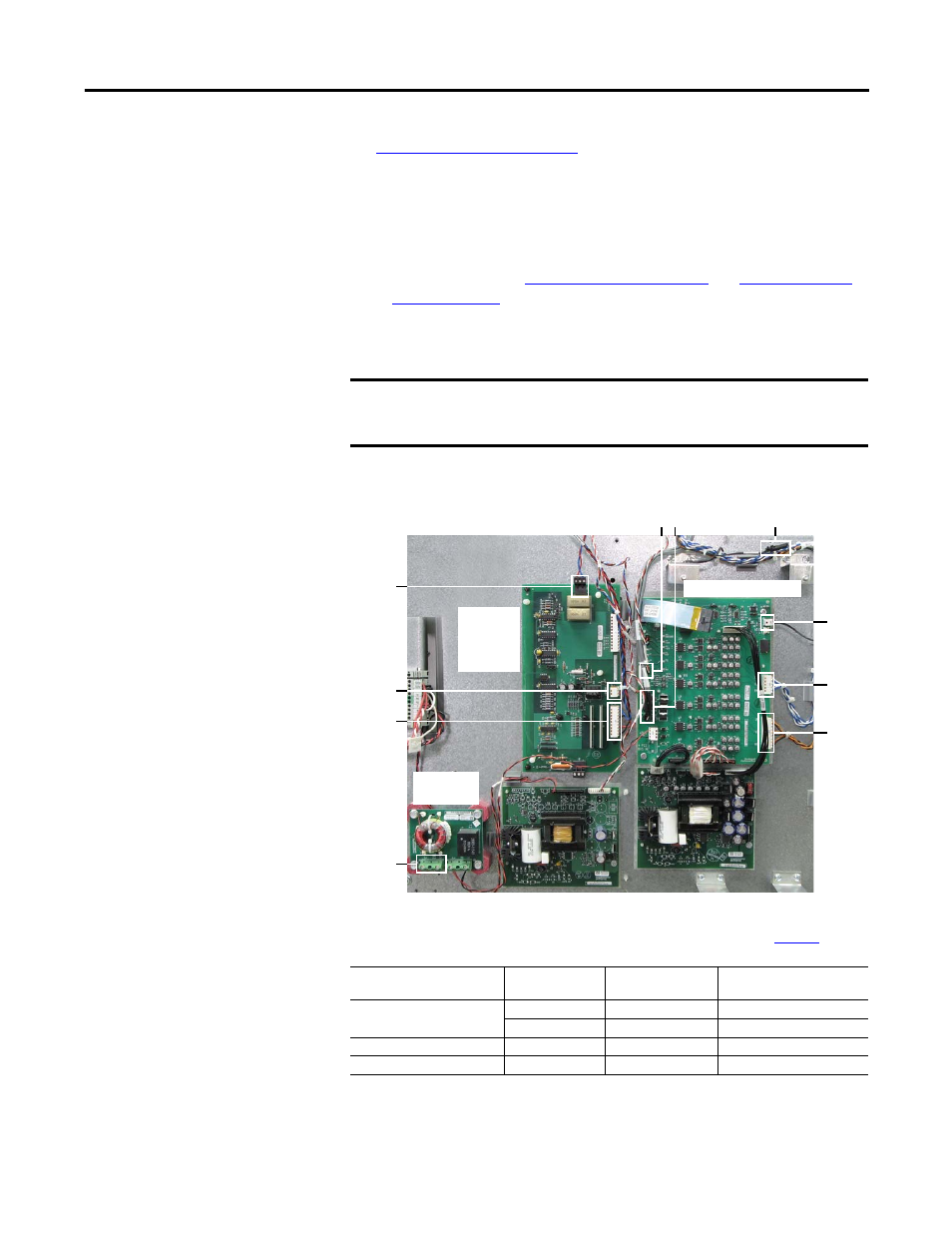

All wiring and terminals attached to the Stacking Panel are shown below.
Label any unidentified wiring and terminals before disconnecting.
IMPORTANT
The figure below is shown with the Blower Control Panel removed for
visual clarity. However, you don’t need to remove the Blower Control
Panel to remove the Stacking Panel.
TIP
This step may be performed more easily if you first remove the
Communications Panel following the instructions on
.
Connected Component
Label on Wire
or Connector
Label on Board
Notes
Precharge Board
J1, J2
J1, J2
TB2
TB2
For DC input only.
DC Bus Filter Board
TB2
Thermal Sensor Wire
J8
J18
J23
J6
Shown with Main Control Panel, Blower Control Panel and Safety Shield Removed
J14…J16
J1
J2
TB2
TB2
Precharge
Board
(DC input
shown)
DC Bus
Filter Board
Power Interface Board
Thermal Sensor
Wire
