MacDon D60 Draper Headers - Manual (Page 68)

SECTION 7. OPERATION
Form 169441 66 Revision B

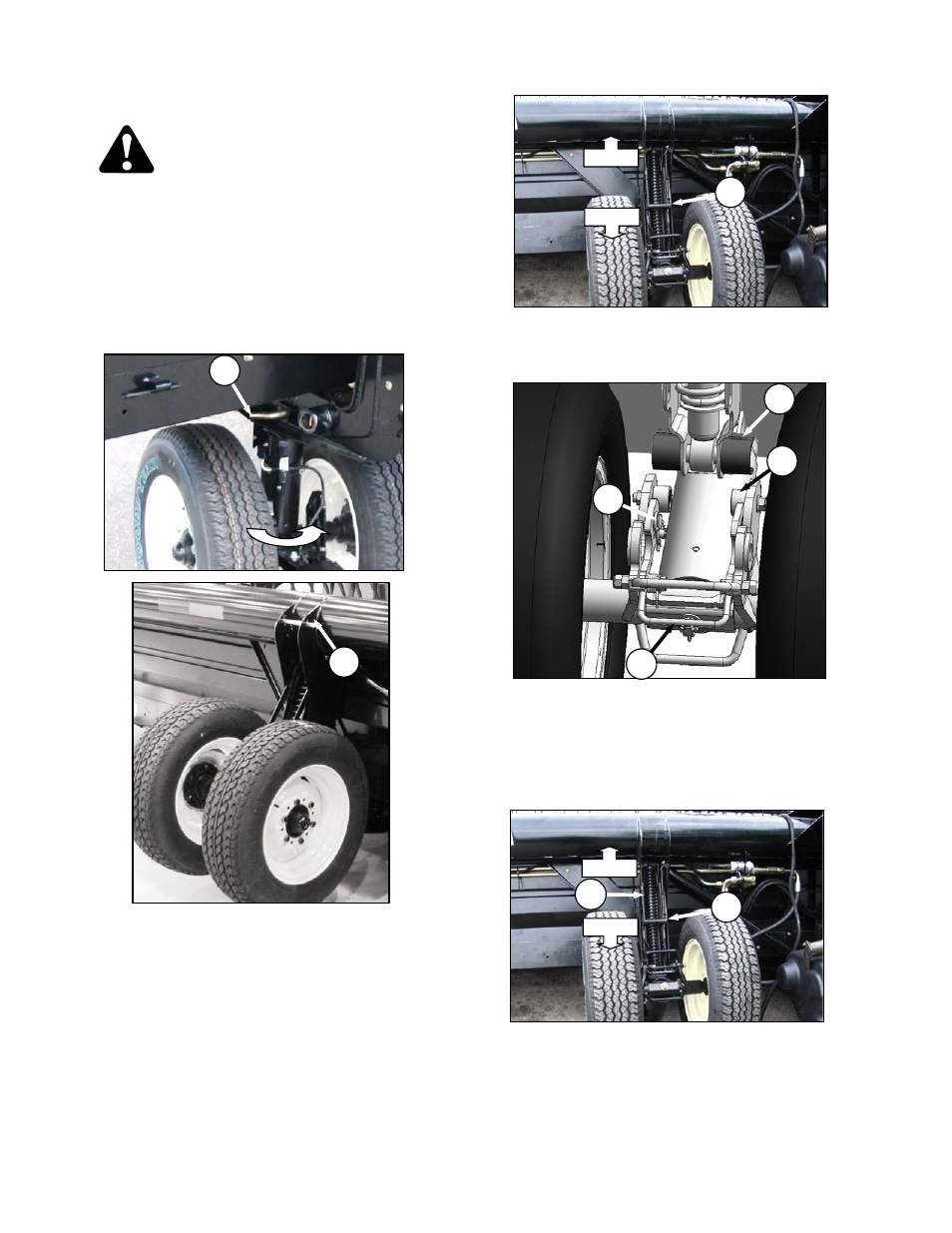

7.21.3.1 Front Wheels To Field
DANGER
To avoid bodily injury or death from
unexpected start-up or fall of raised header,
stop engine, remove key and engage header
lift cylinder stops before going under header
for any reason.
a. Raise header fully.
b. Swivel the wheel assembly so that wheels are
aligned with lower frame.
c. Remove pin (A), and pull wheel assembly
towards rear of header. Store pin (A) in hole at
top of leg.
d. Pull handle (C) to release and lower the linkage.
e. Align lift hook (D) with lug (E), and lift wheel
assembly to engage pin in hook. Ensure latch (F)
is engaged.
f. Install clevis pin (B), and secure with hairpin.
g. Lift wheel assembly to desired height, and slide
linkage (F) into appropriate slot in vertical
support.
h. Push “down” on handle (C) to lock.
A
A
Release
Lock
TRANSPORT TO FIELD - FRONT WHEELS
C
TRANSPORT TO FIELD - FRONT WHEELS
E
D
F
B
Release
Lock
F
TRANSPORT TO FIELD - FRONT WHEELS
C
