a. Raise header, stop engine, remove key, and
engage lift cylinder lockouts. Refer to Windrower
Operator’s Manual.
b. Open/remove header endshields. Refer to
Section 8.4 ENDSHIELDS.

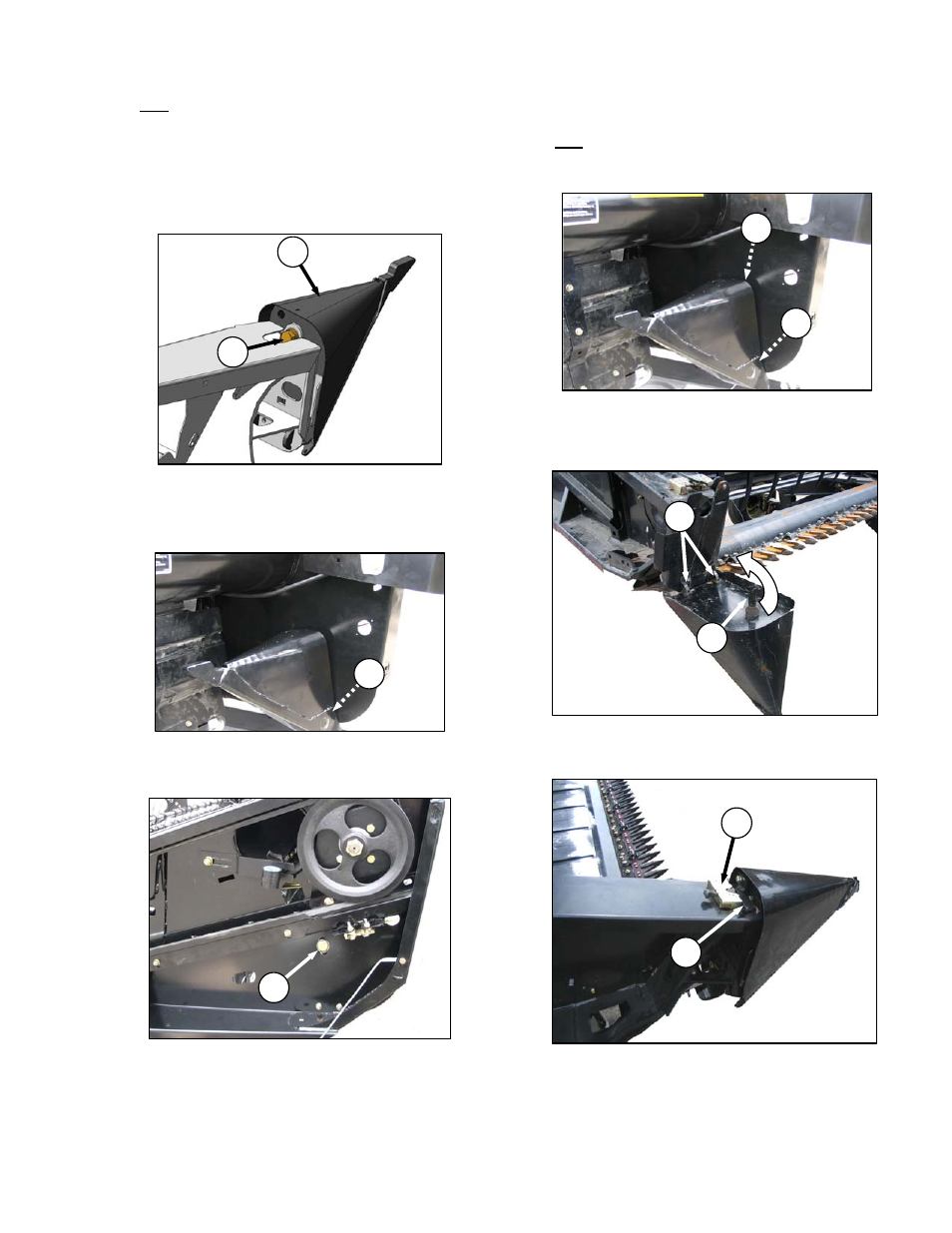

c. Remove bolt (A), lock-washer, and flat washer,
and lower divider (B).
d. Lift divider off endsheet.
e. Hook lugs (C) on divider into slots on inboard side
of endsheet.
f. Install bolt (D), lock-washer, and flat washer to
secure divider to endsheet.
g. Replace header endshields.
7.12.11.2.2 Installation
D60
a. Open/remove header endshield.
b. At divider storage location, lift divider to
disengage lugs (E) at lower end, and then lower it
slightly to disengage pin (F) from endsheet.
c. Position crop divider as shown by locating lugs
(E) in holes in endsheet.
d. Lift forward end of divider until pin (F) at top of
divider engages and closes latch (G).
e. Push safety lever (H) down” to lock pin in latch.
(continued next page)
