SECTION 7. OPERATION
Form 169441 57 Revision B
7.15 WINDROW TYPES
There are three basic criteria by which the quality
of a windrow is measured:
• Weight Distribution - heads and stalks
distributed evenly across full width of
windrow.
• Good Curing - a loose, open windrow for
better drying.
• Good Weatherability - a well-formed windrow
that supports heads off the ground and holds
together in extreme weather conditions.

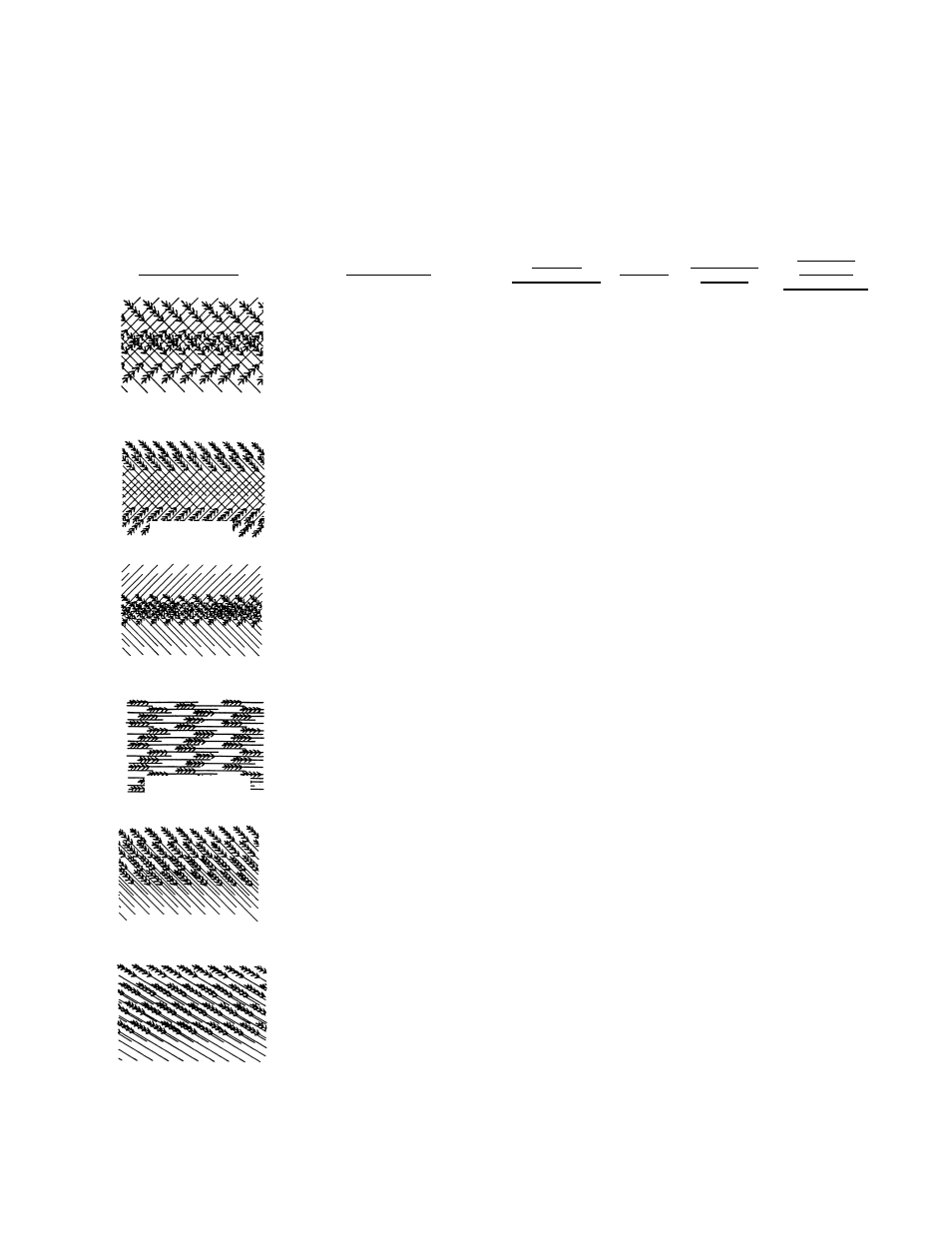

WINDROW TYPE DESCRIPTION
WEIGHT
DISTRIBUTION
CURING
WEATHER-
ABILITY
MACHINE
SETTING
GUIDELINES *
The most desirable form of windrow,
stalks are crossed and interwoven.
Heads are distributed across full width
of windrow. This windrow can be formed
by center delivery only.
GOOD GOOD EXCELLENT
Reel and ground
speed
approximately
equal.
Medium draper
speed.
Center Delivery
The stalk tips are crossed in the center,
and heads are in line along outside
edges. This windrow can be formed by
center delivery only.
FAIR FAIR FAIR
Low draper
speed.
Low header
angle.
Center delivery.
The stalk tips are lined along outside
edges of windrow, and heads are
crossed in center. This windrow can be
formed by center delivery only.
POOR FAIR POOR
High draper
speed.
High header
angle.
Center delivery.
The stalks are parallel to windrow, and
heads evenly distributed across width of
windrow. This windrow can be formed
by center delivery or end delivery.
GOOD GOOD GOOD
Medium draper
speed.
Medium header
angle.
Center or end
delivery.
The stalk tips are lined along one edge,
and heads are along opposite edge, 45º
to windrow perpendicular. This windrow
can be formed by end delivery or by
center delivery if the crop is leaning to
one side.
POOR FAIR POOR
Low reel speed.
Less aggressive
tine pitch.
End delivery or
center delivery if
crop is leaning.
The stalks are closer to parallel than the
45º windrow. Stalk tips are lined along
one edge with heads opposite, 75º to
windrow perpendicular. This windrow
can be formed by end delivery or by
center delivery if the crop is leaning to
one side.
FAIR GOOD FAIR
Low reel speed.
Less aggressive
tine pitch.
End delivery or
center delivery if
crop is leaning.
FANTAIL
75º DIAGONAL
45º DIAGONAL
PARALLEL
DOVETAIL
HERRINGBONE
