SECTION 8. MAINTENANCE AND SERVICING
Form 169441 130 Revision B
8.9.10 REEL DRIVE MOTOR - D50
DANGER
To avoid bodily injury from fall of raised reel,
always engage reel props before going under
raised reel for any reason.
8.9.10.1 Removal - Drive Motor
a. Lower header, raise reel, and engage reel props.
b. Remove reel drive cover. Refer to Section 8.9.5
Reel Drive Chain - D50.
c. Loosen chain (A), and remove drive sprocket (B).
Refer to Section 8.9.7 Reel Drive Sprocket - D50.
d. Disconnect hydraulic lines (C) at motor fittings.
Cap or plug open ports and lines.
e. Remove the four nuts and bolts (D), and remove
motor.
8.9.10.2 Installation - Drive Motor

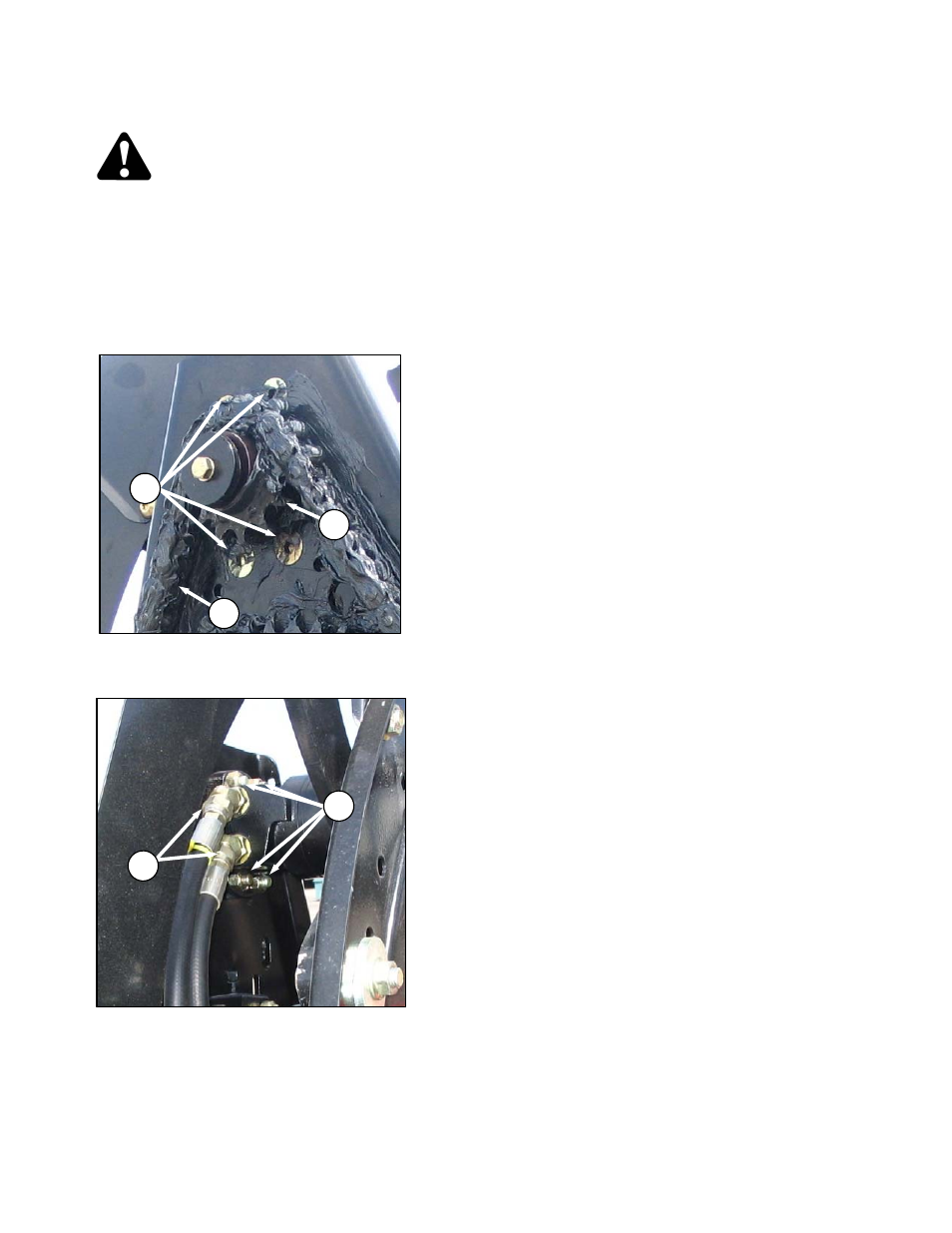

Refer to illustrations opposite.
a. Position hydraulic motor on motor mount, and
install four countersunk bolts (D). Torque to
75 ft·lbf (102 N·m).
b. Re-attach hydraulic lines (C) to motor.
c. Install sprocket (B) and chain (A). Refer to
Section 8.9.7 Reel Drive Sprocket - D50.
d. Re-attach reel drive cover. Refer to Section 8.9.5
Reel Drive Chain - D50.
D
C
A
B
D
