MacDon D60 Draper Headers - Manual (Page 138)

SECTION 8. MAINTENANCE AND SERVICING
Form 169441 136 Revision B

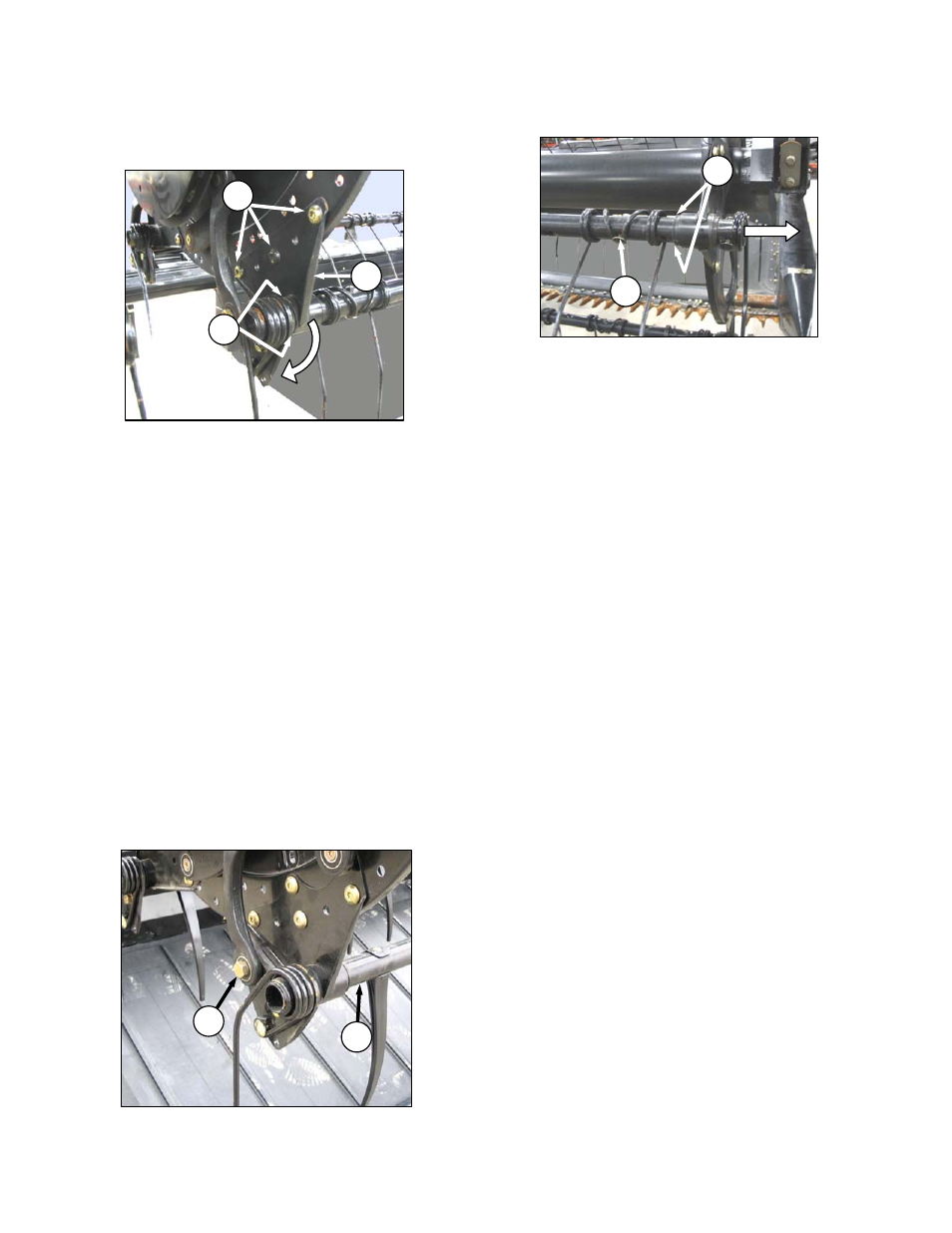

8.9.13.3 Bushing Removal - 5 Bat Pick-Up
Reels
a. Remove bushings at cam end disc as follows:
1. Remove bolts (A) securing arm (B) to disc.
IMPORTANT
Ensure tine tube is supported at all
times to prevent damage to the tube or
other components.
IMPORTANT
Note the hole locations in arm and
disc, and ensure bolts are re-installed
at original locations.
2. Remove bushing clamp as previously
described.
3. Rotate arm (B) clear of disc, and slide arm off
bushing. Remove bolt from tine next to arm
(or remove plastic finger) if required so that
arm can slide off bushing.
4. Remove bushing halves (C).
b. Remove bushings at center disc and left end disc
as follows:
1. Disconnect reel arm at cam end so that tine
tube is free to move. See step a.1.
2. Remove bolt (D) at on cam linkage so that
tine tube (E) is free to rotate.
3. Slide tine tube outboard to expose bushings.
Remove bolt (F) from tine (or remove plastic
finger) next to arm if required so that tube
can slide through arm.
4. Remove bushing halves (G).
(continued next page)
B
A
C
F
G
E
D
