MacDon D60 Draper Headers - Manual (Page 67)

SECTION 7. OPERATION
Form 169441 65 Revision B

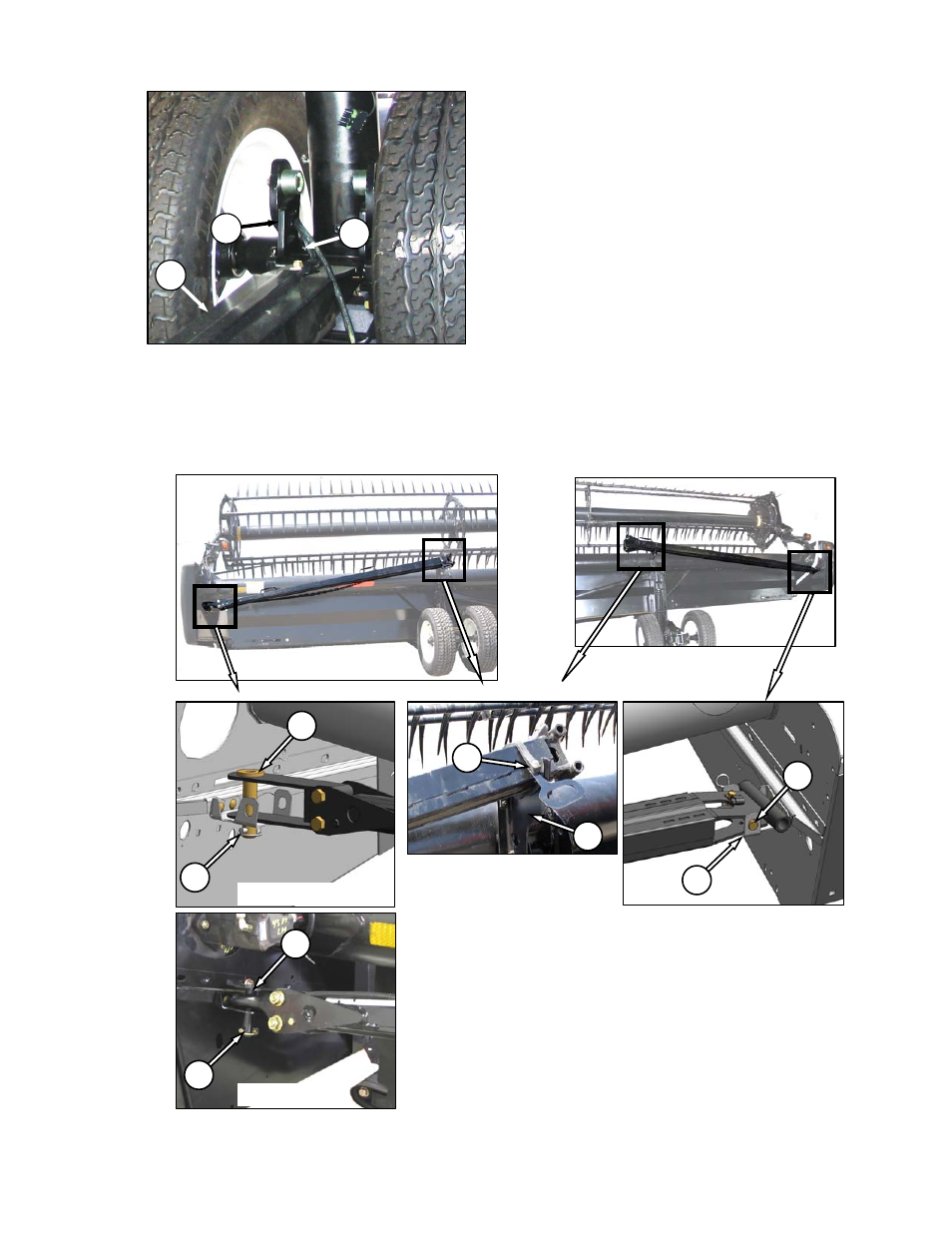

4. Remove clevis pin (F), and set aside for later
installation.
5. Push latch (G), and lift tow-bar (H) from hook.
Release latch.
c. Store tow-bar on header as follows:
1. Locate larger end of one section of tow-bar in
cradle (K) on header back-tube.
2. For clevis end of tow-bar, secure in support
(L) on endsheet with hitch pin (M). Secure
with lynch pin.
3. Install rubber strap (N) on cradle.
4. Similarly locate other section of tow-bar in
cradle at other end of header.
5. Secure tube end in support (O) with clevis pin
(P). Secure with hairpin.
6. Install rubber strap (N) on cradle.
d. Attach header to power unit. Refer to Windrower
Operator’s Manual.
IMPORTANT
Carrying the tow-bar on the header will
affect the header float. Refer to
Section 7.12.2 Header Float for
adjustment procedures.
H
F
G
PINTLE
M
L
N
K
P
O
M
L
CLEVIS
