SECTION 7. OPERATION
Form 169441 47 Revision B
e. Re-position left arm cylinder (Double and Single
Reel) as follows:
1. Loosen fitting (A) to allow it to rotate when
cylinder is re-positioned.
2. Remove the bolt (B), nut, and spacer (C) that
secures the cylinder to the reel arm.
3. Extend cylinder so that mounting hole lines
up with new location (D) as shown.
NOTE
Loosen a hose fitting to allow
movement of cylinder rod. Be sure to
re-tighten fitting after cylinder
installation.
4. Re-install bolt (B) and nut with spacer (C).
5. Tighten fitting.
f. Check reel clearance to back sheet, upper cross
auger (if installed) and reel braces.
g. Adjust reel tine pitch if required. Refer to Section
7.12.10 Reel Tine Pitch, or Section 8.9.1 Reel
Clearance to Cutterbar, for adjustment procedure.
C
B
D

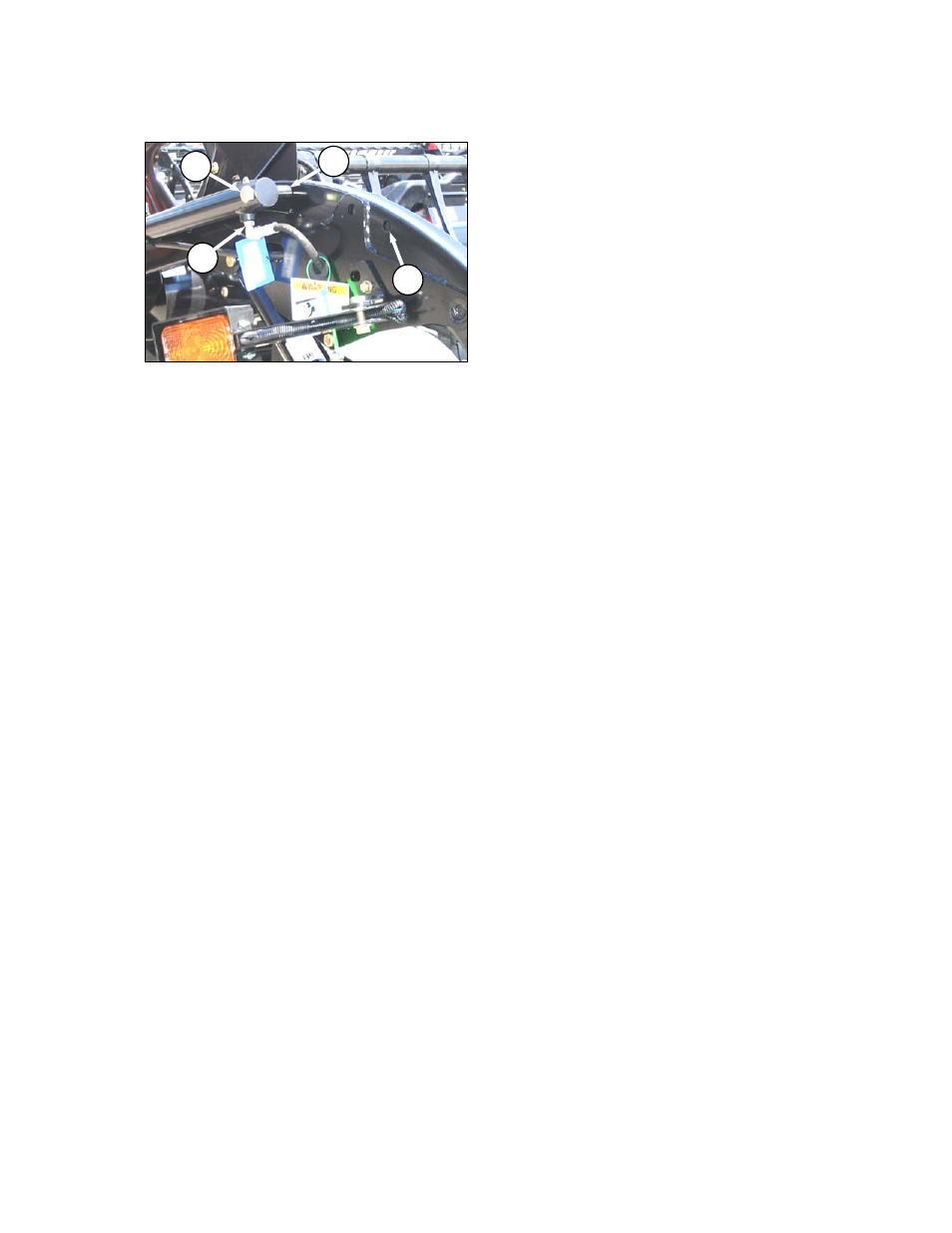

LEFT ARM - SINGLE and DOUBLE REEL
A
